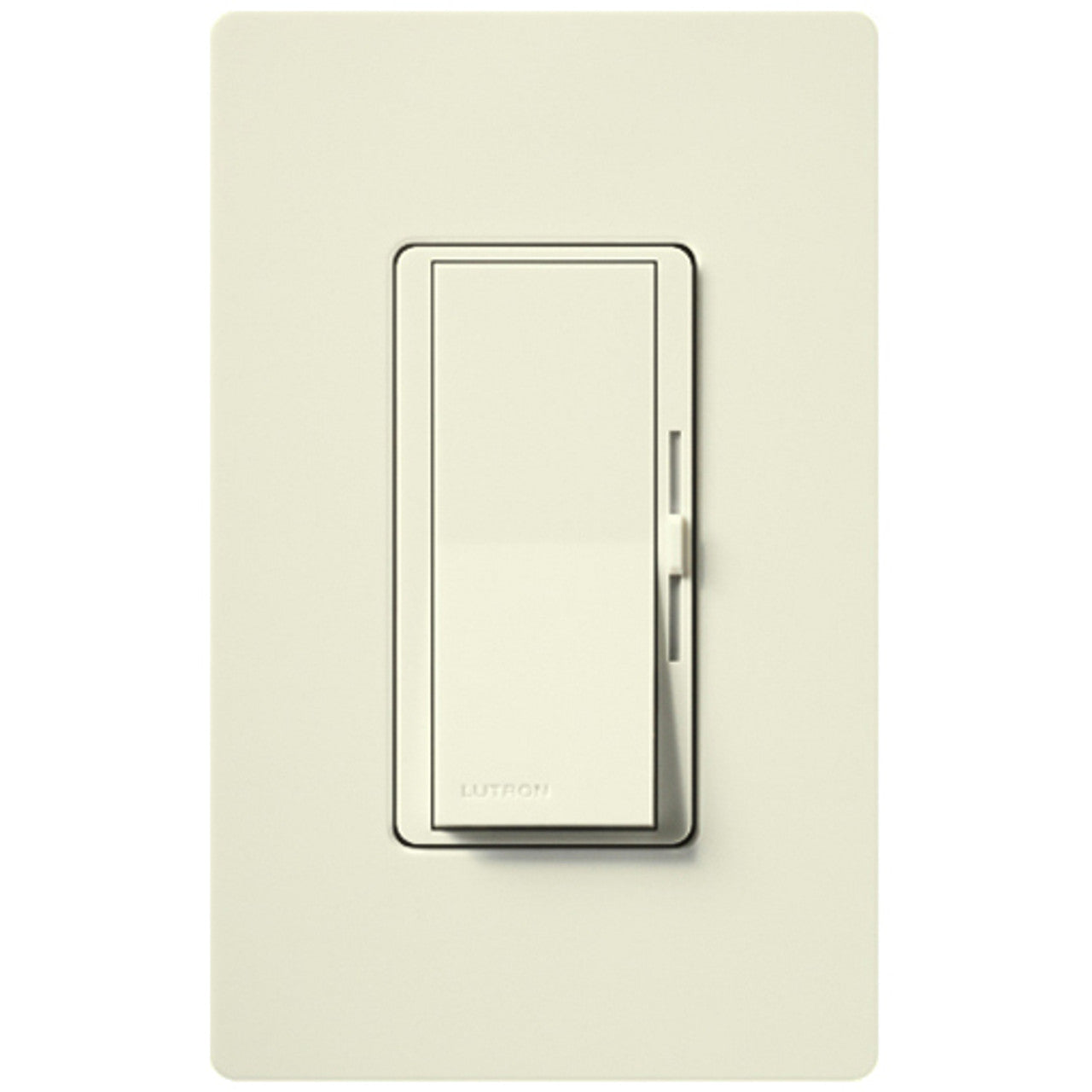

Lutron Diva Dimmer Switch 800 W, Biscuit (DVSCLV-10P-BI)

Product Overview

The Lutron DVSCLV-10P-BI is a single‑pole Diva dimmer switch rated for 800 W of dimmable load at 120 V, with a 1000 VA MLV rating and no neutral required. It mounts in a standard single‑gang wall box and is finished in Biscuit.

Suitable for residential lighting control applications including retrofits and new construction where a two‑wire installation is preferred.

Key Features

• 800 W dimmable load rating (120 V)
• 1000 VA MLV rating
• No neutral required — installs in existing 2‑wire boxes
• Single‑pole configuration
• Biscuit finish

What this dimmer does

The DVSCLV-10P-BI is a Diva-series wall dimmer for adjusting lighting levels on a single circuit. It uses phase‑control dimming and is specified for magnetic low‑voltage (MLV) loads and conventional incandescent/halogen loads at 120 V.

• Single‑pole dimmer for local control
• Phase‑control dimming suitable for MLV and resistive loads

Electrical and load requirements

Match the dimmer to the connected fixtures' load type and wattage. The DVSCLV-10P-BI is rated for 800 W of dimmable load at 120 V and lists a 1000 VA MLV rating. It does not require a neutral conductor.

• Voltage: 120 V
• Dimmable load: 800 W
• MLV rating: 1000 VA
• No neutral required — confirm the circuit meets any minimum load requirements for no‑neutral operation

Compatibility and installation notes

The control mounts in a standard single‑gang wall box. For multi‑location dimming, use appropriate companion controls designed for use with Diva series dimmers where required.

Before installation, confirm the connected load type (MLV, LED, halogen, incandescent) and total wattage are compatible with the dimmer's ratings.

• Mounts in a single‑gang wall box
• Single‑pole operation — not a 3‑way control by itself
• Verify minimum load requirements for no‑neutral installations

Finish and mounting

The control is finished in Biscuit to match common decorator wallplate palettes and installs behind a standard single‑gang wallplate.

• Finish: Biscuit
• Fits standard single‑gang wallplate

Before You Order

Verify that the connected fixtures' total wattage and load type are compatible with the dimmer's 800 W rating and 1000 VA MLV capability.

• Confirm DVSCLV-10P-BI is the correct SKU and finish (Biscuit)
• Verify fixture load type and total wattage
• Confirm single‑pole application or choose a compatible multi‑location solution if needed

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Lutron Diva Dimmer Switch 800 W, Biscuit (DVSCLV-10P-BI). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
