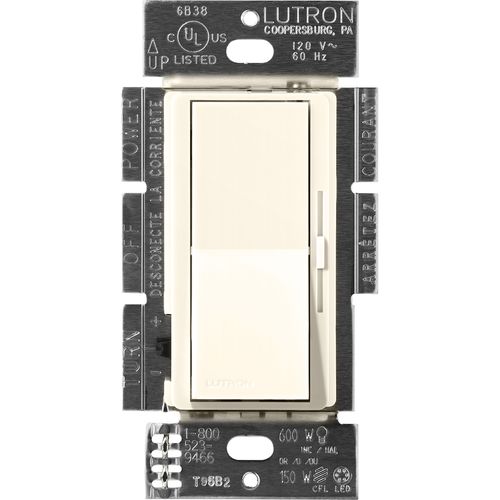

Lutron Diva 3-Wire Dimmer Switch 6 A, Biscuit (DVSCF-103P-277BI)

Product Overview

The Lutron DVSCF-103P-277BI is a Diva-series 3‑wire wall dimmer designed for ballast and LED‑driver loads. It requires a neutral connection, supports single‑pole or 3‑way wiring, and is finished in Biscuit.

Rated for 1000 W at 277 V (6 A), the DVSCF-103P-277BI mounts in a standard single‑gang box and is intended for lighting-control retrofits and new construction where low‑end, flicker‑free dimming of fluorescent and LED loads is required.

Key Features

• Handles up to 1000 W of dimmable load at 277 V (6 A rating).
• Controls 3‑wire fluorescent ballast and LED‑driver loads.
• Neutral connection required to support smooth, flicker‑free low‑end dimming.
• Single‑pole or 3‑way configuration for multi‑location dimming.
• Single‑gang wall box mounting; Biscuit finish.

What this dimmer controls

The DVSCF-103P-277BI is designed to dim 3‑wire fluorescent ballasts and LED drivers as well as conventional LED, halogen, or incandescent loads when wired appropriately. Its control electronics and neutral connection are intended to provide smooth dimming performance down to low light levels for compatible fixtures.

• Intended load types: 3‑wire fluorescent ballast, LED driver, LED, halogen, incandescent (match to fixture specifications).
• Not all lamp/driver combinations are guaranteed—match dimmer to the fixture/driver per manufacturer recommendations.

Electrical and load requirements

Use the DVSCF-103P-277BI where a 277 V supply is present. The dimmer is rated for 1000 W at 277 V, corresponding to a 6 A circuit rating.

• Voltage rating: 277 V.
• Load rating: 1000 W (6 A).
• Neutral conductor: required at the switch box.

Wiring, mounting and multi‑location operation

This is a 3‑wire control that supports single‑pole or 3‑way installations. It fits in a standard single‑gang wall box and can be used with compatible companion controls for multi‑location dimming.

• Configuration: Single‑pole or 3‑way (multi‑location dimming with companion controls).
• Wiring: 3‑wire (requires neutral).
• Mounting: Single‑gang wall box.

Finish and installation form factor

The DVSCF-103P-277BI is supplied in a Biscuit finish suitable for matching neutral/light interiors. Its form factor is the standard Diva wall dimmer intended for contractor installation in residential or commercial applications.

• Finish: Biscuit.
• Mounting footprint: standard single‑gang device.

Before You Order

Confirm the model number and that a neutral conductor is available at the switch box. Verify the combined wattage and load type of the fixtures to be controlled to ensure compatibility with the 1000 W (6 A) rating.

• Match dimmer load type to fixture/driver specifications (3‑wire ballast or LED driver).
• For multi‑location installations, plan for compatible companion controls.
• Confirm single‑gang box depth and wiring access before installation.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Lutron Diva 3-Wire Dimmer Switch 6 A, Biscuit (DVSCF-103P-277BI). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
