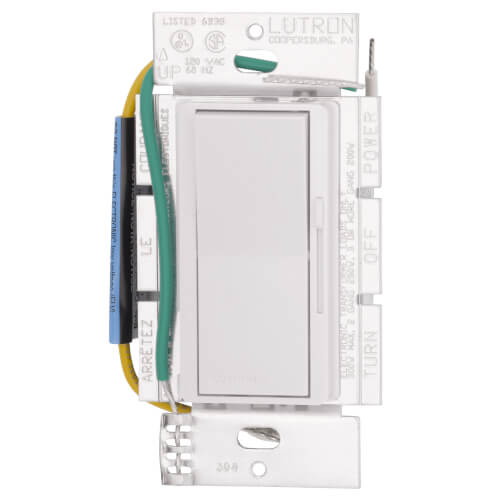

Lutron Diva Dimmer Switch 300 W, White (DVELV-300PH-WH)

Product Overview

The Lutron DVELV-300PH-WH is a single‑pole Diva dimmer rated for 300 W at 120 V with ELV (electronic low‑voltage) dimming. It requires a neutral connection and mounts in a standard single‑gang wall box.

Intended for use with compatible dimmable fixtures when the connected load and dimmer type are matched.

Key Features

• 300 W dimmable load rating at 120 V
• ELV dimming
• Neutral conductor required
• Single‑pole configuration
• Fits a standard single‑gang wall box; finish: white
• Part of the Lutron Diva series

What this dimmer does

The DVELV-300PH-WH provides variable control of a lighting load up to 300 W at 120 V using ELV dimming. Its single‑pole configuration controls lighting from one switch location.

• Controls a single lighting circuit up to the rated 300 W load
• Uses electronic low‑voltage (ELV) dimming

Compatibility and load matching

This model is specified for ELV dimming. Use only with fixtures and drivers listed as compatible with ELV control and ensure the total connected wattage does not exceed 300 W.

• Match dimmer type (ELV) to fixture/driver compatibility
• Keep total connected wattage at or below 300 W

Electrical and installation requirements

A neutral conductor is required at the switch box for installation. The control is single‑pole and mounts in a standard single‑gang wall box. It is for 120 V circuits.

• Requires neutral conductor in the switch box
• Single‑pole configuration — controls from one location
• Mounts in a standard single‑gang wall box
• For 120 V circuits

Product specifications

Key identifiers and technical details for ordering and reference.

• Brand: Lutron
• Model / SKU: DVELV-300PH-WH
• Series: Diva
• Load rating: 300 W
• Voltage: 120 V
• Dimming type: ELV
• Pole/configuration: Single‑pole
• Neutral: Required
• Finish: White
• UPC: 27557135924

Before You Order

Verify a neutral conductor is present at the switch location and confirm fixture compatibility with ELV dimming and the 300 W load rating.

• Confirm neutral is present in the switch box
• Confirm combined fixture wattage does not exceed 300 W

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Lutron Diva Dimmer Switch 300 W, White (DVELV-300PH-WH). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
