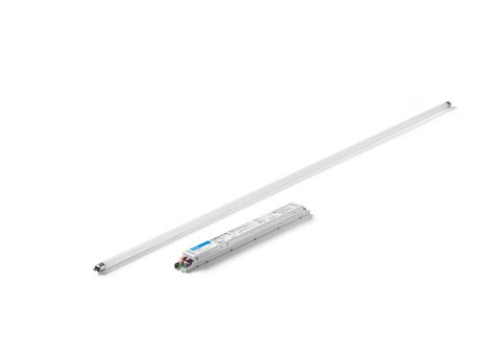

Lutron LED Ballast Retrofit Kit T5H 3500K (3LD3T5H-1M35-1)

Product Overview

The Lutron 3LD3T5H-1M35-1 is an LED ballast retrofit kit for single-lamp, 3 ft T5H fluorescent fixtures that replaces the fluorescent ballast with a 3-wire LED driver assembly.

It provides a 3500K color temperature and is intended to enable dimmable LED operation when used with compatible Lutron controls.

Key Features

• For T5H, 3 ft, single-lamp fluorescent fixtures
• 3500K color temperature
• 3-wire LED driver
• Dimmable to 1% with compatible Lutron controls
• Designed to reuse existing fixture housing and lamp sockets

What this kit does

The 3LD3T5H-1M35-1 replaces a fluorescent ballast with an LED driver assembly intended for single-lamp T5H fixtures 3 feet long, enabling dimmable LED operation while designed to reuse the existing housing and sockets.

• Converts a single-lamp T5H fluorescent fixture to use an LED driver assembly
• Designed to reuse existing fixture housing and lamp sockets

Typical applications

Suitable for retrofit projects that retain existing fixtures and sockets. Common use cases include commercial and institutional spaces currently using single-lamp 3 ft T5H fluorescents.

• Fluorescent-to-LED fixture retrofits
• Offices, schools, retail, warehouses
• Energy- and maintenance-reduction projects

Compatibility and dimming controls

The kit includes a 3-wire driver intended to pair with 3-wire Lutron dimmers. According to product information, when used with a compatible Lutron control the kit supports dimming down to 1%.

• 3-wire driver intended to pair with 3-wire Lutron dimmers
• Dimming: down to 1% when paired with compatible Lutron controls

Installation and matching requirements

Verify the kit matches the fixture's lamp type, length and lamp count before ordering and installation. The kit is specifically for single-lamp T5H fixtures at 3 ft length and is designed for use with the existing socket and housing.

• Match to lamp type: T5H
• Match to lamp length: 3 ft
• Match to lamp count: 1

Key specifications

Reference the model facts below when selecting or specifying this SKU.

• Brand: Lutron
• Model / SKU: 3LD3T5H-1M35-1
• Product type: Ballast & LED Driver (LED Retrofit Kit)
• Wiring: 3-Wire (Ballast / LED-Driver)
• Lamp type: T5H
• Lamp length: 3 ft
• Lamp count: 1
• Color temperature: 3500K
• Dimming range: 1% (with compatible Lutron control)
• UPC: 784276316330

Before You Order

Confirm the kit matches the existing fixture's lamp type, lamp length and lamp count before ordering.

• Verify the fixture uses a single 3 ft T5H lamp
• If you require dimming to 1%, plan to use a compatible 3-wire Lutron dimmer
• Confirm the model number 3LD3T5H-1M35-1 matches project requirements

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Lutron LED Ballast Retrofit Kit T5H 3500K (3LD3T5H-1M35-1). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
