Lutron LED Ballast Retrofit Kit T5 4000K, Case of 24 (3LD2T5-1M40-24)

Product Overview

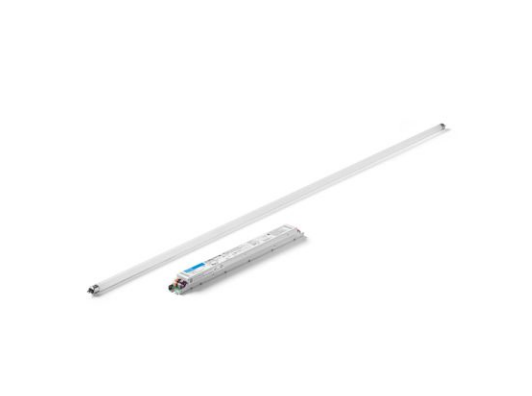

The Lutron 3LD2T5-1M40-24 is a T5 LED ballast retrofit kit for a 2 ft, one-lamp fluorescent fixture. It is supplied as a case of 24 and reuses the existing fixture housing and lamp sockets.

The kit provides 4000K light and supports dimming to 1% when paired with a compatible Lutron control. Its 3-wire driver pairs with 3-wire Lutron dimmers.

Key Features

• For a 2 ft T5 fluorescent fixture with one lamp
• Converts an existing fluorescent fixture to dimmable LED
• 4000K color temperature
• Dimming to 1% with a compatible Lutron control
• 3-wire driver pairs with 3-wire Lutron dimmers
• Reuses the existing fixture housing and lamp sockets
• Case of 24

Fixture Fit and Retrofit Configuration

The 3LD2T5-1M40-24 is rated for a T5 lamp, 2 ft length, and one-lamp fixture. It is designed to retrofit an existing fluorescent fixture while reusing the fixture housing and lamp sockets.

• Lamp type: T5
• Lamp length: 2 ft
• Lamp count: 1

Dimming and Lutron Control Pairing

This retrofit kit has a 3-wire driver and dims to 1% with a compatible Lutron control. The driver pairs with 3-wire Lutron dimmers.

Applications

The kit is listed for fluorescent-to-LED fixture retrofit projects in offices, schools, retail spaces, and warehouses. It is also identified for energy- and maintenance-reduction projects.

Before You Order

Match the kit to the existing fixture's lamp type, length, and lamp count before ordering. Confirm the model number and quantity required.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Lutron LED Ballast Retrofit Kit T5 4000K, Case of 24 (3LD2T5-1M40-24). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
