Lighting Spot 26 5 in. 13W 0-10V 5CCT Selectable (27K/30K/35K/40K/50K) Adjustable Gimbal White LED Recessed Downlight LSL-567W-010-5CCT
Description
Product Overview

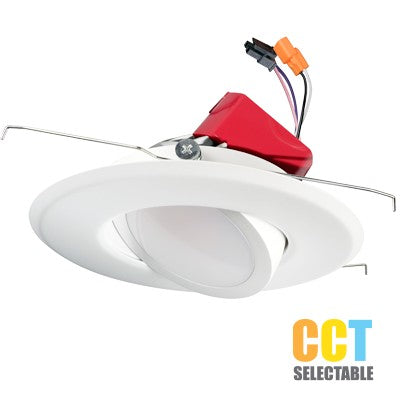

The Lighting Spot 26 LSL-567W-010-5CCT is a white, 5-in. LED recessed downlight with an adjustable gimbal. It is rated at 13W and listed with a light output range of 900–1,010 lumens.
This model offers five selectable color temperatures from 2700K to 5000K and is specified for 0-10V dimming. Its listed applications include residential, multifamily, retail, office and light commercial ceiling lighting.
Key Features
- 5-in. LED recessed downlight with adjustable gimbal
- 13W with listed output of 900–1,010 lumens
- Five selectable CCT settings: 2700K, 3000K, 3500K, 4000K and 5000K
- 0-10V dimming; white finish
- Model: LSL-567W-010-5CCT
Output and Selectable Color Temperature
The LSL-567W-010-5CCT is rated at 13W and listed with an output range of 900–1,010 lumens. Its selectable CCT settings are 2700K, 3000K, 3500K, 4000K and 5000K.
Adjustable Gimbal and Typical Applications
This recessed downlight has an adjustable gimbal trim and a white finish. Listed applications include residential and multifamily lighting, retail and office spaces, light commercial projects, and new construction or remodel work.
0-10V Dimming
The model is specified for 0-10V dimming. Confirm that the planned control system and other project components are suitable for this dimming method before ordering or installation.
Before You Order
Confirm the model number and quantity required before ordering. Verify that the fixture size, dimming method and recessed-lighting components suit the intended project.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Lighting Spot 26 5 in. 13W 0-10V 5CCT Selectable (27K/30K/35K/40K/50K) Adjustable Gimbal White LED Recessed Downlight LSL-567W-010-5CCT. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Lighting Spot 26 |
|---|---|
| Model / SKU | LSL-567W-010-5CCT |
| Product Type | LED recessed downlight |
| Size | 5 in. |
| Wattage | 13W |
| Lumens | 900–1,010 lumens |
| Selectable CCT | 2700K / 3000K / 3500K / 4000K / 5000K |
| Dimming | 0-10V |
| Trim | Adjustable gimbal |
| Finish | White |
| Master Pack Quantity | 12 |
