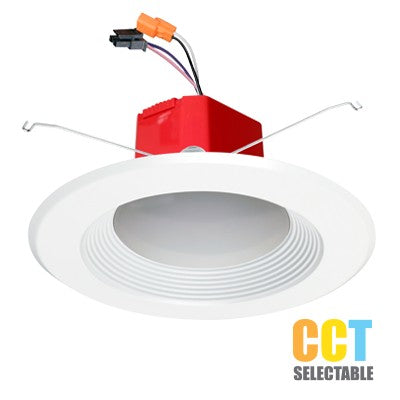

Lighting Spot 26 5 in. 13W 0-10V 5CCT Selectable (27K/30K/35K/40K/50K) Round Baffle White LED Recessed Downlight LSL-563W-010-5CCT

(No Ratings)
SKU: LSL-563W-010-5CCT
Price: $53.91
Free shipping on orders over $1,500

Description

Product Overview

The Lighting Spot 26 LSL-563W-010-5CCT is a 5 in. round baffle LED recessed downlight specified for residential, multifamily, retail, office, and light commercial ceiling lighting.

This integrated downlight delivers 13W of power with a listed light output of 900–1010 lumens, 5CCT selectable color temperatures (2700K, 3000K, 3500K, 4000K, 5000K), and 0–10V dimming compatibility. The fixture finish is white.

Key Features

  • Model: LSL-563W-010-5CCT
  • Size: 5 in. round baffle trim
  • Power: 13W
  • Light output: 900–1010 lm
  • Color temperature: 5CCT selectable — 2700K / 3000K / 3500K / 4000K / 5000K
  • Dimming: 0–10V
  • Finish: White
  • Case quantity: 12

What this luminaire is for

The LSL-563W-010-5CCT is an integrated recessed downlight intended for general ceiling illumination in residential, multifamily, retail, office, and light commercial projects. Its round baffle trim offers a controlled, low-glare appearance suitable for corridors, living spaces, kitchens, retail aisles, and tenant-improvement areas.

  • Typical uses: new construction, remodels, retrofits, contractor stock and service replacement
  • Trim style: round baffle for reduced glare and a clean ceiling appearance

Light output and color temperature

This fixture is rated at 13W with a listed lumen output range of 900–1010 lumens. Color temperature is selectable via the built-in 5CCT option.

  • Lumen range: 900–1010 lm (manufacturer listing)
  • Selectable CCT options: 2700K, 3000K, 3500K, 4000K, 5000K — choose the CCT on the fixture per project requirements

Electrical and dimming requirements

The LSL-563W-010-5CCT is specified with 0–10V dimming. Confirm the building's dimming control system and driver compatibility before installation.

  • Dimming method: 0–10V
  • Power: 13W (electrical load shown as 13W)

Mounting, trim, and compatibility notes

The listing identifies the unit as a 5 in. downlight with round baffle trim in a white finish. Verify housing and ceiling type compatibility for recessed installations and confirm trim/housing matching for remodel or new-construction housings.

  • Listed trim: round, baffle
  • Finish: white
  • Confirm housing compatibility, ceiling cutout, and local code requirements prior to installation

Before You Order

Confirm the model number and quantity required before ordering. Verify housing compatibility, ceiling cutout, dimming system (0–10V) and local code requirements for your project.

  • Ensure the selected CCT is set or ordered per project needs — fixture includes 5CCT selectable option.
  • Confirm compatibility with the existing or specified recessed housing and mounting method.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Lighting Spot 26 5 in. 13W 0-10V 5CCT Selectable (27K/30K/35K/40K/50K) Round Baffle White LED Recessed Downlight LSL-563W-010-5CCT. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandLighting Spot 26
SKULSL-563W-010-5CCT
Product typeLED Recessed Downlight
Size5 in.
Wattage13W
Lumens900–1010 lm
Color temperature5CCT selectable — 2700K / 3000K / 3500K / 4000K / 5000K
Dimming0–10V
Trim / shapeRound, baffle
FinishWhite
Master Pack Quantity12
