Lighting Spot 26 5 in. 13W 0-10V 5CCT Selectable (27K/30K/35K/40K/50K) Round Smooth White LED Recessed Downlight LSL-560W-010-5CCT
Description
Product Overview

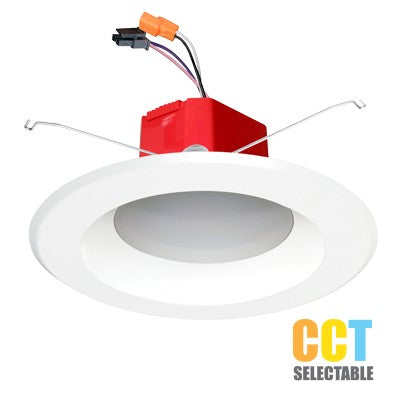

Model LSL-560W-010-5CCT is a 5 in. round LED recessed downlight with a smooth white trim, designed for residential, multifamily, retail, office, and light commercial ceiling applications.
The fixture delivers 900–1010 lumens at a 13W electrical load, offers five selectable CCT settings (2700K, 3000K, 3500K, 4000K, 5000K), and supports 0-10V dimming.
Key Features
- Model: LSL-560W-010-5CCT
- Size: 5 in. round (listed)
- Power: 13W
- Light output: 900–1010 lumens
- CCT: 5CCT selectable — 27K / 30K / 35K / 40K / 50K
- Dimming: 0-10V
- Finish: White, smooth round trim
- Case quantity (listed): 12
What this light is for
The LSL-560W-010-5CCT is specified as a 5 in. round recessed downlight intended for ceiling illumination in residential, multifamily, retail, office, and light commercial projects.
Use it for new construction, remodels, tenant improvements, ceiling retrofits, or as contractor/replacement stock where a compact 5 in. LED downlight is required.
- Typical applications: residential recessed lighting, commercial tenant improvements, remodels and retrofits
- Trim style: round smooth white — suited to modern ceilings and general ambient lighting
Light output and electrical
The fixture is rated at 13W and produces a listed lumen range of 900–1010 lm, providing an efficient output for general-purpose downlighting.
Dimming is provided via 0-10V control, which is common in commercial and specified residential dimming systems.
- Wattage: 13W
- Lumen range: 900–1010 lm
- Dimming: 0-10V
Color temperature selection and controls
This model includes a 5CCT selectable feature that lets installers choose the fixture color temperature on-site.
Selectable CCT options are 2700K, 3000K, 3500K, 4000K, and 5000K, allowing matching to project lighting design or occupant preference.
- 5CCT selectable: 27K / 30K / 35K / 40K / 50K
- Select CCT during installation per fixture — confirm chosen CCT for consistent room appearance
Compatibility and installation notes
Confirm fixture size, housing compatibility, dimming method, and local electrical/code requirements before installation.
Verify that the selected housing or ceiling type accepts a 5 in. round module and that the 0-10V dimming system is compatible with site controls.
- Verify housing, trim, module and accessory compatibility with the ceiling type
- Confirm voltage, dimming control wiring, and local code requirements prior to installation
Before You Order
Confirm the model number and quantity required before ordering. Verify housing compatibility, required cutout size, selected CCT, and that your dimming control is 0-10V compatible.
- Confirm LSL-560W-010-5CCT is the correct SKU for your application
- Verify chosen CCT and consistent selection across fixtures for uniform lighting
- Check housing, trim, and ceiling type compatibility and local code requirements
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Lighting Spot 26 5 in. 13W 0-10V 5CCT Selectable (27K/30K/35K/40K/50K) Round Smooth White LED Recessed Downlight LSL-560W-010-5CCT. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Lighting Spot 26 |
|---|---|
| SKU | LSL-560W-010-5CCT |
| Product type | LED Recessed Downlight |
| Size | 5 in. |
| Wattage | 13W |
| Lumens | 900–1010 lm |
| Color temperature | 5CCT selectable (2700K / 3000K / 3500K / 4000K / 5000K) |
| Dimming | 0-10V |
| Trim Shape | Round, Smooth |
| Finish | White |
| Master Pack Quantity | 12 |
