Lew Electric SH-6263-58-A Aluminum Floor Box

(No Ratings)
SKU: SH-6263-58-A
Price: $169.00
Free shipping on orders over $1,500

Description

Product Overview

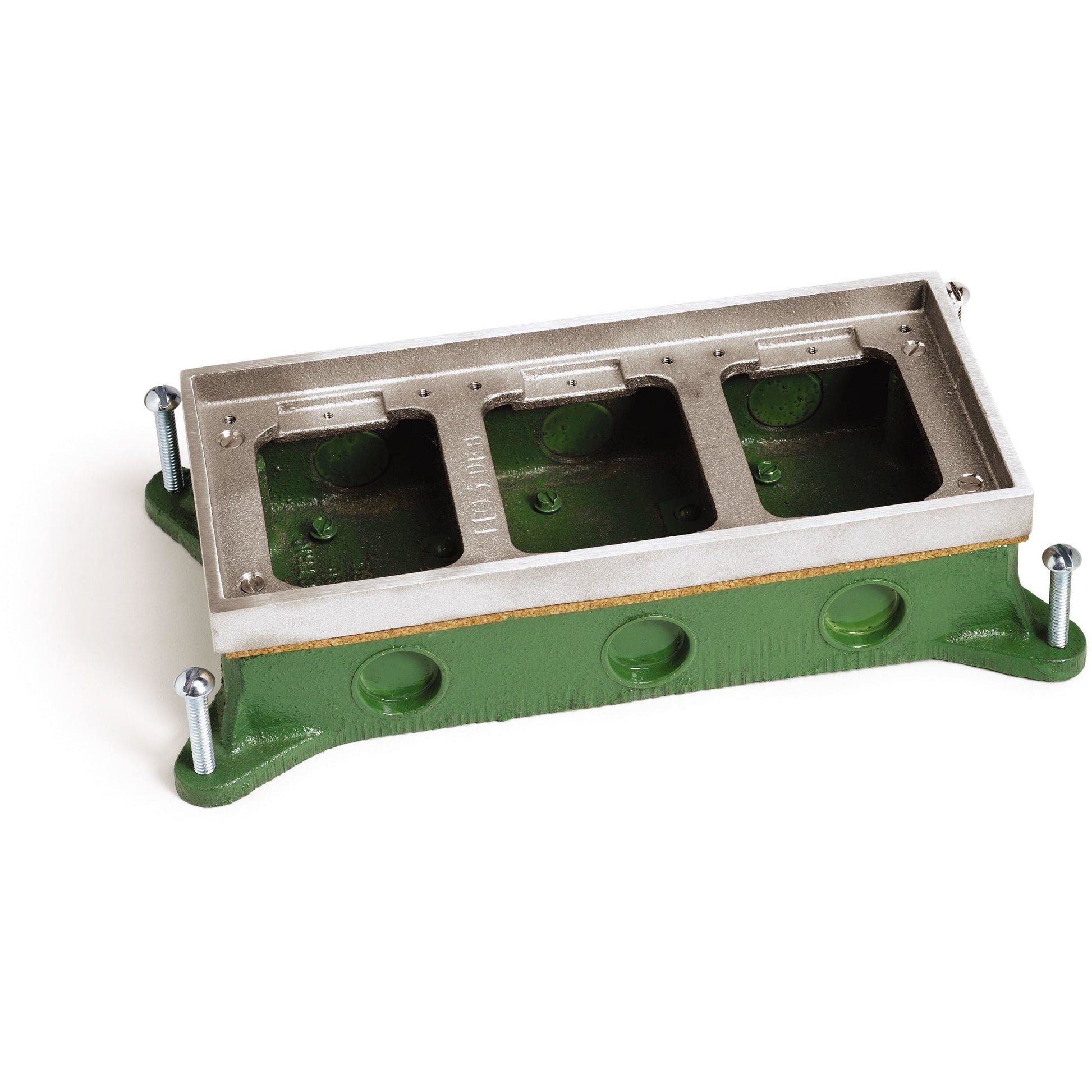

Lew Electric SH-6263-58-A is a three-gang, shallow, rectangular floor box designed for commercial concrete and tile floor installations. It pairs a cast iron box body with a brushed aluminum tile frame and solid aluminum cover for a durable finished surface.

The SH-6263-58-A provides a single floor location for up to three duplex receptacles and is intended for cost-sensitive, high-volume commercial applications such as offices, conference rooms, lobbies, and retail spaces.

Key Features

  • Three-gang (3G) shallow rectangular concrete floor box for up to three duplex outlets
  • Cast iron box body engineered to withstand concrete-pour loads during rough-in
  • Brushed solid aluminum tile frame and cover for a durable, corrosion-resistant finished surface
  • Rated for finished floors of concrete and tile
  • Lightweight aluminum components help reduce installed cost while matching finished interior floors

What this floor box does

The Lew Electric SH-6263-58-A is a three-gang shallow floor box that provides a single in-floor location for multiple duplex receptacles. It is built for rectangular concrete installations where finished flooring will be concrete or tile.

  • Delivers up to three duplex outlet positions at one floor location
  • Shallow profile designed for applications with limited depth

Recommended applications

Use this floor box where commercial-grade durability and a finished aluminum appearance are required. Typical installations include office spaces, conference rooms, lobbies, and retail environments finished with concrete or tile.

  • Cost-sensitive, high-volume commercial floor installations
  • Floor-mounted power locations in finished concrete or tile

Compatibility and installation notes

Confirm the rectangular concrete rough opening matches the SH-6263-58-A footprint before ordering. Ensure the branch circuit and chosen receptacle devices are appropriate for the installation and meet local electrical code requirements.

  • Check rough opening against the rectangular concrete footprint
  • Verify branch circuit capacity and receptacle compatibility prior to install

Materials and durability

The box body is cast iron to resist concrete-pour loads during rough-in. The tile frame and cover are solid brushed aluminum, offering a lighter, corrosion-resistant finished surface that matches interior floors and withstands high-traffic areas.

  • Cast iron box body for pour strength
  • Aluminum tile frame and cover for corrosion resistance and finished appearance

Technical specifications

The following SKU-specific specifications identify the SH-6263-58-A product attributes. Use these details for planning and product selection.

  • Brand: Lew Electric
  • Model / SKU: SH-6263-58-A
  • UPC: 784149002216
  • Product family: 1100 Series Rectangular Boxes, Covers and Flanges
  • Application: Commercial
  • Floor box type: Rectangular Concrete
  • Finish color: Aluminum (brushed tile frame and cover)
  • Box material: Cast iron (body); aluminum (frame/cover)
  • Box capacity: 3G (three-gang)
  • Service capacity: Triple
  • Compatible floor finishes: Concrete, Tile
  • Shipping weight: 6.5 lb

Before You Order

Confirm the model number and quantity required before ordering. Verify the rough opening and branch-circuit requirements at the project site to ensure the SH-6263-58-A matches the installation and intended receptacles.

  • Confirm rectangular concrete rough opening matches the product footprint
  • Verify branch-circuit ampacity and receptacle device compatibility
  • Confirm finish (concrete or tile) and planned cover/faceplate aesthetics

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Lew Electric SH-6263-58-A Aluminum Floor Box. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandLew Electric
SKUSH-6263-58-A
UPC784149002216
Product family1100 Series Rectangular Boxes, Covers and Flanges
ApplicationCommercial
Floor box typeRectangular Concrete
Finish colorAluminum (brushed)
Box materialCast iron body; aluminum frame and cover
Box capacity3G (three-gang)
Service capacityTriple
Compatible floor finishesConcrete, Tile
Shipping weight6.5 lb
