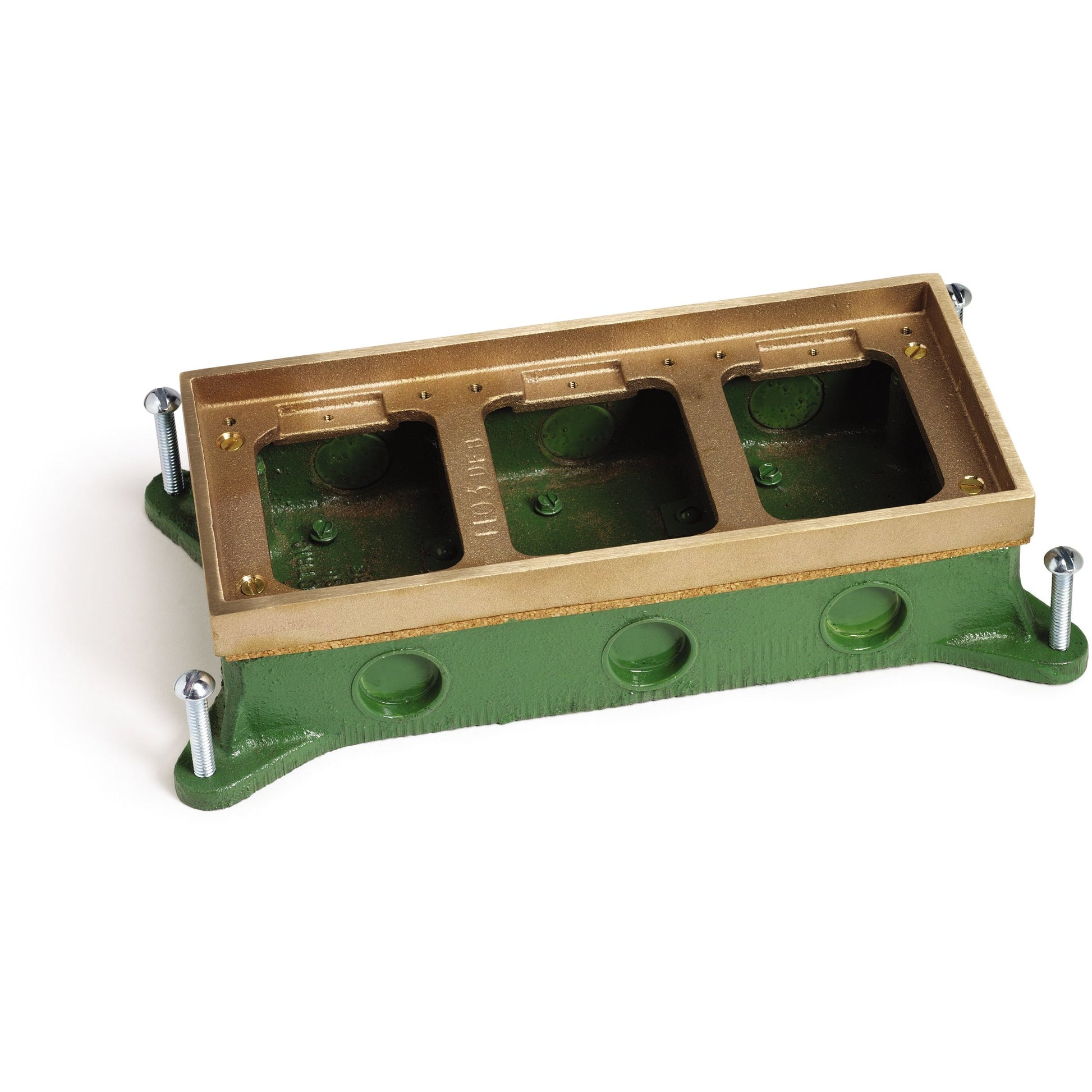

Lew Electric SH-6263-58 Brass Floor Box
Description
Product Overview
Lew Electric SH-6263-58 is a three-gang, shallow, semi-adjustable rectangular floor box designed for commercial concrete and tile floor installations. It combines a cast iron body for rough-in durability with a solid brass tile frame and cover for a finished decorative appearance.
This SKU provides a single floor location capable of delivering three duplex receptacles (3-gang capacity), intended for upscale offices, lobbies, conference rooms, retail spaces, and similar commercial or residential settings where the floor outlet is a visible design element.
Key Features
- Solid brass top and face for a decorative, durable finished surface
- Cast iron box body built to withstand concrete pour loads during rough-in
- Three-gang capacity (3G) to support three duplex outlets at one floor location
- Rated for concrete and tile floor finishes
- Rectangular concrete floor-box footprint with semi-adjustable shallow depth
What this floor box does
The Lew Electric SH-6263-58 provides a finished floor outlet point that accommodates three duplex receptacles at a single location. Its design separates the structural box that is set during rough-in from the solid brass tile frame and cover that become the visible finished element on the floor surface.
- Delivers three duplex outlets (3-gang capacity)
- Semi-adjustable shallow box for typical concrete and tile floor depths
- Intended for surface plug access through a decorative brass cover
Recommended applications
Use this floor box where a durable, decorative floor outlet is required and the installation is finished over concrete or tile. Typical applications include upscale offices, conference rooms, lobbies, retail spaces, and residences or historic interiors where appearance matters.
- Commercial offices and conference rooms
- Retail storefronts and lobbies
- Residential or historic interiors requiring a brass finished detail
Materials and finish
The product combines a cast iron box body with a solid brass face and tile frame. The cast iron body provides strength for concrete pour and rough-in conditions; the brass cover serves as the finished decorative surface for high-traffic floors.
- Box material: cast iron
- Finish color: brass
- Brass cover intended to match finished interior floors and provide a durable surface
Compatibility and installation notes
Confirm the rectangular concrete footprint and rough opening match the SH-6263-58 before ordering. Verify that the branch circuit and chosen receptacle devices are appropriate for the intended service and local electrical code requirements.
- Compatible floor finishes: concrete, tile
- Check rough opening against rectangular concrete footprint
- Confirm branch circuit and receptacle compatibility prior to installation
Technical specifications
The following specifications summarize the verified product data for the single SKU SH-6263-58.
- Brand: Lew Electric
- Model / SKU: SH-6263-58
- UPC: 784149212158
- Product family: 1100 Series Rectangular Boxes Covers and Flanges
- Product type: Rectangular concrete floor box (floor box)
- Box capacity: 3G (three-gang)
- Service capacity: Triple
- Plug connection: Surface
- Box material: Cast iron
- Finish color: Brass
- Compatible floor finishes: Concrete, Tile
- Shipping weight: 7 lb
Before You Order
Confirm the exact model number (SH-6263-58) and quantity required before ordering. Verify the rough opening and rectangular concrete footprint will match your site conditions and that the intended receptacles and branch circuit meet project electrical requirements.
- Confirm rough opening matches rectangular concrete footprint
- Verify compatible floor finish (concrete or tile)
- Ensure chosen receptacles and branch circuit comply with local electrical code
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Lew Electric SH-6263-58 Brass Floor Box. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Lew Electric |
|---|---|
| SKU | SH-6263-58 |
| UPC | 784149212158 |
| Product Type | Floor Box (Rectangular Concrete) |
| Series | 1100 Series Rectangular Boxes Covers and Flanges |
| Application | Commercial |
| Box Material | Cast Iron |
| Finish | Brass |
| Box Volume | 3G (three-gang) |
| Service Capacity | Triple |
| Plug Connection | Surface |
| Compatible Floor Finishes | Concrete, Tile |
| Shipping Weight | 7 lb |
