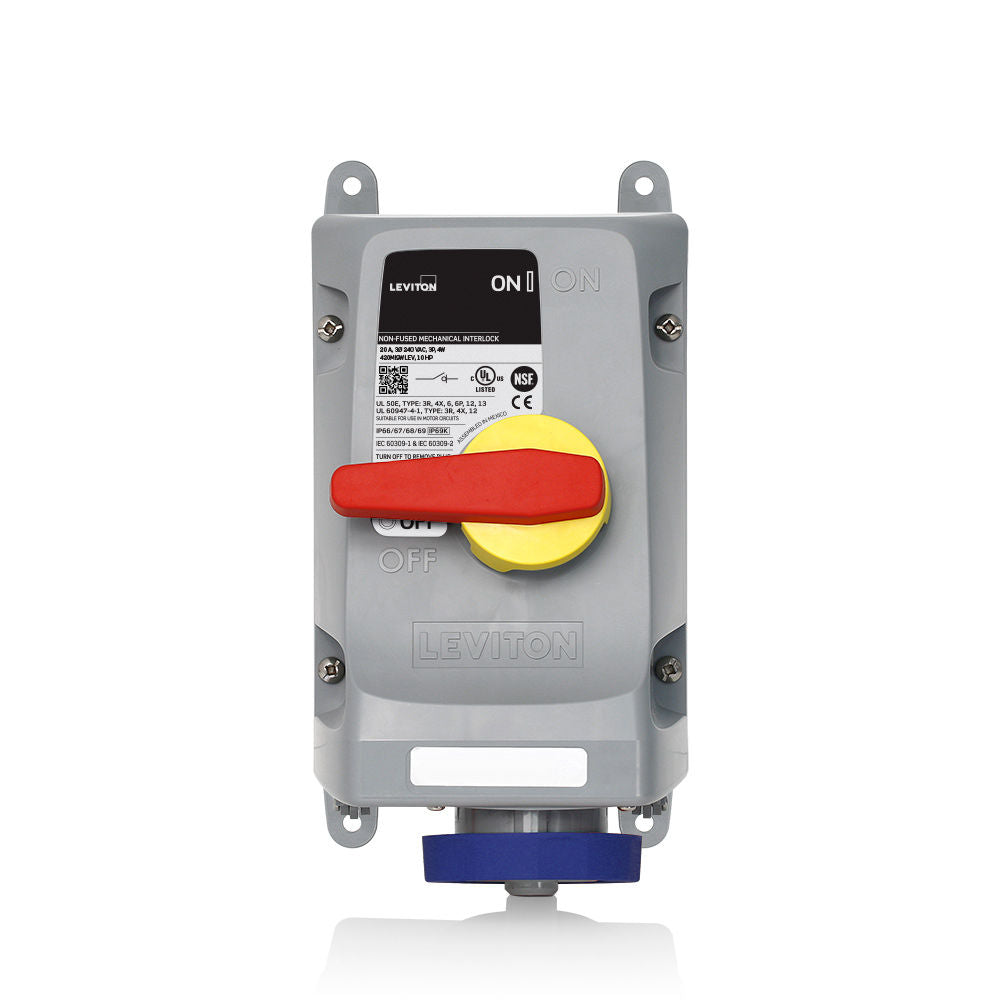

Leviton 420MI9WLEV Pin & Sleeve Device
Description
Product Overview
The Leviton 420MI9WLEV is a pin & sleeve device featuring a 20A mechanical interlock in a blue enclosure. It is supplied by Lumera Electric as a genuine Leviton wiring device for residential, commercial, and industrial electrical applications.
This single-SKU product (420MI9WLEV) offers mechanical interlock functionality to control mating and unmating sequences of connected equipment and is packaged as an individual unit (EA).
Key Features
- 20A mechanical interlock protection
- Pin & sleeve connector format for secure mating
- Blue housing color for identification
- Genuine Leviton product (Model 420MI9WLEV, UPC 07847767592)
- Unit weight: 11.51 lb
What this device does
The Leviton 420MI9WLEV is a pin & sleeve device with a 20-amp mechanical interlock. The mechanical interlock feature enforces a specific sequence for connecting and disconnecting mating components to help prevent inadvertent switching or unsafe disconnection.
- Pin & sleeve format provides a keyed, secure connection between plug and receptacle.
- Mechanical interlock requires proper sequence to mate or unmate, improving operational safety.
Where to use it
This product is intended for residential, commercial, and industrial electrical applications where a durable, keyed connection and mechanical interlock are required. The blue color provides visual identification for circuit or application grouping.
- Suitable for applications needing a 20A pin & sleeve connection.
- Used where controlled connection/disconnection sequencing is desired.
Key specifications
Below are the verified product details available for this SKU. Confirm compatibility with your system and installation requirements before selecting this device.
- Manufacturer: Leviton
- Model / Item #: 420MI9WLEV
- Type: Pin & Sleeve Device
- Function: 20A Mechanical Interlock
- Color: Blue
- UPC: 07847767592
- Unit weight: 11.51 lb
- Unit of measure: EA
Ordering and selection notes
Confirm the model number and quantity required before ordering. Ensure the 20A mechanical-interlock rating, pin configuration, and enclosure color meet your project specifications.
- This page represents a single SKU: 420MI9WLEV.
- Verify compatibility with mating plugs, cords, and panel cutouts prior to purchase.
Before You Order
Confirm the model number (420MI9WLEV) and that the 20A mechanical-interlock pin & sleeve configuration matches your electrical and mechanical requirements before placing an order.
- Check mating plug compatibility and required pin configuration.
- Verify mounting, enclosure, and wiring requirements against job specifications.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Leviton 420MI9WLEV Pin & Sleeve Device. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Leviton |
|---|---|
| SKU | 420MI9WLEV |
| Type | Pin & Sleeve Device |
| Function | 20A Mechanical Interlock |
| Finish | Blue |
| UPC | 07847767592 |
| Unit of Measure | EA |
| Weight | 11.51 lb |
