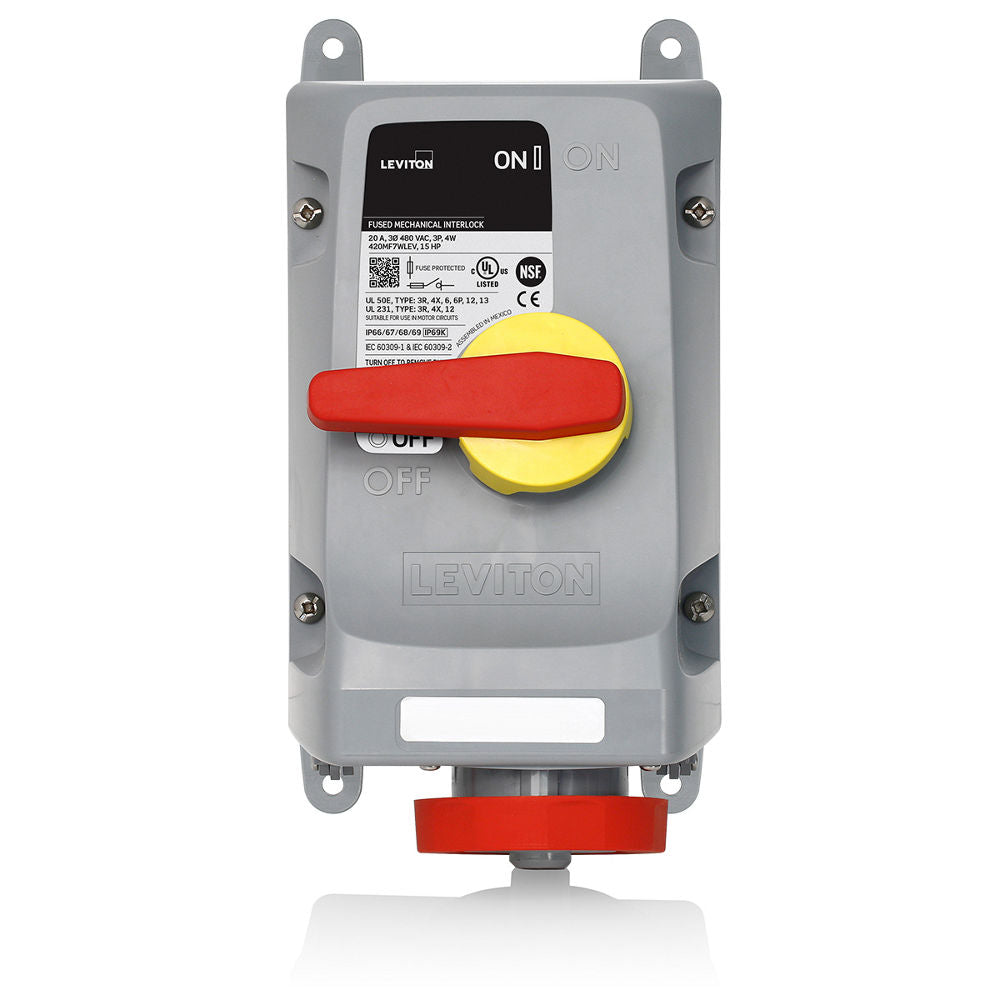

Leviton 420MF7WLEV Pin & Sleeve Device
Description
Product Overview
The Leviton 420MF7WLEV is a pin & sleeve device with a 20A mechanical interlock and red finish. It is a genuine Leviton wiring device intended for residential, commercial, and industrial electrical applications.
This SKU is supplied as a single unit (EA). UPC: 07847795237. Unit weight: 11.51 lb.
Key Features
- 20A mechanical interlock design
- Pin & sleeve configuration for secure power connections
- Red housing/finish for visual identification
- Genuine Leviton product and part number 420MF7WLEV
Function
The Leviton 420MF7WLEV is a pin & sleeve device that provides a mechanically interlocked 20 amp connection. The mechanical interlock is designed to control mating and unmating sequences to help ensure safe connection and disconnection of power.
- 20A mechanical interlock — controls plug engagement/disengagement
- Pin & sleeve format — provides polarized, secure electrical connection
Typical Applications
This Leviton pin & sleeve device is intended for use across residential, commercial, and industrial settings where a 20A mechanically interlocked connection is required and where a red device color is specified for identification.
- General wiring-device applications requiring secure, interlocked connections
- Situations where color-coded devices (red) are used for visual identification
Key Specifications
Refer to these verified identifiers and measurements for procurement and specification.
- Manufacturer: Leviton
- Model / Item #: 420MF7WLEV
- Product type: Pin & Sleeve Device
- Rating: 20A (mechanical interlock)
- Finish / color: Red
- UPC: 07847795237
- Unit of measure: EA
- Unit weight: 11.51 lb
Compatibility and Accessories
Specific mating plugs, enclosures, or accessory part numbers are not provided with this SKU. Confirm compatibility with the mating pin & sleeve plugs and installation hardware required for your application before purchasing.
- Confirm matching pin & sleeve plug type and ampacity before installation
- Check that panel or enclosure cutouts and mounting provisions match the device to be installed
Before You Order
Confirm the model number and the number of units required before ordering. This page describes a single SKU: Leviton 420MF7WLEV. Verify the device color, mechanical interlock requirement, and 20A rating meet your project specifications.
- Verify mating pin & sleeve plug type and ampacity compatibility separately.
- Confirm panel/enclosure mounting and cutout dimensions with your installer.
- Contact your project engineer or Leviton technical support for application-specific guidance if needed.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Leviton 420MF7WLEV Pin & Sleeve Device. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Leviton |
|---|---|
| SKU | 420MF7WLEV |
| Type | Pin & Sleeve Device |
| Rating | 20A (Mechanical Interlock) |
| Finish | Red |
| UPC | 07847795237 |
| Unit of Measure | EA |
| Weight | 11.51 lb |
