Leviton 1254-IG Pin & Sleeve Device

(No Ratings)
SKU: 1254-IG
Price: $56.21
Free shipping on orders over $1,500

Description

Product Overview

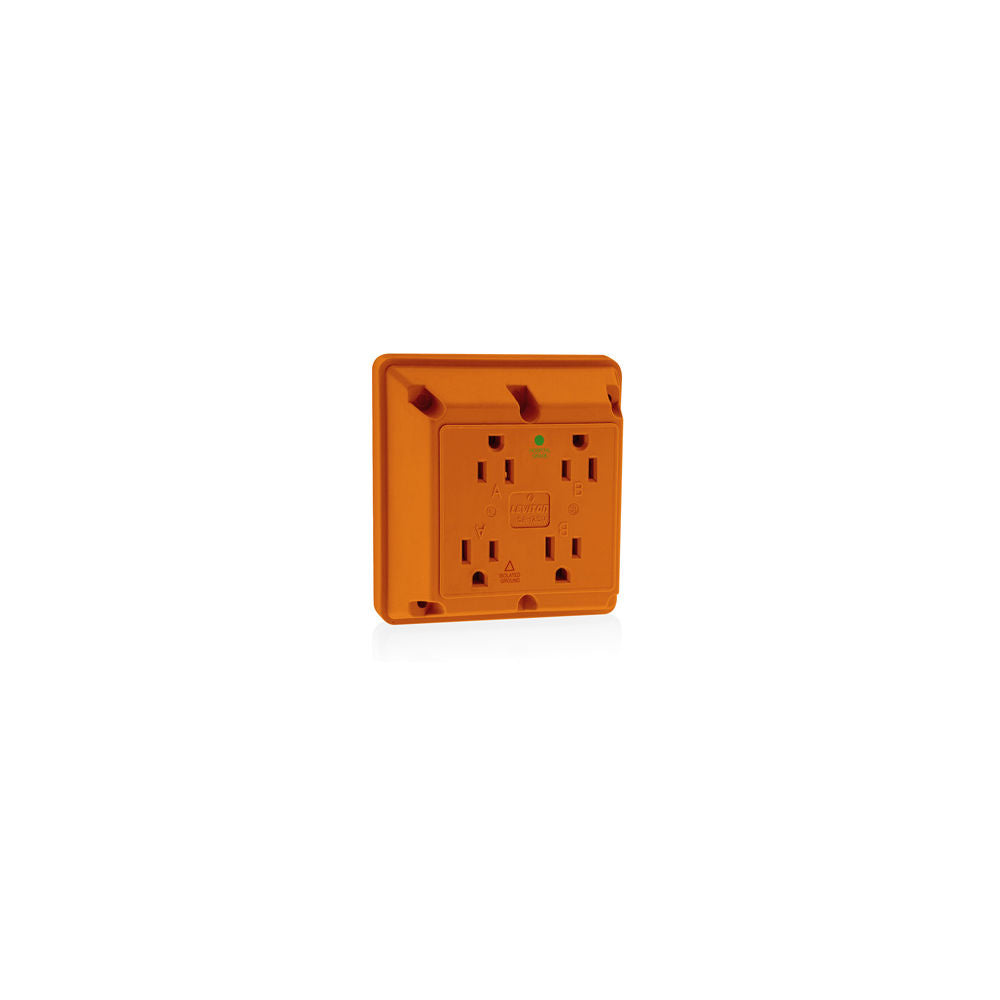

The Leviton 1254-IG is an orange pin & sleeve receptacle configured as a 4-in-1 device with a 2-pole, 3-wire grounding contact arrangement rated 15A, 125V.

Sold as a single EA and listed under UPC 07847783052.

Key Features

  • 4-in-1 pin & sleeve receptacle configuration
  • 2-pole, 3-wire grounding contact arrangement (2P0 3W)
  • Rated 15A, 125V
  • Orange finish
  • Model/Item #: 1254-IG

Function and basic use

The Leviton 1254-IG is a pin & sleeve receptacle intended to provide a polarized, grounded connection for circuits rated 15A, 125V. The 4-in-1 configuration and 2-pole, 3-wire grounding contact arrangement identify the connector type and mating interface.

  • Provides a pin & sleeve receptacle interface for compatible plugs
  • Orange color identifies this unit visually

Key specifications

Product identifiers and electrical ratings for quick confirmation.

  • Model / Item #: 1254-IG
  • Contact arrangement: 2-pole, 3-wire grounding (2P0 3W)
  • Current / Voltage: 15A, 125V
  • Finish / Color: Orange
  • UPC: 07847783052
  • Unit of measure: EA
  • Unit weight: 6.1 lb

Before you order

Confirm the model and electrical ratings match your requirements and that the mating plug type is compatible.

  • Verify model number 1254-IG and quantity required
  • Confirm mating plug compatibility with a 15A, 125V, 2-pole 3-wire grounding receptacle

Before You Order

Confirm the Leviton 1254-IG matches the required pin configuration and electrical rating, and ensure mating plugs are compatible.

  • Verify model number 1254-IG and required quantity
  • Ensure mating plugs and circuit ratings match 15A, 125V, 2-pole 3-wire grounding

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Leviton 1254-IG Pin & Sleeve Device. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandLeviton
SKU1254-IG
TypePin & Sleeve Device
Contact configuration2-pole, 3-wire grounding (2P0 3W)
Current / Voltage15A, 125V
FinishOrange
UPC07847783052
Unit weight6.1 lb
Unit of measureEA
