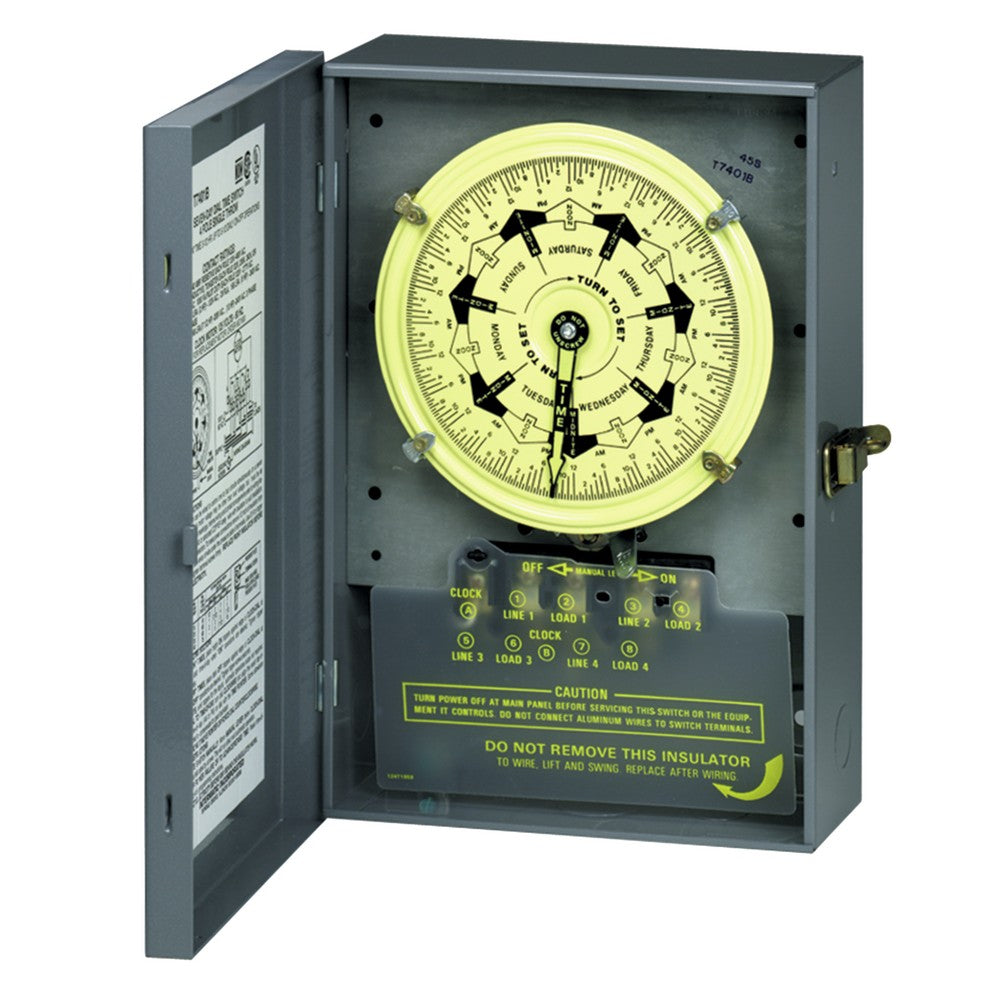

Intermatic 120 VAC 60Hz Indoor Mechanical Time Switch T7801BC

Product Overview

The Intermatic T7801BC is a 7-day mechanical time switch for scheduled electrical load control at 120 VAC, 60Hz, supplied in an indoor metal enclosure with a 3.5-hour interval.

This unit includes two normally open and two normally closed switching contacts (2 NO / 2 NC) for use in lighting, HVAC, maintenance, and general facility control applications.

Key Features

• 7-day mechanical timer with 3.5-hour interval
• Rated for 120 VAC, 60Hz operation
• Switch configuration: 2 NO / 2 NC
• Indoor metal enclosure; metal construction
• Manufacturer model/SKU: T7801BC (UPC 078275467033)
• Unit weight: 9.901 lb

Function and intended use

The T7801BC is a mechanical time switch designed to provide scheduled on/off control across a seven-day cycle. Typical applications include lighting schedules, HVAC control, facility maintenance routines, and replacement of existing mechanical timers in commercial and institutional settings.

• Typical uses: lighting control, HVAC scheduling, maintenance cycles, replacement and contractor stock
• Mechanical design for repeating daily and weekly schedules

Electrical ratings and switch configuration

This model is listed for 120 VAC at 60Hz and includes a mixed contact arrangement to support multiple switched circuits.

• Voltage: 120 VAC
• Frequency: 60Hz
• Switch configuration: 2 normally open (NO) and 2 normally closed (NC) contacts

Enclosure and installation notes

The T7801BC is supplied in an indoor metal enclosure and is intended for indoor locations. Confirm the enclosure and location rating against your installation environment and applicable codes.

• Enclosure: Indoor metal enclosure
• Material: Metal
• Location rating: Indoor
• Have a qualified professional select and install electrical products according to local code and authority having jurisdiction

Technical specifications

Key identifiers and packing details are provided for ordering and inventory matching. Verify the model number and UPC when replacing existing units.

• Brand: Intermatic
• Model / SKU: T7801BC
• Original product description: 7-Day Mechanical Time Switch, 120 VAC, 60Hz, 2 NO/2 NC, Indoor Metal Enclosure, 3.5 Hour Interval
• Interval: 3.5 Hour Interval
• UPC: 078275467033
• Unit weight: 9.901 lb
• Master pack quantity: 1

Before You Order

Confirm the model number, UPC, voltage, switch configuration, and enclosure/location rating before ordering. Electrical products should be selected and installed by a qualified professional in accordance with local codes.

• Verify T7801BC matches the unit being replaced or specified
• Ensure 120 VAC / 60Hz rating is compatible with site power

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Intermatic 120 VAC 60Hz Indoor Mechanical Time Switch T7801BC. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
