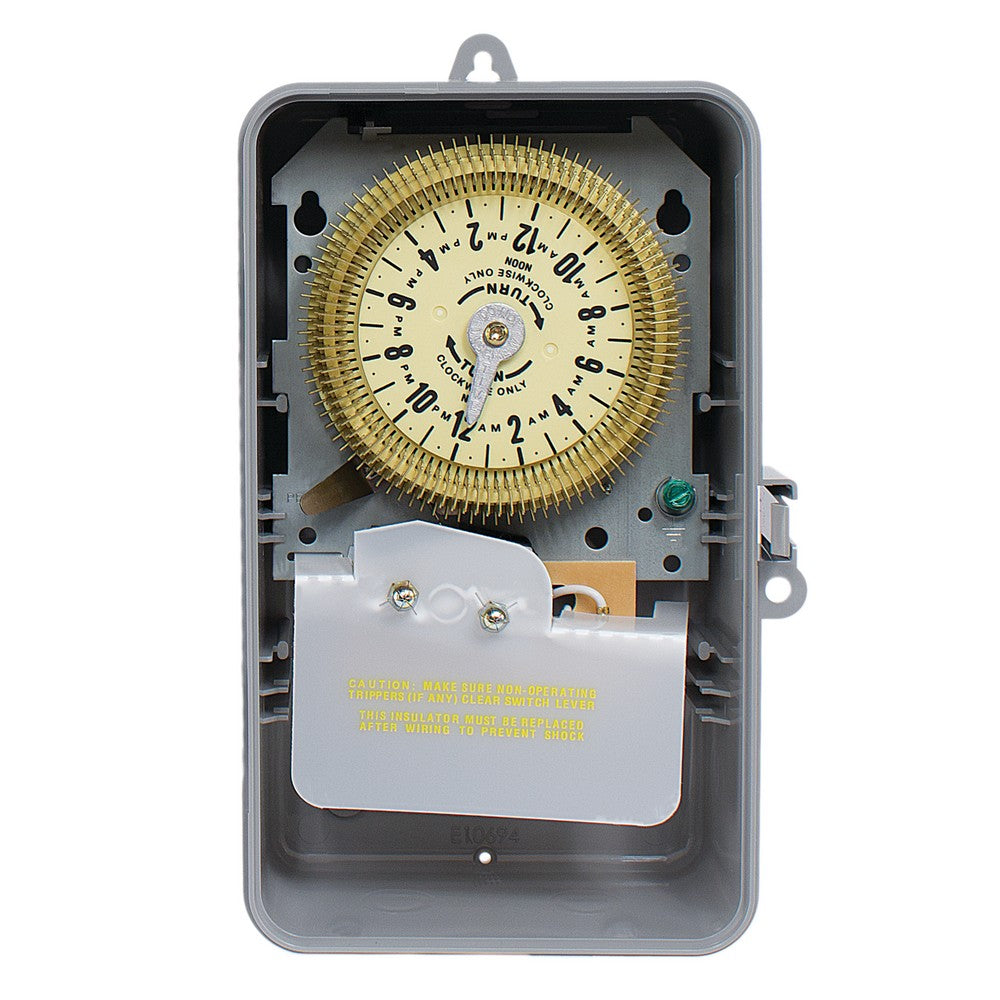

Intermatic 125 VAC 24-Hour 60HZ Mechanical Time Switch T1905P

Product Overview

The Intermatic T1905P is a mechanical 24‑hour time switch rated for 125 VAC and 60 Hz operation. It provides 15‑minute interval scheduling with an SPDT switching configuration in a plastic enclosure rated for indoor or outdoor use.

Designed for scheduled load and lighting control, the T1905P is suitable for commercial and facility maintenance applications and for replacement projects where a single‑line mechanical timer is required.

Key Features

• Voltage: 125 VAC, 60 Hz
• 24‑hour dial with 15‑minute intervals
• SPDT switching configuration
• Plastic enclosure rated for indoor and outdoor locations
• Manufacturer model/PN: T1905P • UPC: 078275040786

Function and typical uses

The T1905P is a mechanical time switch intended for scheduled electrical load control. It is commonly used for lighting control, equipment scheduling, and other timed loads in commercial buildings and facility maintenance programs.

As a mechanical dial timer, it operates on a repeating 24‑hour cycle and is suited for applications that require straightforward on/off scheduling without electronic programming.

• Typical applications: scheduled load control, lighting control, equipment control, replacement projects
• Target environments: commercial buildings, facilities maintenance, outdoor and indoor installations (see installation notes)

Electrical and scheduling specifications

Key electrical and timing specifications are provided for application matching and procurement.

• Voltage: 125 VAC
• Frequency: 60 Hz
• Schedule: 24‑Hour dial with 15‑minute interval setting
• Switching configuration: SPDT (single pole, double throw)

Compatibility and installation notes

Confirm model, voltage, switching configuration, mounting style, and local code requirements before installation. This product listing provides catalog and specification details; it does not include wiring diagrams or amperage ratings.

Electrical products should be selected and installed by a qualified professional according to the application and authority having jurisdiction.

• Verify the T1905P model number and UPC (078275040786) against project requirements
• Check amperage, mounting, enclosure penetrations, and wiring method with the installer or manufacturer documentation prior to ordering

Materials and packaging details

The T1905P uses a plastic enclosure and is packaged for distributor handling. Unit and pack weights are provided for logistics planning.

• Material: Plastic enclosure
• Unit weight: 2.295 lb
• Master pack quantity: 6 (master pack weight: 13.77 lb)
• Pallet quantity: 144 (pallet weight: 330.48 lb)

Before You Order

Confirm the model number and quantity required before ordering. This page lists catalog and physical specifications but does not include amperage ratings, wiring diagrams, or mounting details that may be required for installation.

• Verify voltage (125 VAC) and switching configuration (SPDT) against the application
• Confirm enclosure and mounting requirements with your installer or refer to Intermatic technical documentation for wiring and amperage information
• Electrical products should be installed by a qualified professional in accordance with local code

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Intermatic 125 VAC 24-Hour 60HZ Mechanical Time Switch T1905P. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
