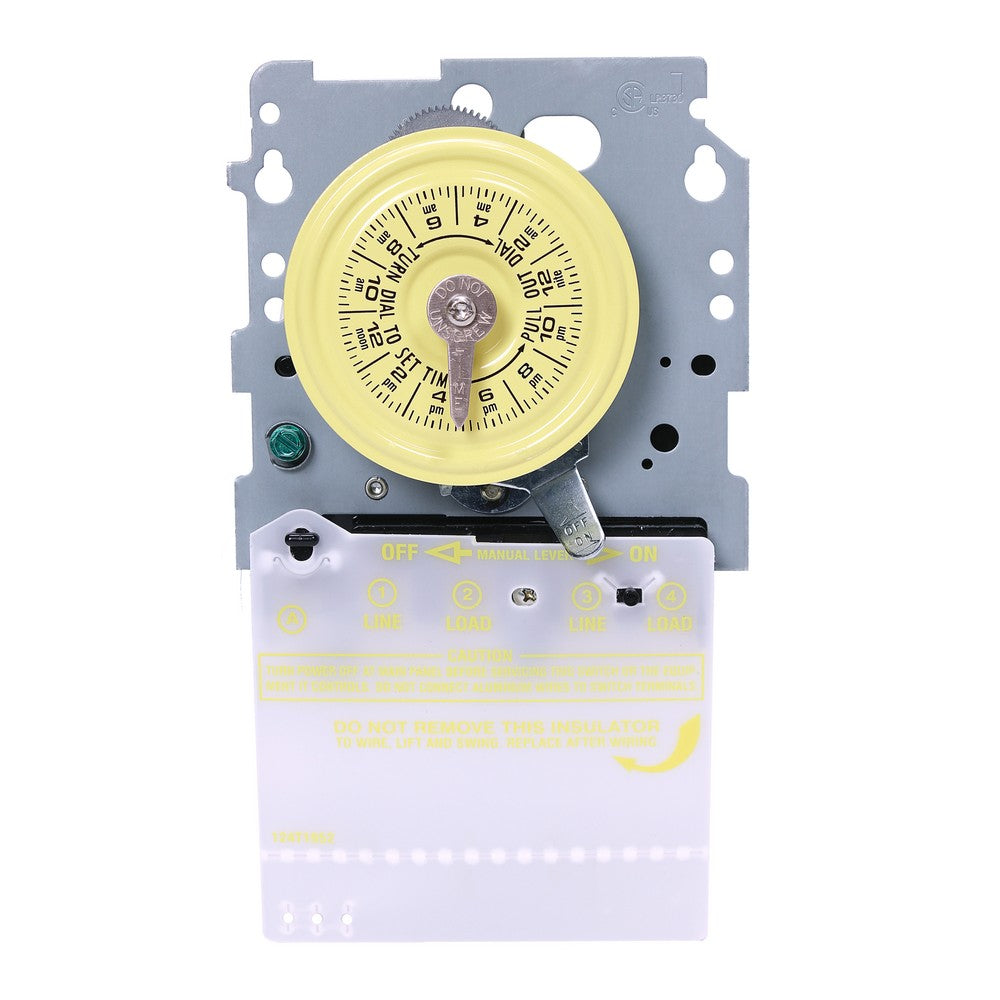

Intermatic 120V 24-Hour Mechanical Time Switch Mechanism T103M

Product Overview

The Intermatic T103M is a mechanical time switch mechanism for scheduled electrical load control with a 24-hour dial and DPST switching configuration.

Manufacturer data lists model T103M, voltage 120V, UPC 078275000254, unit weight 1.347 lb, and master pack quantity 12.

Key Features

• 24-hour mechanical dial for daily scheduling
• DPST (double pole, single throw) switching configuration
• Listed voltage: 120V
• Manufacturer UPC 078275000254
• Master pack quantity: 12; unit weight: 1.347 lb

Function and intended use

The T103M is a mechanical time switch mechanism that provides timed on/off control using a 24-hour dial for repeatable daily schedules.

Schedule and switching

The mechanism uses a 24-hour mechanical dial and is listed with a DPST switching configuration. DPST means two poles are switched together with a single throw.

• Schedule: 24-hour mechanical dial
• Switching configuration: DPST

Electrical rating

Manufacturer data lists the T103M voltage rating as 120V. Verify compatibility with the load and system wiring from project documentation.

• Voltage (listed): 120V

Common applications

Manufacturer data lists typical uses as scheduled load control and lighting or equipment control; suitable where a daily repeating schedule is required.

• Lighting control
• Scheduled equipment control
• Facility and maintenance applications
• Replacement projects requiring the same catalog model

Packaging and logistics details

Logistics and packaging details are provided for procurement and inventory purposes.

• Manufacturer part number / SKU: T103M
• UPC: 078275000254
• Unit weight: 1.347 lb
• Master pack quantity: 12
• Master pack weight: 16.164 lb
• Pallet quantity: 288
• Pallet weight: 387.936 lb

Before You Order

Confirm the model number and quantity required before ordering. Electrical products should be selected and installed by a qualified professional according to the authority having jurisdiction.

• Verify voltage and switching configuration match the application.
• Confirm mounting style, enclosure rating, and amperage requirements from project specifications.
• Use the UPC or manufacturer part number (T103M / 078275000254) for accurate ordering and receiving.
