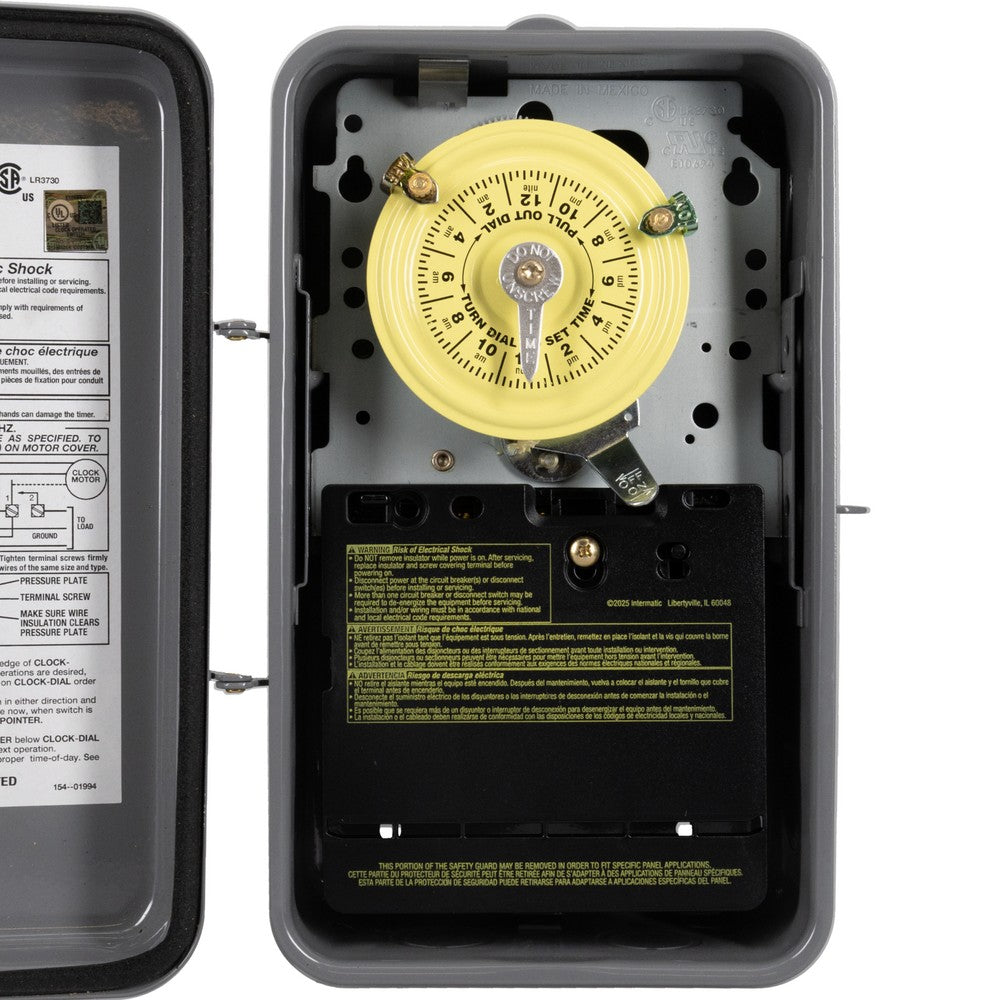

Intermatic 120 VAC 24-Hour 60HZ Metal Mechanical Time Switch T101R

Product Overview

The Intermatic T101R is a metal-housed mechanical time switch for scheduled electrical load control. It is rated for 120 VAC, 60 Hz operation and provides a 24‑hour dial with 1‑hour intervals.

Designed for indoor or outdoor mounting, the T101R uses a single-pole single-throw (SPST) switching configuration for lighting, equipment, and facility scheduled control and replacement projects.

Key Features

• Model: T101R (Manufacturer Part Number T101R)
• Voltage: 120 VAC, Frequency: 60 Hz
• Schedule: 24‑Hour dial with 1‑Hour interval segments
• Switching configuration: SPST (single‑pole single‑throw)
• Finish/Material: Metal housing suitable for indoor or outdoor use
• UPC: 078275000056 — useful for cataloging and receiving

Function and typical uses

The T101R provides time-based switching for scheduled load control using a 24‑hour mechanical dial divided into 1‑hour intervals. It is intended for tasks such as lighting control, equipment scheduling, and routine facility maintenance or replacement of comparable mechanical timers.

• Common applications: lighting control, equipment on/off scheduling, commercial buildings, maintenance and replacement projects
• Mechanical dial operation — set on/off pins or tabs at 1‑hour increments

Electrical rating and switching

Confirm compatibility with your circuit: the T101R is rated for 120 VAC at 60 Hz and uses an SPST switching configuration.

• Voltage: 120 VAC
• Frequency: 60 Hz
• Switch type: SPST (single‑pole single‑throw)

Mounting and enclosure suitability

The timer is supplied in a metal finish and is described for both indoor and outdoor locations. Verify the required enclosure type and mounting style for your installation and applicable code requirements.

• Material/Finish: Metal
• Location/Enclosure rating: Indoor, Outdoor — confirm specific enclosure needs for exposed installations

Technical specifications and identification

Use the following identifiers and physical details for ordering, receiving, and matching with existing equipment.

• Manufacturer: Intermatic
• Model / SKU / MPN: T101R
• UPC: 078275000056
• Unit weight: 3.393 lb (per manufacturer data)
• Packaging: Master pack quantity 6 (master pack weight 20.358 lb); pallet quantity 162 (pallet weight 549.666 lb)

Before You Order

Confirm the model number (T101R), voltage, switching configuration, and enclosure requirements before ordering. Electrical products should be selected and installed by a qualified professional in accordance with local codes and the authority having jurisdiction.

• Verify 120 VAC, 60 Hz compatibility with your circuit
• Confirm SPST switching meets the control needs of your load
• Confirm required enclosure and mounting style for outdoor or exposed installations
• Confirm quantity required and model number for replacement or matching jobs
