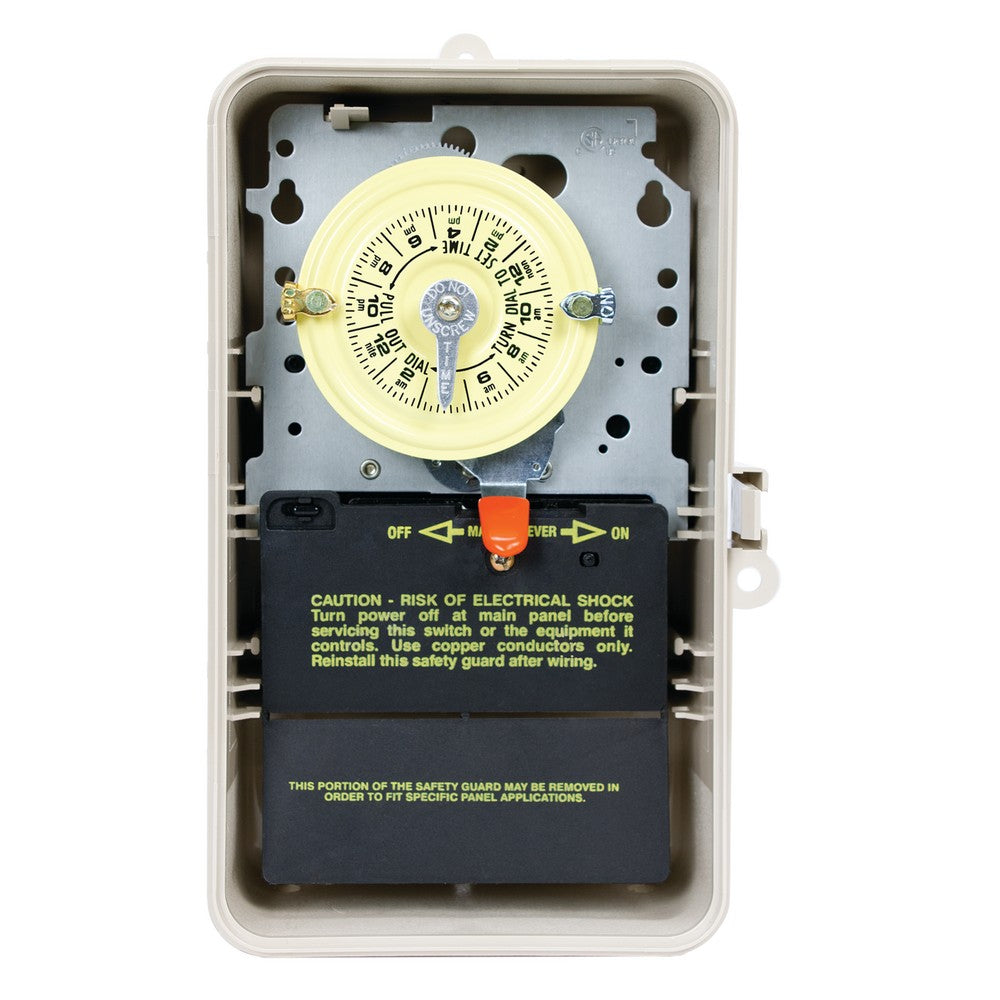

Intermatic 120V 24-Hour Mechanical Time Switch T101P3

Product Overview

The Intermatic T101P3 is a mechanical 24-hour time switch for scheduled electrical load control. The product is listed with a 120V rating, SPST switching configuration, and a Type 3R plastic enclosure.

SKU T101P3 (UPC 078275026285) is commonly used for timed lighting and equipment scheduling and for like-for-like replacements where a mechanical timer with these ratings is required.

Key Features

• 24-hour mechanical timing mechanism
• Rated for 120V operation
• Single-pole single-throw (SPST) switching configuration
• Type 3R plastic enclosure
• Manufacturer model/SKU T101P3 with UPC 078275026285

Function and intended use

The T101P3 is a mechanical time switch that provides daily on/off scheduling using a 24-hour dial.

Typical uses include timed lighting and scheduled equipment operation or replacing a compatible mechanical timer with the same basic ratings.

• Daily schedules via 24-hour dial
• Applications: lighting control, equipment scheduling, replacement of like-for-like timers

Electrical rating and switching

This model is listed with a 120V rating and a single-pole single-throw (SPST) switching configuration. Verify voltage and switching arrangement match the load and circuit before ordering or installing.

• Voltage: 120V
• Switching: SPST

Enclosure rating and mounting considerations

The T101P3 is supplied in a Type 3R plastic enclosure as listed. Type 3R indicates protection against falling rain and external ice formation when mounted appropriately.

Confirm mounting style and local code requirements for outdoor or damp-location installations.

• Material: Plastic
• Enclosure rating: Type 3R

Physical specifications and packing

Use the listed unit and pack weights and quantities for procurement and logistics planning.

• Model / SKU: T101P3
• UPC: 078275026285
• Unit weight: 2.195 lb
• Master pack quantity: 6 (master pack weight: 13.17 lb)
• Pallet quantity: 162 (pallet weight: 355.59 lb)

Selection and installation notes

Confirm model number, voltage, switching configuration, enclosure rating, and required quantity before ordering. Electrical products should be selected and installed by a qualified professional in accordance with the authority having jurisdiction.

• Confirm T101P3 matches the existing device or specification before purchase
• Verify 120V compatibility with the circuit
• Ensure SPST switching meets control requirements
• Consult a qualified electrician for installation

Before You Order

Confirm the model number (T101P3), voltage, switching configuration, enclosure rating, and quantity required before ordering.

• Verify T101P3 is the intended replacement or specified timer
• Confirm 120V compatibility with the circuit
• Have a qualified electrician perform installation

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Intermatic 120V 24-Hour Mechanical Time Switch T101P3. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
