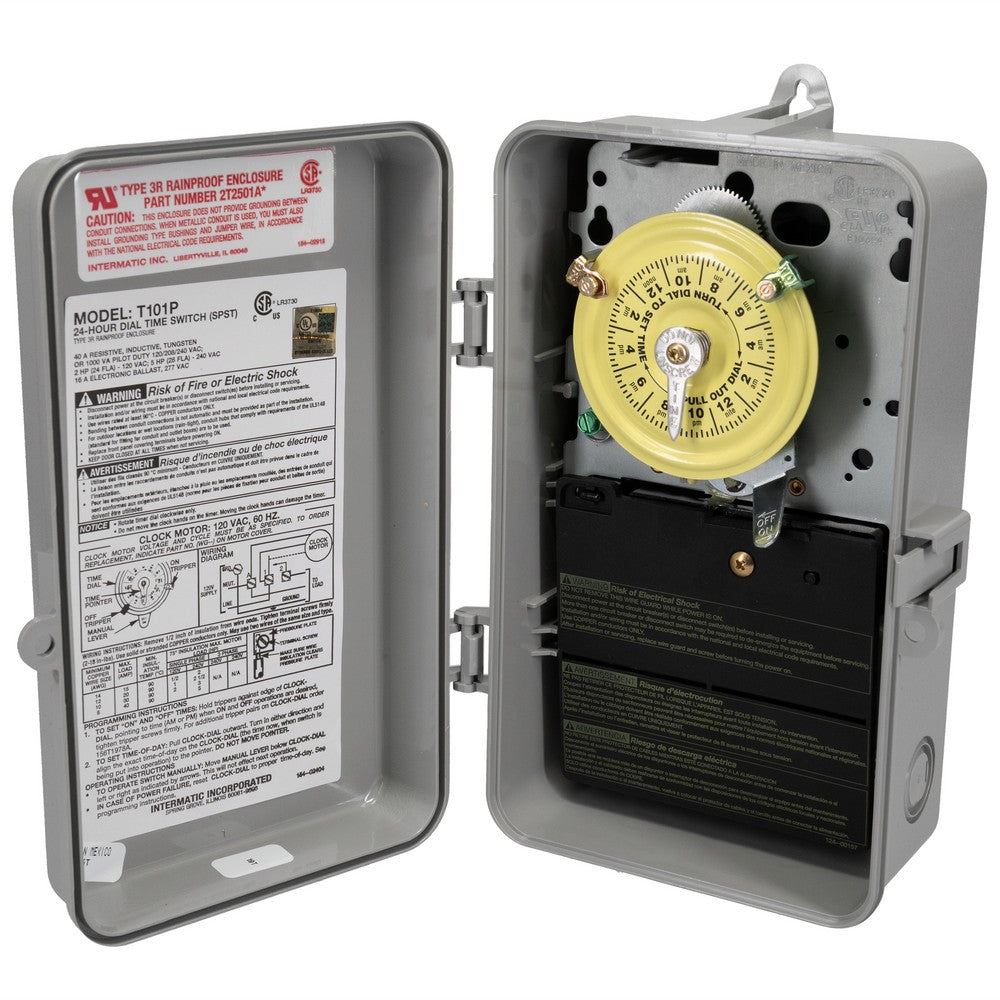

Intermatic 120 VAC 24-Hour 60HZ Mechanical Time Switch T101P

Product Overview

The Intermatic T101P is a mechanical 24-hour time switch for scheduled electrical load control. It uses a 24-hour dial with 1-hour intervals and a single-pole single-throw (SPST) switching configuration.

Rated for 120 VAC and 60 Hz, the T101P is supplied in a plastic enclosure and is indicated for indoor or outdoor locations. UPC: 078275000193; manufacturer part number: T101P.

Key Features

• 24-hour dial with 1-hour intervals
• 120 VAC, 60 Hz electrical rating
• SPST switching configuration
• Plastic enclosure; listed for indoor or outdoor locations
• UPC 078275000193

What this timer does

The T101P offers mechanical, time-based switching on a 24-hour cycle. Users set on/off positions on the dial in one-hour increments to control connected loads according to a daily schedule.

• Mechanical dial — no digital programming required
• 1-hour interval settings for daily schedules

Electrical rating and switching

This model is rated for 120 VAC at 60 Hz and uses a single-pole single-throw (SPST) switch to open or close the load circuit.

• Voltage: 120 VAC
• Frequency: 60 Hz
• Switching configuration: SPST

Location and enclosure

The T101P is supplied in a plastic enclosure and is indicated for indoor or outdoor use. Confirm mounting style and local code requirements prior to installation.

• Enclosure material: Plastic
• Location rating: Indoor, Outdoor

Typical applications

Suitable for straightforward scheduled load control where a simple daily timer is sufficient, such as lighting schedules, routine equipment control, and replacement of like-for-like mechanical timers.

• Lighting control
• Equipment scheduling
• Facility maintenance routines
• Replacement projects

Ordering and logistics

Identify the product by Intermatic part number T101P and UPC 078275000193 when ordering. Unit and pack weights are provided for procurement and shipping calculations.

• Manufacturer Part Number (MPN): T101P
• UPC: 078275000193
• Unit weight: 2.245 lb
• Master pack quantity: 6 (master pack weight: 13.47 lb)

Before You Order

Verify the model number (T101P), UPC, and electrical ratings match your requirements. Electrical products should be selected and installed by a qualified professional in accordance with local codes.

• Confirm SPST switching configuration meets your control needs
• Check enclosure and mounting needs for your installation

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Intermatic 120 VAC 24-Hour 60HZ Mechanical Time Switch T101P. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
