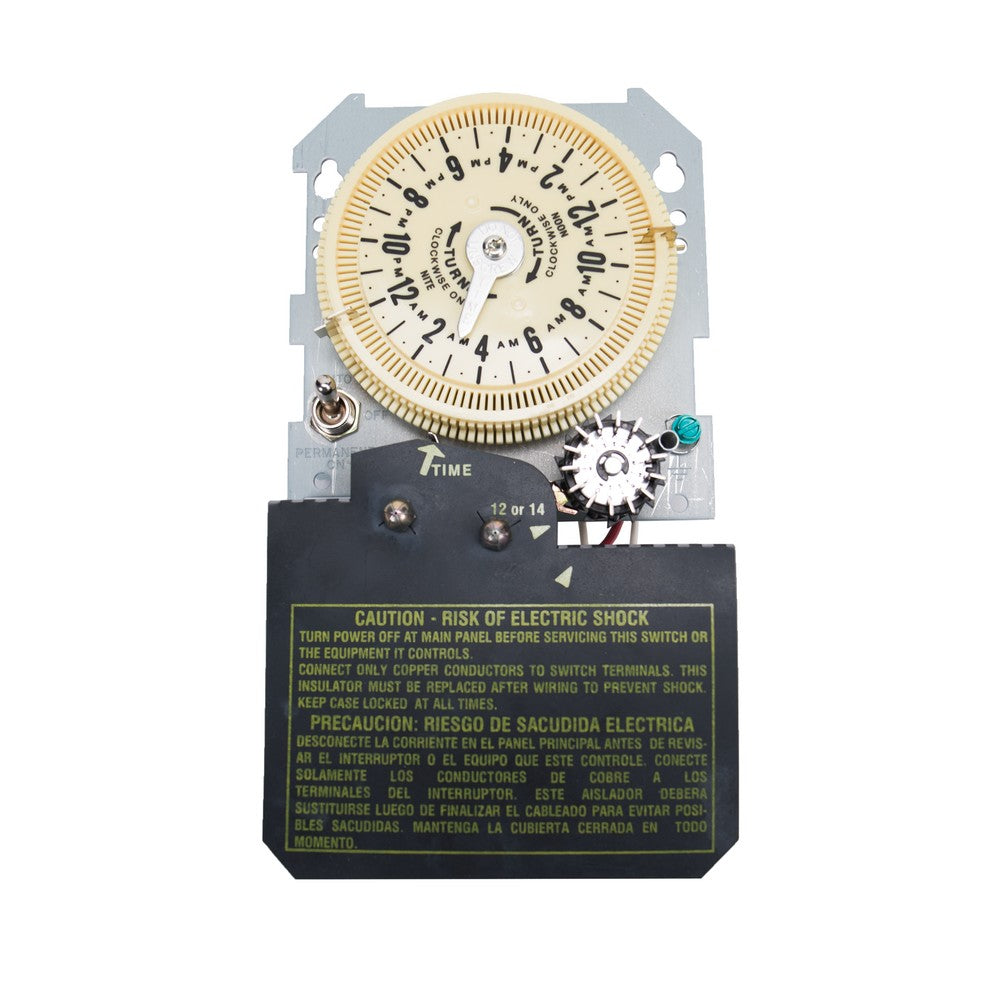

Intermatic 14-Day Mechanical Time Switch Mechanism R8806M101C

Product Overview

The Intermatic R8806M101C is a mechanical time switch mechanism listed with a 14‑day schedule/interval. It is provided as the mechanism only; enclosure, voltage, mounting, and other components are not included.

Use this information to verify fit with your existing enclosure or system and to support procurement and inventory matching.

Key Features

• 14‑day mechanical schedule/interval
• Manufacturer model R8806M101C (UPC 078275148024)
• Unit weight: 1.746 lb; master pack quantity: 12
• Product category code: TS

Function and intended use

The R8806M101C is a mechanical time switch mechanism that provides a repeating on/off schedule on a 14‑day cycle. It is supplied as the mechanism component intended to be installed in a compatible enclosure or assembly.

• Provides recurring schedules over a 14‑day interval
• Mechanism only — requires appropriate enclosure and electrical connections for installation

Typical applications

This mechanism is typically used where a mechanical 14‑day schedule is needed. Use suitability depends on system requirements and local codes.

• Scheduled lighting control
• Timed equipment control where a mechanical timer is acceptable
• Replacement projects where an exact mechanism match is required

Product specifications and identifiers

Identifiers and packing details are provided to support procurement, inventory, and matching to existing installations.

• Brand: Intermatic
• Model / SKU: R8806M101C
• Product type: Mechanical Time Switch Mechanism
• Schedule / Interval: 14‑Day
• UPC: 078275148024
• Unit weight: 1.746 lb
• Master pack quantity: 12; master pack weight: 20.952 lb
• Pallet quantity: 360; pallet weight: 628.56 lb

Compatibility and installation notes

This listing describes the mechanism only. Confirm electrical characteristics, mounting style, and enclosure compatibility before ordering.

• Verify required voltage, amperage, mounting style, and enclosure rating for your installation
• Selection and installation should comply with local codes and be performed by a qualified professional

Before You Order

Confirm the model number, quantity, and compatibility with your enclosure or system before ordering.

• Electrical products should be selected and installed by a qualified professional
• Check local code and authority having jurisdiction for installation requirements
