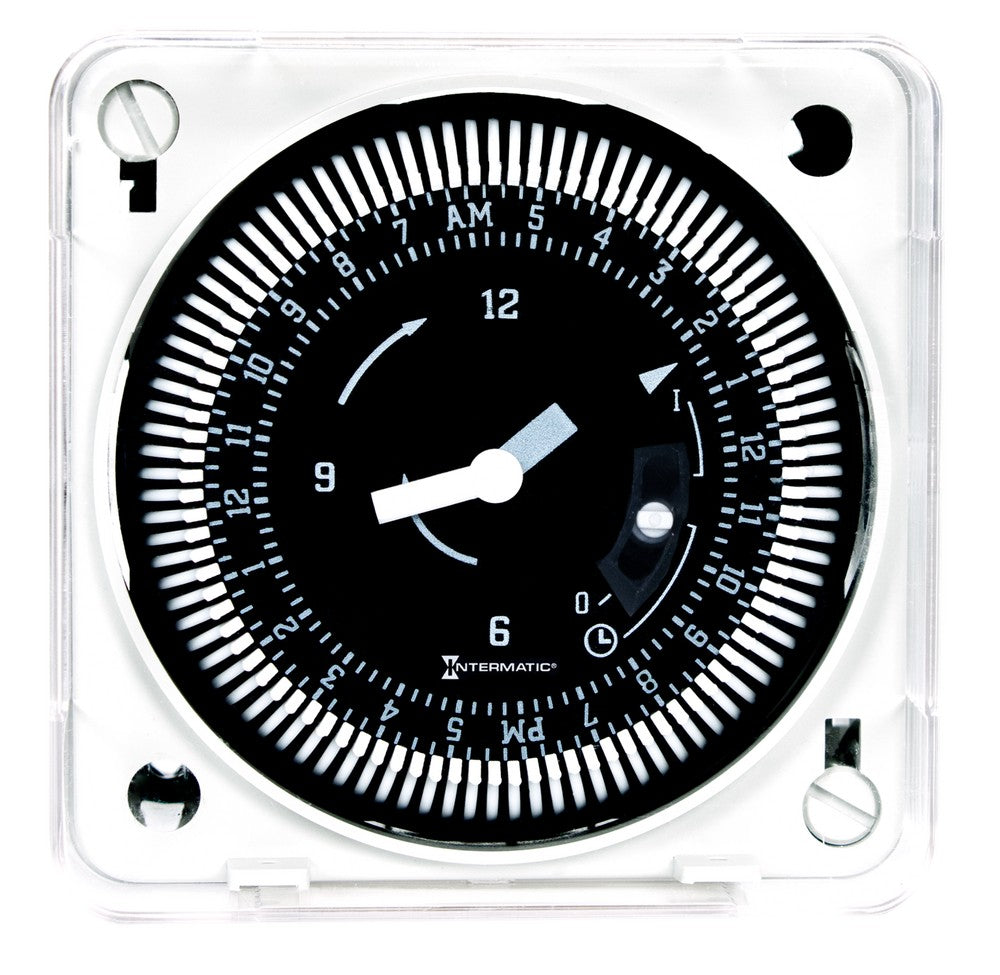

Intermatic 120V 21A 24-Hour Electromechanical Flush Mount Timer Module MIL72EQTUZH-120

Product Overview

The Intermatic MIL72EQTUZH-120 is an electromechanical flush-mount timer module for scheduled load control and equipment switching. It is rated 120V and 21A with an SPDT contact configuration.

The timer provides a 24-hour dial with 15-minute intervals and is intended for panel, surface, DIN rail, or flush-mounted timing control where matching voltage, amperage, mounting style, and contact type is required.

Key Features

• Voltage: 120V
• Amperage: 21A
• Schedule: 24‑hour dial, 15‑minute intervals
• Switching configuration: SPDT (single-pole, double-throw)
• Mounting type: Flush mount (also used in panel, surface, or DIN rail installations as applicable)
• UPC: 078275153424 — Manufacturer part MIL72EQTUZH-120

Function and typical uses

This electromechanical timer module is designed to provide scheduled on/off control for loads such as lighting and equipment in commercial and facility maintenance applications. It is suitable for replacement projects or new installations where a 24-hour mechanical schedule is required.

• Common applications: scheduled load control, lighting control, equipment control, commercial buildings, and facility maintenance
• Intended for panel, surface, DIN rail, or flush-mounted timing control where the electrical and mounting specifications match the control design

Electrical ratings and switching

Confirm electrical compatibility with the intended load and control system before installation. The MIL72EQTUZH-120 provides a specific voltage and current capacity and uses an SPDT contact arrangement.

• Rated voltage: 120V
• Rated current: 21A
• Contact configuration: SPDT (single-pole, double-throw) — for switching one circuit between two outputs or on/off control as wired

Scheduling and intervals

The timer uses a 24-hour mechanical dial arranged for quarter-hour resolution to support daily scheduling where repeatable on/off events are needed.

• Schedule type: 24-hour dial
• Interval resolution: 15-minute increments

Mounting and installation context

This model is specified as a flush-mount timer module. Verify mounting style, enclosure rating, and space requirements in the target panel or device enclosure prior to specifying or installing the unit.

• Mounting style: Flush mount (also applicable to panel, surface, or DIN rail installations when used as part of compatible assemblies)
• Installation: Must be selected and installed by a qualified professional in accordance with local codes and the authority having jurisdiction

Product specifications

Quick reference identifiers and handling details for procurement and inventory.

• Brand: Intermatic
• Model / SKU: MIL72EQTUZH-120
• Manufacturer part number: MIL72EQTUZH-120
• UPC: 078275153424
• Unit weight: 0.309 lb

Before You Order

Confirm the model number, voltage, amperage, contact configuration, and mounting style match your application before ordering. Electrical products should be selected and installed by a qualified professional according to local codes and the authority having jurisdiction.

• Verify MIL72EQTUZH-120 matches the required 120V and 21A ratings for the intended load
• Confirm flush-mount dimensions and enclosure compatibility where the module will be installed
• Use the UPC 078275153424 and manufacturer part number MIL72EQTUZH-120 for reorder and inventory purposes
