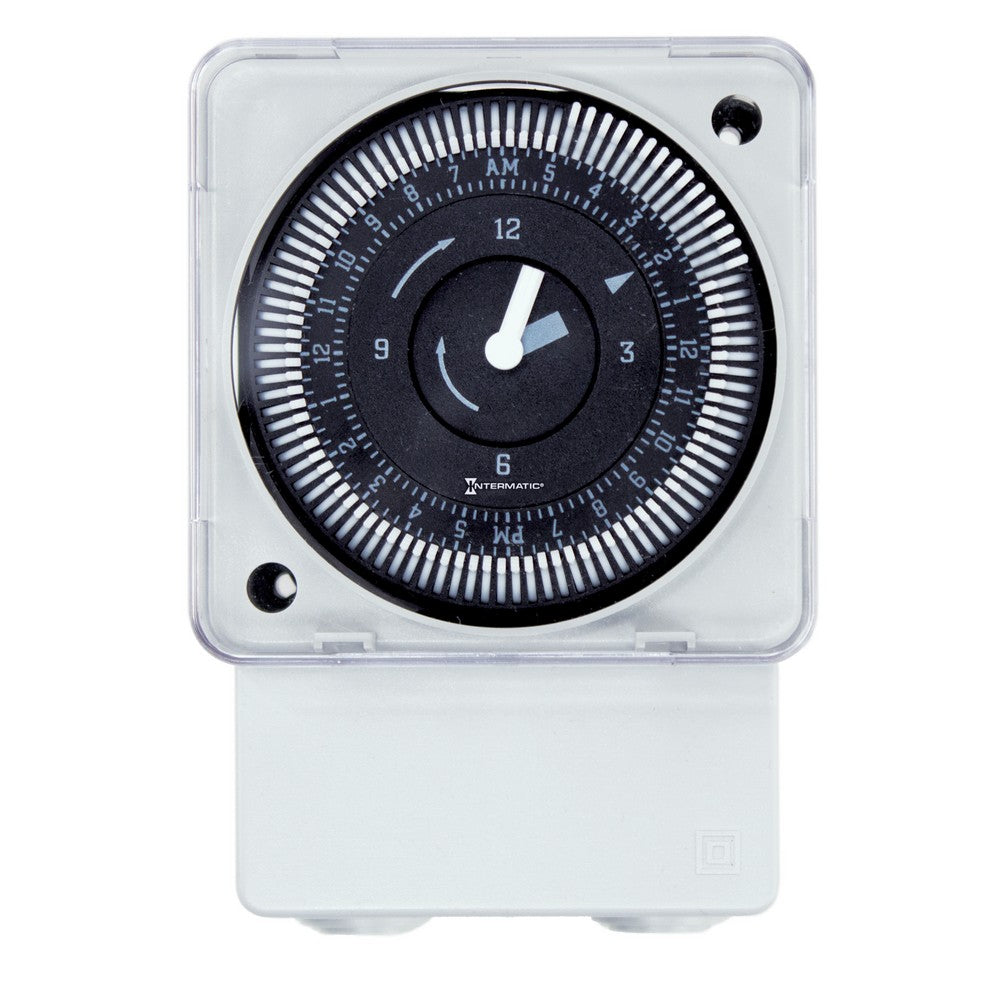

Intermatic 208/240V 21A 24-Hour Electromechanical Surface/DIN Rail Timer Module MIL72ASTUZ-240

Product Overview

The Intermatic MIL72ASTUZ-240 is an electromechanical 24-hour timer module for surface or DIN-rail mounting. It is rated for 208/240V service with a 21A switching capacity and uses a 24-hour dial with 15-minute intervals.

This single-pole double-throw (SPDT) timer is intended for scheduled load control tasks such as lighting and equipment control in commercial and maintenance applications. UPC: 078275153356.

Key Features

• Voltage: 208/240V
• Amperage: 21A
• Schedule: 24-hour dial with 15-minute intervals
• Switching configuration: SPDT (single-pole double-throw)
• Mounting: Surface or DIN-rail
• Manufacturer model/SKU: MIL72ASTUZ-240
• UPC: 078275153356
• Unit weight: 0.489 lb

Function and intended use

The MIL72ASTUZ-240 is an electromechanical timer module designed for scheduled load control. It is commonly used for lighting control, timed equipment operation, and other scheduled switching tasks in commercial buildings and facility maintenance programs.

Applications listed for this model include scheduled load control, lighting control, equipment control, and replacement projects where a 24-hour mechanical schedule is required.

Electrical ratings and switching

This timer is rated for 208/240V operation with a 21A switching capacity. The contact arrangement is SPDT (single-pole double-throw), enabling one common contact to switch between two outputs as required by the control scheme.

• Voltage: 208/240V
• Amperage: 21A
• Contact configuration: SPDT

Mounting and installation form factor

The MIL72ASTUZ-240 is built for surface or DIN-rail mount installations, allowing use on control panels, inside enclosures, or on DIN rail mounting systems. Confirm enclosure rating and local code requirements when planning installation.

• Mounting types: Surface mount or DIN rail mount

Schedule control and intervals

Timing is provided by a 24-hour mechanical dial that supports 15-minute switching intervals. The mechanical schedule provides repeated daily on/off control according to pins or the timer's actuated segments.

• Schedule: 24-hour dial
• Interval resolution: 15-minute increments

Technical specifications and identifiers

Use these specifications for catalog matching, procurement, and inventory records.

• Brand: Intermatic
• Model / SKU: MIL72ASTUZ-240
• UPC: 078275153356
• Product category code: GM
• Unit weight: 0.489 lb
• Master pack qty: 1

Before You Order

Confirm the model number, voltage, amperage, mounting style, and contact configuration match your control panel design and local code requirements before ordering. Electrical devices should be selected and installed by a qualified professional.

• Verify model: MIL72ASTUZ-240 and UPC 078275153356
• Confirm required supply voltage: 208/240V
• Confirm switching capacity: 21A and SPDT configuration
• Confirm mounting preference: surface or DIN rail

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Intermatic 208/240V 21A 24-Hour Electromechanical Surface/DIN Rail Timer Module MIL72ASTUZ-240. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
