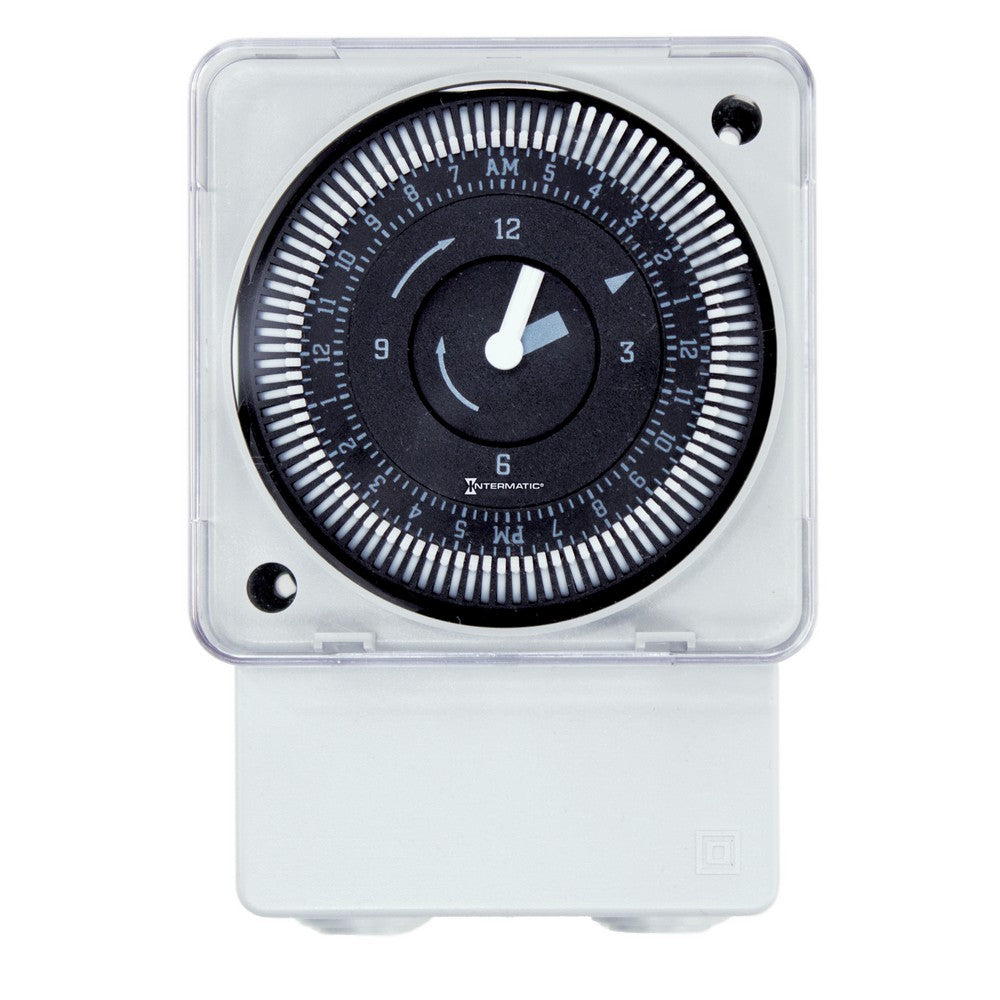

Intermatic 120V 21A 24-Hour Electromechanical Surface/DIN Rail Timer Module MIL72ASTUZ-120

(No Ratings)
SKU: MIL72ASTUZ-120
Price: $114.79
Free shipping on orders over $1,500

Description

Product Overview

The Intermatic MIL72ASTUZ-120 is an electromechanical timer module designed for surface, panel, DIN-rail, or flush mounting where a 24‑hour scheduling device is required.

Factory-listed ratings: 120V, 21A, SPDT contact configuration, 24‑hour schedule with 15‑minute intervals. UPC: 078275153349.

Key Features

  • 120V voltage rating
  • 21A switching capacity
  • SPDT (single-pole, double-throw) contact configuration
  • 24‑hour clock with 15‑minute interval segments
  • Mounting: surface or DIN-rail compatible
  • Manufacturer part/sku: MIL72ASTUZ-120; UPC 078275153349

What this timer does

The MIL72ASTUZ-120 provides electromechanical time-based switching on a 24‑hour cycle. It is intended to control loads on a schedule using 15‑minute interval segments and an SPDT contact to open or close circuits as required by the control design.

  • 24‑hour schedule divided into 15‑minute increments for repeated daily timing
  • Electromechanical mechanism for straightforward scheduled on/off control

Electrical ratings and switching

Use the MIL72ASTUZ-120 only where the listed electrical ratings meet the application requirements. The unit is specified for 120V operation and a 21A switching capacity with an SPDT contact configuration.

  • Voltage: 120V
  • Amperage (switching): 21A
  • Contact configuration: SPDT (single-pole, double-throw)

Mounting and installation configuration

The timer module is designed for surface or DIN-rail mounting and may also be used in panel or flush-mounted configurations where compatible enclosures and space exist. Physical mounting details, wiring connections, and enclosure ratings should be confirmed for the specific installation.

  • Mounting types: Surface mount, DIN rail, panel or flush mount where appropriate
  • Unit weight: 0.509 lb (useful for mounting and enclosure load calculations)

Typical applications

This Intermatic timer is intended for scheduled load control and is commonly specified for lighting control, equipment scheduling, facility maintenance, commercial building controls, and replacement projects requiring an electromechanical 24‑hour timer.

  • Scheduled load control and lighting
  • Equipment control in commercial and maintenance settings
  • Replacement of like-for-like electromechanical 24‑hour timers

Ordering and identification

Confirm the exact model number and electrical ratings before ordering to ensure compatibility with your control panel or application. The product is identified by manufacturer part number MIL72ASTUZ-120 and UPC 078275153349.

  • Manufacturer part number: MIL72ASTUZ-120
  • UPC: 078275153349
  • Category code: GM

Before You Order

Confirm the model number, voltage, amperage, mounting style, and contact configuration required for your application. Electrical products should be selected and installed by a qualified professional in accordance with local codes and the authority having jurisdiction.

  • Verify compatibility with the load and control panel (120V, 21A, SPDT).
  • Check that surface or DIN-rail mounting fits the intended enclosure or panel.
  • Confirm manufacturer part number MIL72ASTUZ-120 and UPC 078275153349 for ordering or replacement.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Intermatic 120V 21A 24-Hour Electromechanical Surface/DIN Rail Timer Module MIL72ASTUZ-120. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandIntermatic
SKUMIL72ASTUZ-120
Voltage120V
Ampere Rating21A
Schedule / Interval24‑Hour, 15‑Minute Intervals
Switching ConfigurationSPDT
Mounting TypeSurface / DIN Rail
UPC078275153349
Weight0.509 lb
Category CodeGM
