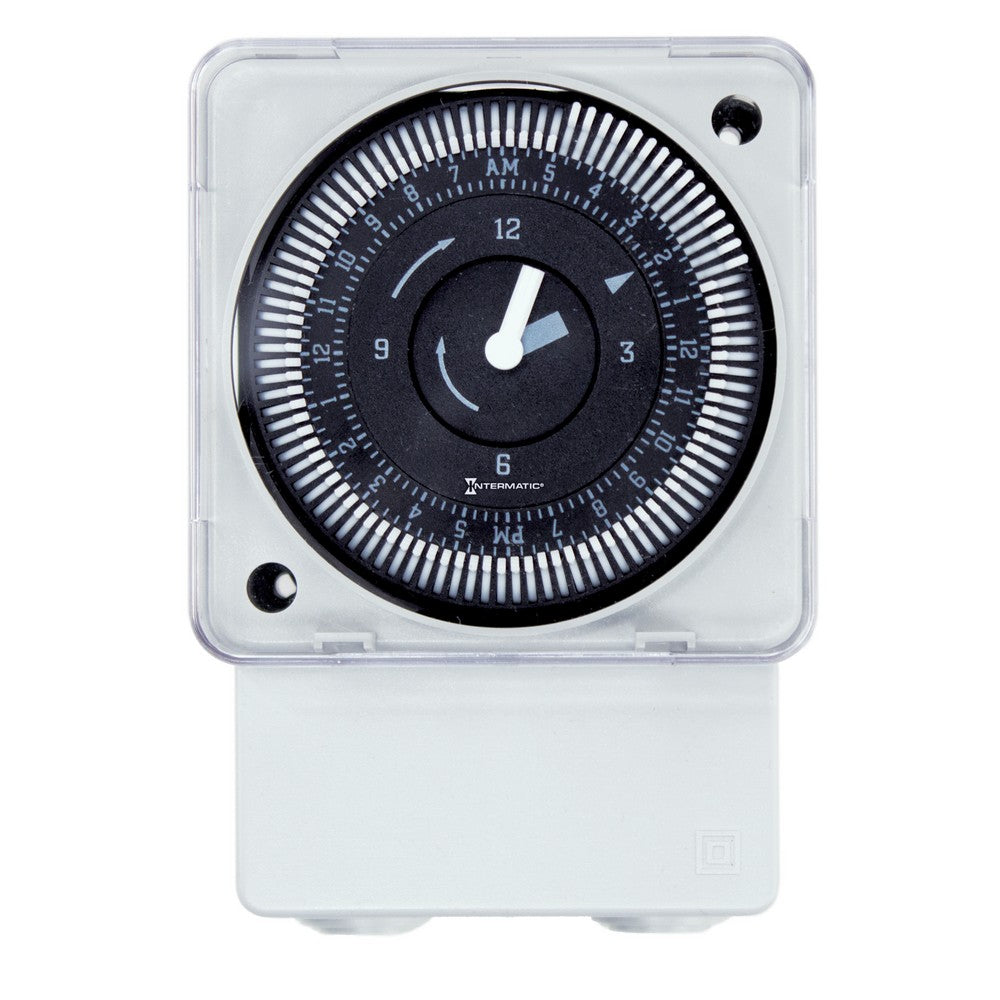

Intermatic 120V 21A 24-Hour Electromechanical Surface/DIN Rail Timer Module MIL72AQTUZH-120

Product Overview

The Intermatic MIL72AQTUZH-120 is an electromechanical 24-hour timer module specified for surface or DIN-rail mounting, and panel or flush installations where the listed voltage, amperage, schedule, and contact configuration match project requirements.

This model provides 24-hour scheduling in 15-minute intervals with an SPDT contact configuration and is intended for scheduled load and lighting control and similar time-based switching applications.

Key Features

• 120V rated electromechanical timer
• 21A switching capacity
• 24-hour dial with 15-minute interval settings
• SPDT (single-pole, double-throw) contact configuration
• Surface or DIN-rail mounting compatibility
• UPC 078275153318 for ordering and inventory

Function and intended use

The MIL72AQTUZH-120 is an electromechanical timer module that provides scheduled on/off control over a 24-hour cycle. Use cases include scheduled load control and lighting control where a mechanical time-switch is appropriate and the electrical ratings match the application.

• 24-hour timing with 15-minute intervals
• For use where mechanical timer control and the listed electrical ratings are suitable

Electrical ratings and switching

Rated for 120V supply and a 21A switching capacity. The switching element is a single-pole, double-throw (SPDT) contact as listed.

• Voltage: 120V
• Amperage: 21A
• Contact: SPDT (single-pole, double-throw)

Mounting and installation form factor

The product is specified for surface or DIN-rail mounting and may be used in panel or flush-mounted installations when the enclosure and mounting provisions match the product and application requirements.

• Mounting type: Surface / DIN Rail
• Typical locations: control panels or DIN-rail assemblies where the physical and environmental requirements are met

Technical specifications

Verified product details for ordering and specification matching.

• Brand: Intermatic
• Model / SKU: MIL72AQTUZH-120
• Schedule: 24-Hour, 15-Minute Intervals
• Switching Configuration: SPDT
• UPC: 078275153318
• Unit weight: 0.509 lb
• Product category code: GM

Before You Order

Verify the model, voltage, amperage, contact configuration and mounting style match your application. Electrical products should be selected and installed by a qualified professional in accordance with local code and the authority having jurisdiction.

• Confirm MIL72AQTUZH-120 is the exact model required.
• Ensure 120V supply and 21A rating suit the intended load.
• Confirm surface or DIN-rail mounting and enclosure meet environmental and clearance needs.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Intermatic 120V 21A 24-Hour Electromechanical Surface/DIN Rail Timer Module MIL72AQTUZH-120. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
