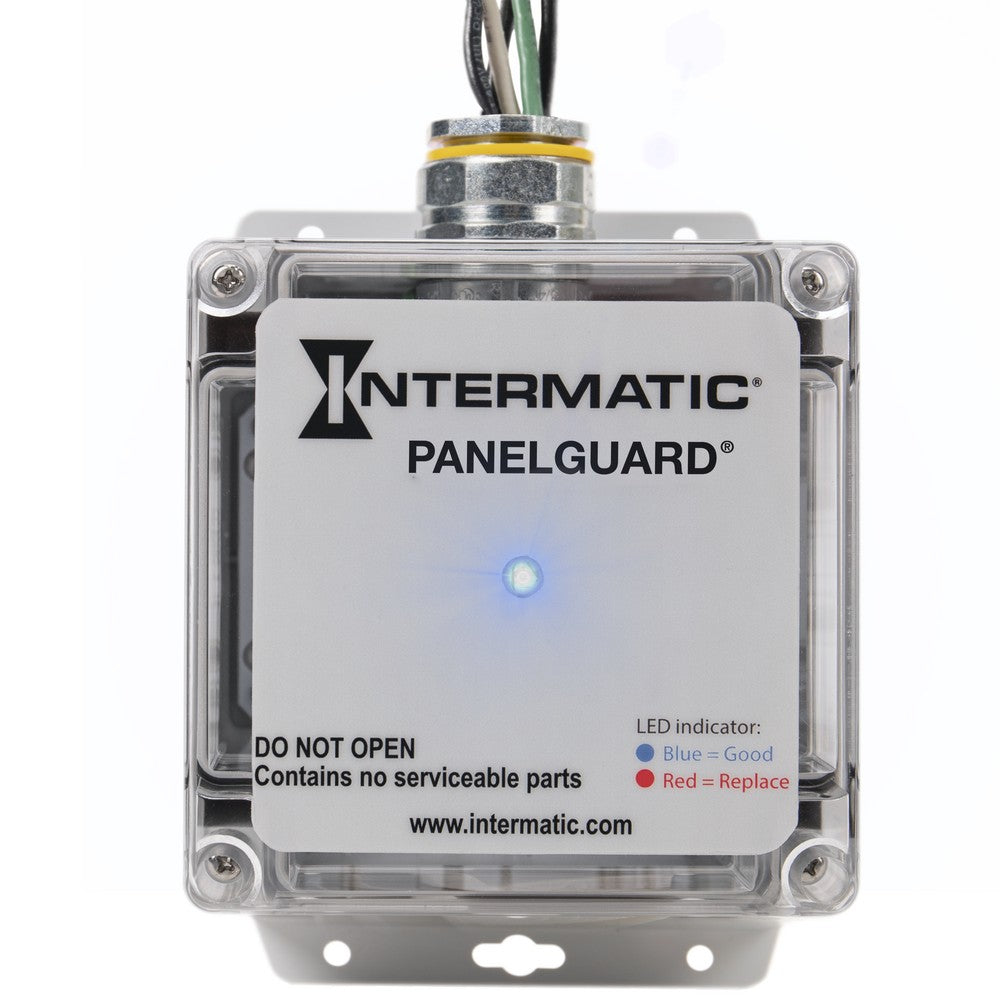

Intermatic 120/240 VAC 4-Mode 50kA Surge Protective Device L5F13D1DG2

Product Overview

The Intermatic L5F13D1DG2 is a Type 1 surge protective device specified for 120/240 VAC 3‑phase high‑leg delta systems. It provides 4‑mode protection and is listed with a surge current rating of 50kA. The product description indicates it includes an audible alarm and a Form C contact for status signaling.

Identifying information: Intermatic part number L5F13D1DG2 and UPC 078275151727.

Key Features

• Voltage: 120/240 VAC (3‑phase high‑leg delta)
• Protection mode: 4‑Mode
• Surge current rating: 50kA
• Type rating: Type 1
• Audible alarm (as indicated in product description)
• Form C contact (as indicated in product description)
• Manufacturer part number / SKU: L5F13D1DG2
• Unit weight: 0.5 lb

What this device protects

The L5F13D1DG2 is specified to provide surge protection for systems using 120/240 VAC in a 3‑phase high‑leg delta configuration. The product description lists a 50kA surge current rating and 4‑mode protection.

• Surge current rating: 50kA (as listed in the product data)
• Typical protection locations identified in product data: service entrance, distribution panels, and equipment

Where it is intended to be used

Product information lists service-entrance and panel surge protection as intended applications and indicates use in commercial and residential electrical systems.

• Applications listed in product data: service entrance surge protection, panel surge protection, equipment protection, contractor stock

Electrical and compatibility details

Confirm compatibility with the electrical system and local codes prior to selection. The listing specifies 120/240 VAC operation in a 3‑phase high‑leg delta system and a Type 1 rating.

• Voltage: 120/240 VAC
• Phase: 3‑phase high‑leg delta (as listed)
• Protection mode: 4‑Mode
• Type rating: Type 1

Status indication and signaling

The product description indicates the unit includes an audible alarm and a Form C contact for status signaling.

• Audible alarm (local indication)
• Form C contact (remote status/contact signaling)

Ordering and verification

Verify the model number and system requirements before ordering. Selection and installation should be performed by a qualified professional in accordance with applicable codes and the authority having jurisdiction.

• Manufacturer part number / SKU: L5F13D1DG2
• UPC: 078275151727
• Master pack quantity: 1; unit weight: 0.5 lb

Before You Order

Confirm the model number, UPC, voltage, phase, and local code requirements before ordering or installing. Selection and installation should be performed by a qualified professional.

• Verify the system is 120/240 VAC 3‑phase high‑leg delta before selecting this SPD
• Provide SKU L5F13D1DG2 to ensure correct catalog matching

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Intermatic 120/240 VAC 4-Mode 50kA Surge Protective Device L5F13D1DG2. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
