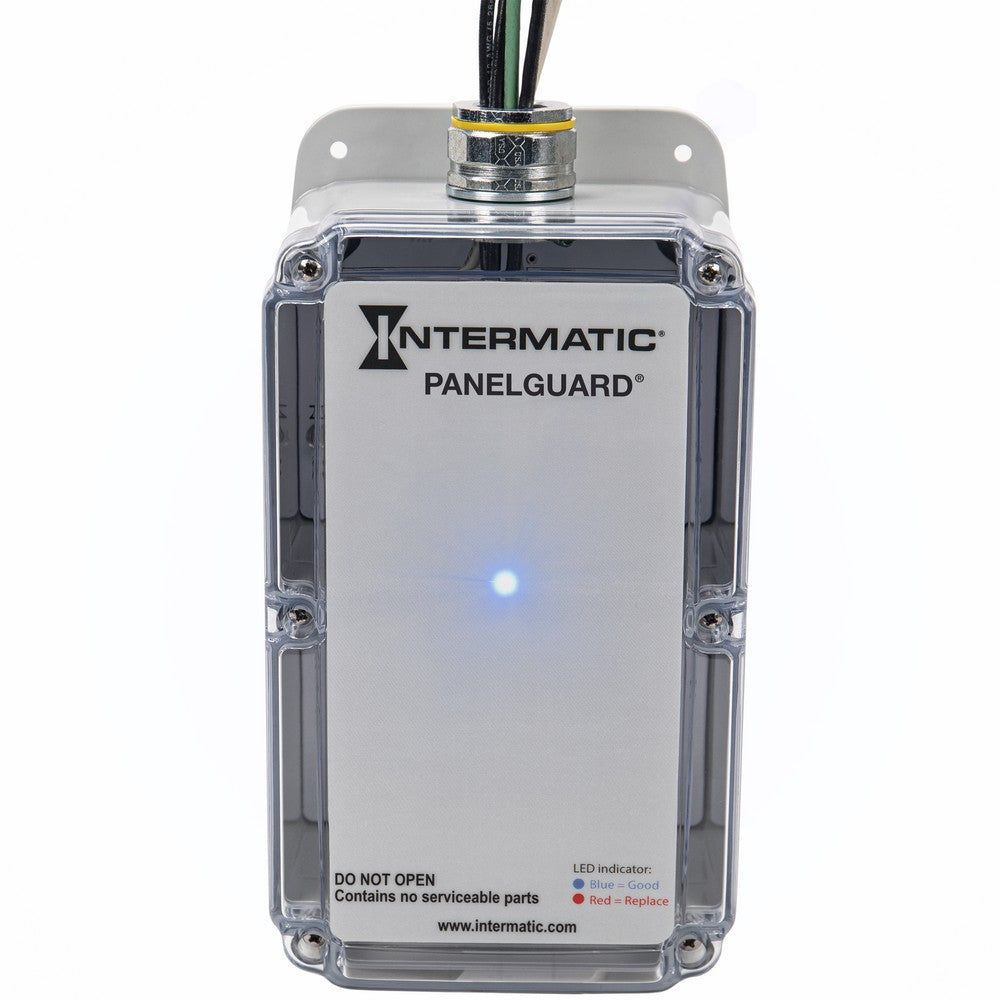

Intermatic 120/208 VAC 4-Mode 100kA Surge Protective Device L10F23Y1DG1

Product Overview

The Intermatic L10F23Y1DG1 is a Type 2 surge protective device rated for 120/208 VAC, 3-phase wye systems. It has a 4-mode configuration and a 100kA surge current rating.

The manufacturer’s product description also identifies an EMI/RFI filter. The model number is L10F23Y1DG1.

Key Features

• 120/208 VAC rating for 3-phase wye systems
• Type 2 surge protective device
• 4-mode configuration with a 100kA surge current rating
• EMI/RFI filter identified in the product description

Electrical Configuration and Surge Rating

The L10F23Y1DG1 is listed for 120/208 VAC and a 3-phase wye configuration. Its surge protection is specified as 4-mode with a 100kA surge current rating.

Type 2 Protection and EMI/RFI Filtering

Intermatic identifies the L10F23Y1DG1 as a Type 2 surge protective device. The product description also lists an EMI/RFI filter.

Before You Order

Confirm that model L10F23Y1DG1 matches the intended electrical configuration and application. Have a qualified professional determine suitability and installation requirements.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Intermatic 120/208 VAC 4-Mode 100kA Surge Protective Device L10F23Y1DG1. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
