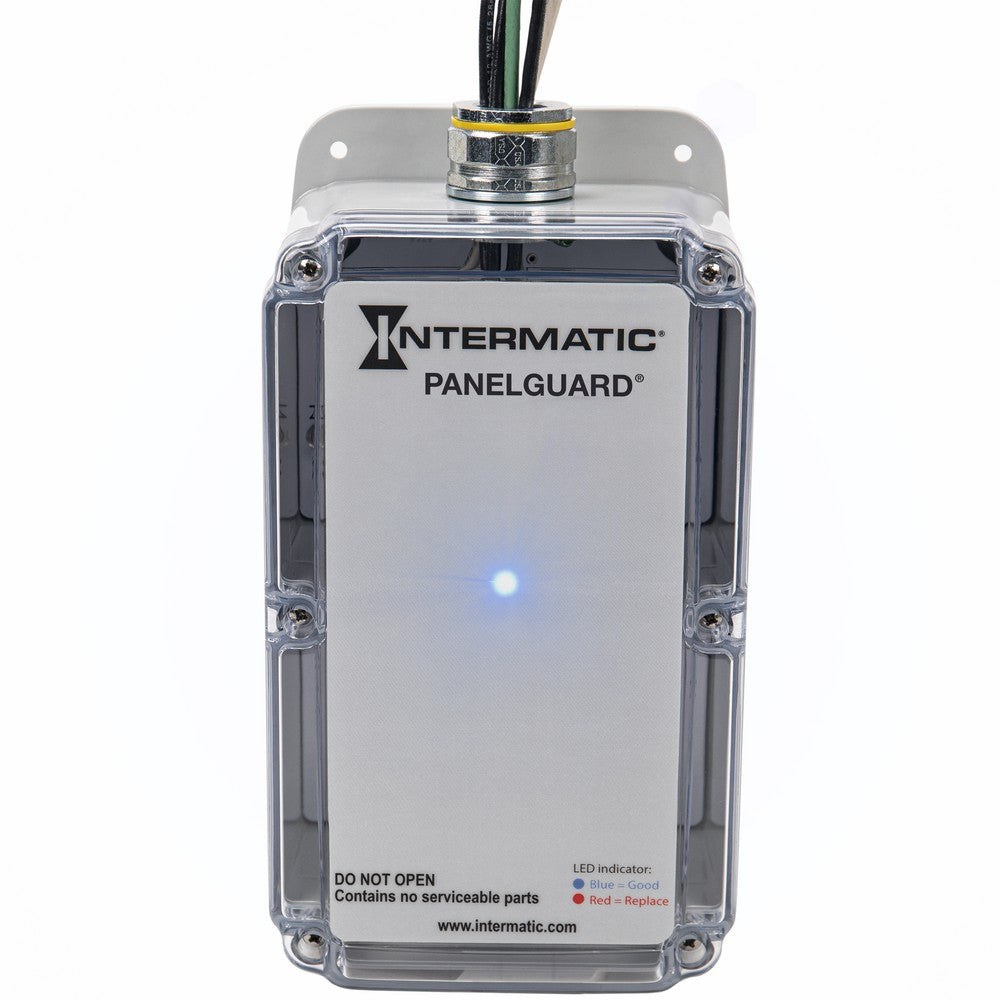

Intermatic 277/480 VAC 4-Mode 100kA Surge Protective Device L10F13Y2DG2

Product Overview

The Intermatic L10F13Y2DG2 is a Type 1 surge protective device rated for 277/480 VAC, three-phase wye systems. It is specified as a 4-mode device with a 100kA surge current rating.

The manufacturer description also identifies an audible alarm and Form C contact. The product data lists service, panel, and equipment surge protection among its applications.

Key Features

• 277/480 VAC, 3-phase wye
• 4-mode configuration and 100kA surge current rating
• Type 1 rating, audible alarm, and Form C contact

Electrical configuration and surge ratings

The L10F13Y2DG2 is listed for 277/480 VAC, 3-phase wye service. Its specified configuration is 4-mode, with a surge current rating of 100kA and a Type 1 rating.

Alarm and contact features

Intermatic’s product description identifies an audible alarm and Form C contact for the L10F13Y2DG2.

Applications and model selection

Listed applications include service entrance, panel, and equipment surge protection, as well as commercial and residential electrical systems. Confirm that the device’s voltage and three-phase wye configuration match the intended application.

Before You Order

Confirm the model number, system voltage, and phase configuration before ordering. Selection and installation should follow the application requirements and local code requirements.

• Electrical products should be selected and installed by a qualified professional.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Intermatic 277/480 VAC 4-Mode 100kA Surge Protective Device L10F13Y2DG2. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
