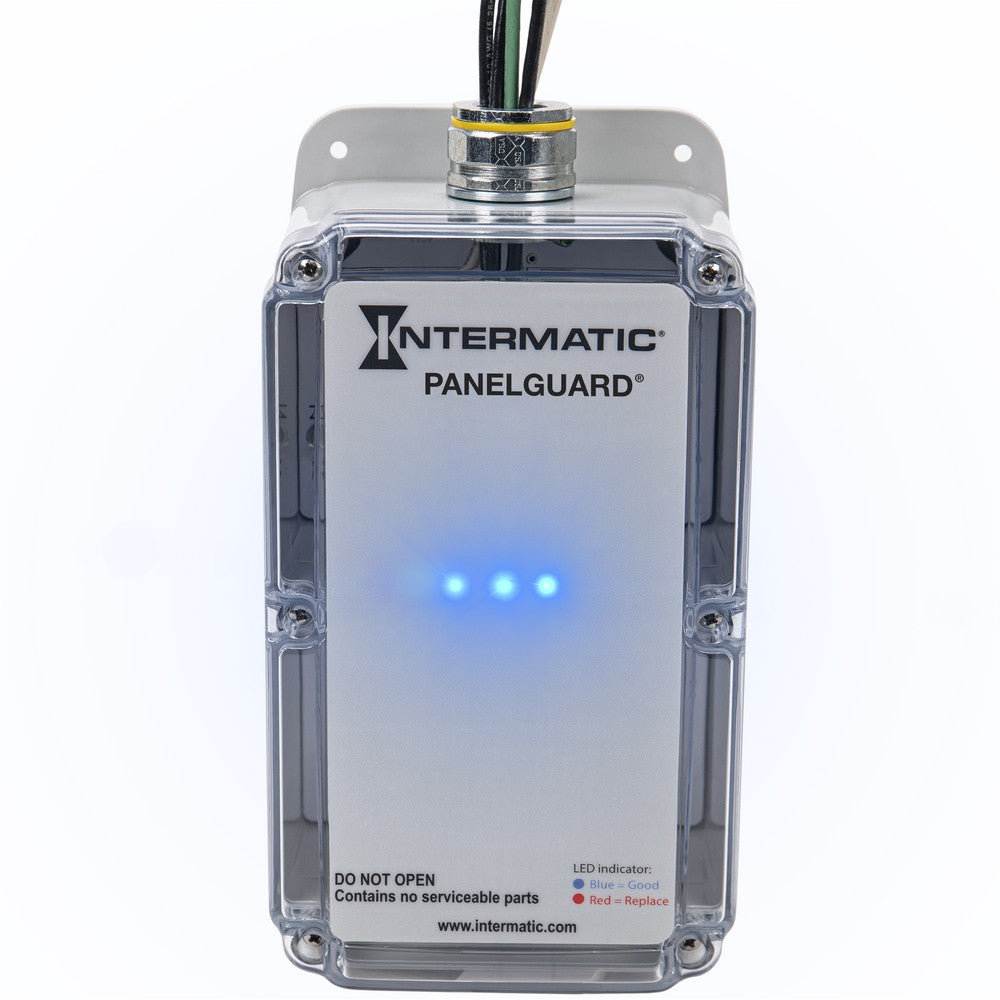

Intermatic 120/240 VAC 7-Mode 100kA Surge Protective Device H10S23D1DG2

Product Overview

The Intermatic H10S23D1DG2 is a Type 2 surge protective device rated for 120/240 VAC, 3-phase high-leg delta systems. It has a 7-mode configuration and a 100kA surge current rating.

The manufacturer’s product description also identifies an EMI/RFI filter, audible alarm, and Form C contact. The device is listed for service entrance, panel, and equipment surge protection applications.

Key Features

• 120/240 VAC, 3-phase high-leg delta
• Type 2 surge protective device with 7 modes
• 100kA surge current rating
• EMI/RFI filter, audible alarm, and Form C contact

Electrical Configuration and Surge Rating

The H10S23D1DG2 is specified for 120/240 VAC, 3-phase high-leg delta systems. Its listed configuration is 7-mode, with a surge current rating of 100kA and a Type 2 rating.

Device Features

This Intermatic surge protective device is described with an EMI/RFI filter, audible alarm, and Form C contact.

Applications and Model Selection

Listed applications include service entrance, panel, and equipment surge protection in residential and commercial electrical systems.

• Match the 120/240 VAC and 3-phase high-leg delta designation to the intended system.
• Confirm the model number H10S23D1DG2 when selecting or reordering.

Before You Order

Confirm that the listed voltage and 3-phase high-leg delta configuration match the intended application. Electrical products should be selected and installed according to the application and local code requirements.

• Verify the model number: H10S23D1DG2.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Intermatic 120/240 VAC 7-Mode 100kA Surge Protective Device H10S23D1DG2. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
