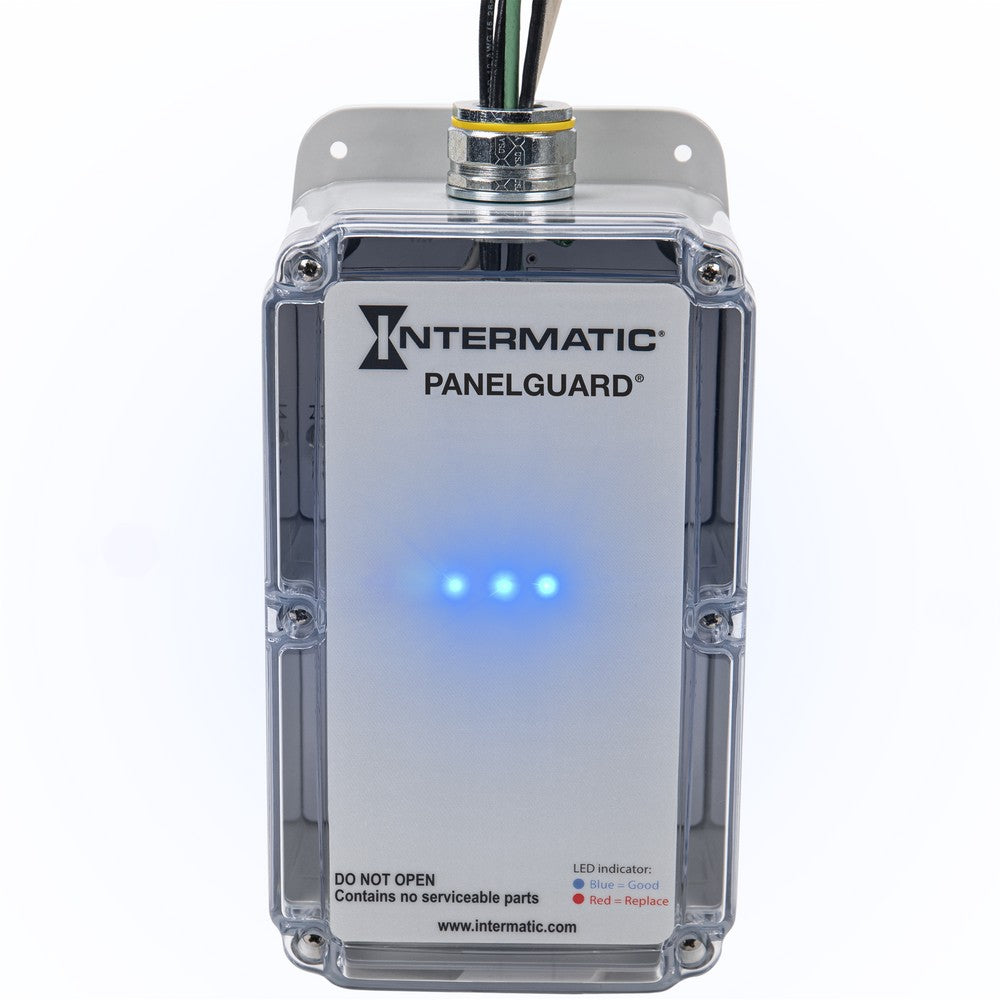

Intermatic 277/480 VAC 7-Mode 100kA Surge Protective Device H10S13Y2DG1

Product Overview

The Intermatic H10S13Y2DG1 is a Type 1 surge protective device rated for 277/480 VAC three-phase wye systems. It has a 7-mode configuration and a 100kA surge current rating.

Intermatic identifies this model for surge protection in panel, service and equipment applications. Its manufacturer part number is H10S13Y2DG1.

Key Features

• Rated for 277/480 VAC, three-phase wye
• 7-mode surge protection configuration
• 100kA surge current rating
• Type 1 device

Electrical Configuration and Surge Ratings

The H10S13Y2DG1 is specified for 277/480 VAC, three-phase wye service. Its listed configuration is 7-mode, with a surge current rating of 100kA and a Type 1 rating.

• Voltage: 277/480 VAC
• Phase: 3-phase wye
• Surge modes: 7
• Surge current rating: 100kA
• Type rating: Type 1

Surge Protection Applications

Intermatic identifies this surge protective device for panel, service and equipment protection applications. The product information also lists commercial and residential electrical systems among its applications.

Confirming the H10S13Y2DG1 Model

Use the manufacturer part number H10S13Y2DG1 to identify this specific Intermatic device. The listed UPC is 078275152113.

Before You Order

Confirm that the H10S13Y2DG1 model, 277/480 VAC rating and three-phase wye configuration match the intended application. Electrical products should be selected and installed by a qualified professional in accordance with applicable local requirements.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Intermatic 277/480 VAC 7-Mode 100kA Surge Protective Device H10S13Y2DG1. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
