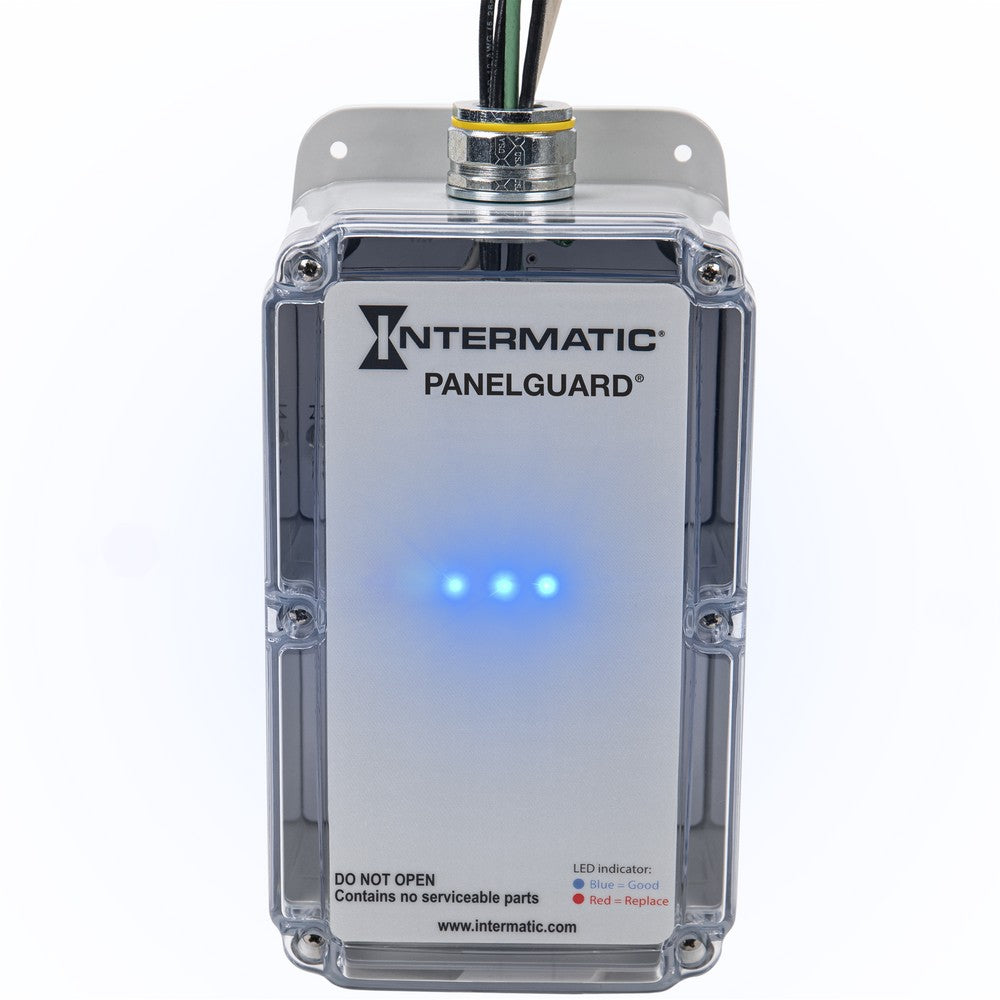

Intermatic 120/208 VAC 7-Mode 100kA Surge Protective Device H10S13Y1DG1

Product Overview

The Intermatic H10S13Y1DG1 is a surge protective device listed for 120/208 VAC 3‑phase Y systems. It is described with 7‑mode protection, a Type 1 designation, and a listed surge current rating of 100kA.

The product is presented for service-entrance, panel, and equipment surge protection in commercial and residential electrical applications. Confirm model, voltage, phase, and local code requirements before installation.

Key Features

• Model: H10S13Y1DG1 (Intermatic)
• Voltage: 120/208 VAC
• Mode: 7‑Mode surge protection
• Surge current rating: 100kA
• Type rating: Type 1
• Phase: 3‑phase Y (as listed)
• UPC: 078275152076
• Unit weight: 0.6 lb
• Master pack quantity: 1

What this device protects

The H10S13Y1DG1 is listed to address transient overvoltages (surges) affecting electrical distribution panels and connected equipment. The listed 7‑mode configuration corresponds to multiple line-to-line and line-to-ground protection paths for 3‑phase Y systems.

• Protects distribution panels and downstream connected equipment from transient voltage events (per manufacturer listing)
• Listed for use with 120/208 VAC 3‑phase Y systems

Electrical ratings and system compatibility

This product is listed with the following electrical attributes. Verify these against your site conditions and applicable codes before selecting the device.

• Voltage: 120/208 VAC
• Phase: 3‑phase Y (as listed)
• Mode: 7‑Mode
• Surge current rating: 100kA (as listed)
• Type rating: Type 1

Typical applications

The manufacturer listing identifies service-entrance, panel, and equipment surge protection among intended applications. These application descriptions are based on the product listing.

• Service entrance surge protection (as listed)
• Panel surge protection (as listed)
• Equipment protection (as listed)
• Suitable for commercial and residential systems where the listed voltage and phase apply

Selection and installation notes

Confirm the exact model number, listed voltage, phase, and local electrical code requirements before purchase and installation. Electrical products should be selected and installed by a qualified professional in accordance with the authority having jurisdiction.

• Verify model H10S13Y1DG1 against site voltage and phase
• Have a qualified electrician review installation location and code compliance
• Confirm quantities needed for your panel or project configuration

Before You Order

Confirm the model number H10S13Y1DG1, system voltage and phase, and applicable local code requirements before ordering. Installation should be performed by a qualified professional.

• Verify compatibility with your 120/208 VAC 3‑phase Y system
• Confirm quantity required for your project

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Intermatic 120/208 VAC 7-Mode 100kA Surge Protective Device H10S13Y1DG1. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
