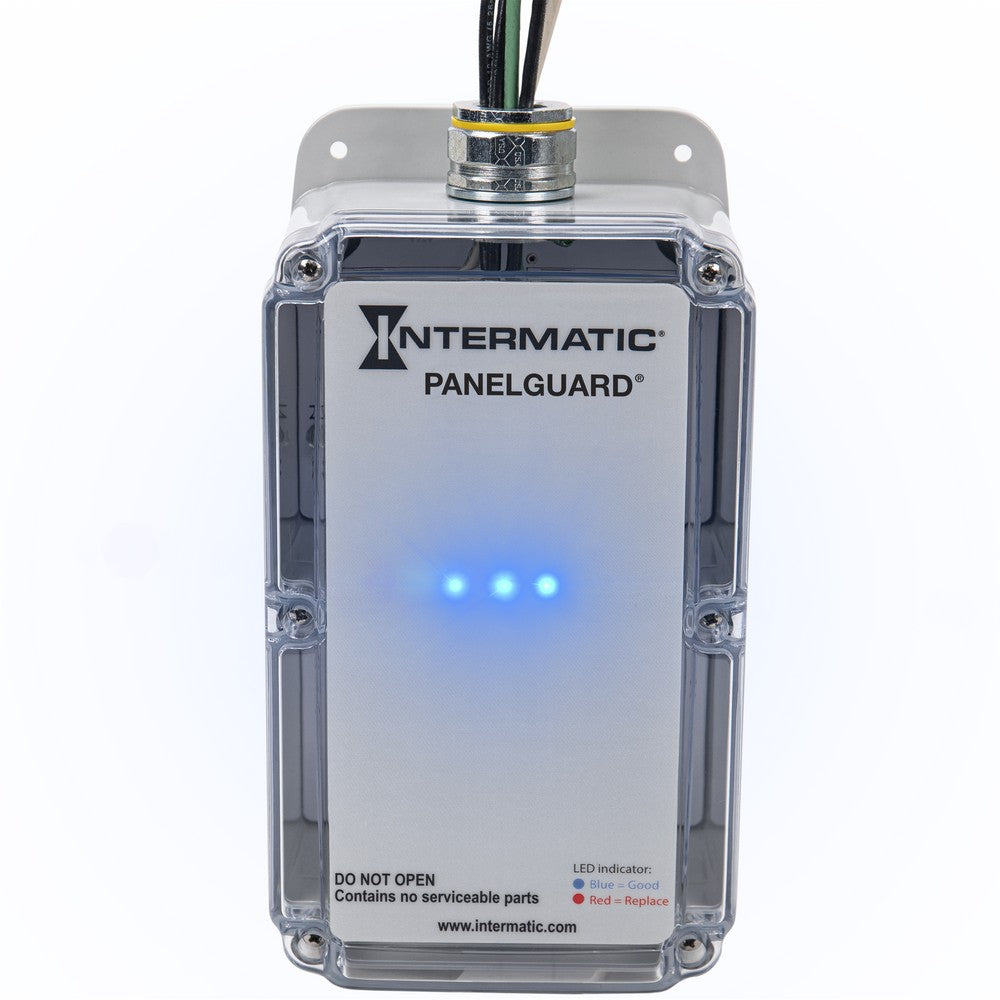

Intermatic 120/240 VAC 7-Mode 100kA Surge Protective Device H10S13D1DG1

Product Overview

The Intermatic H10S13D1DG1 is a Type 1 surge protective device rated for 120/240 VAC, 3-phase high leg delta service. It has seven surge modes and a 100kA surge current rating.

This model is identified for surge protection in service, panel, and equipment applications. Verify that its voltage and phase configuration match the electrical system and intended application.

Key Features

• Type 1 surge protective device
• 120/240 VAC rating
• Specified for 3-phase high leg delta
• Seven-mode configuration
• 100kA surge current rating

Electrical Configuration and Surge Ratings

The H10S13D1DG1 is rated for 120/240 VAC and identified for 3-phase high leg delta service. Its listed configuration is 7-mode, with a surge current rating of 100kA.

• Type rating: Type 1
• Voltage: 120/240 VAC
• Phase: 3-phase high leg delta
• Surge modes: 7
• Surge current rating: 100kA

Where the H10S13D1DG1 Is Used

This surge protective device is listed for service entrance, panel, and equipment surge protection applications. The product data also identifies residential and commercial electrical systems as application contexts.

Model Identification

The exact Intermatic model and manufacturer part number is H10S13D1DG1. Use this identifier when matching the product to a project specification or reorder.

Before You Order

Confirm the model number and quantity required before ordering. Before installation, verify that the voltage and phase configuration suit the application. Electrical products should be selected and installed by a qualified professional in accordance with the application and authority having jurisdiction.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Intermatic 120/240 VAC 7-Mode 100kA Surge Protective Device H10S13D1DG1. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
