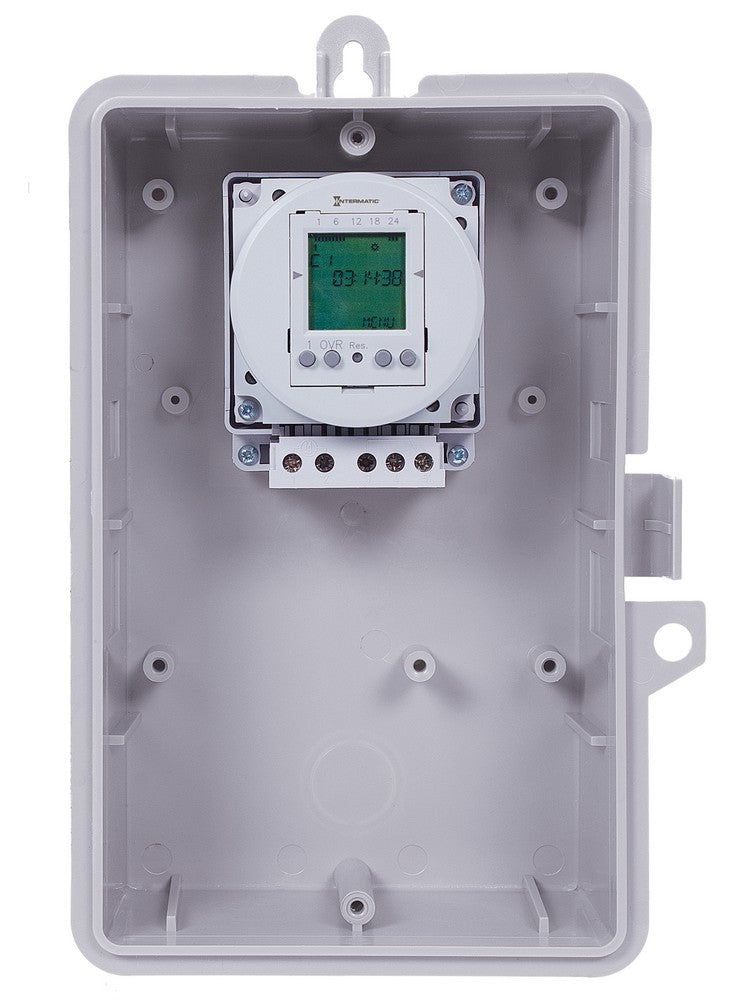

Intermatic 120-277V 15A Indoor Electronic Time Control GMXFM1D20-I-AV

Product Overview

The Intermatic GMXFM1D20-I-AV is an electronic time control for scheduled load management offering 24-hour or 7-day scheduling with up to 20 setpoint programs.

Rated for 120–277V operation with 15A switching, the unit has an SPDT output and is supplied in a Type 1 indoor plastic enclosure.

Key Features

• Voltage range: 120–277V
• Switching capacity: 15A
• Programs: 20 setpoint programs (24-hour or 7-day operation)
• Switch configuration: SPDT (single pole double throw)
• Enclosure: Type 1 indoor plastic enclosure
• UPC: 078275157927; Manufacturer Part Number: GMXFM1D20-I-AV

What this time control does

The GMXFM1D20-I-AV provides programmed on/off scheduling using 24-hour or 7-day modes and stores up to 20 setpoint programs to automate electrical loads.

• 20 setpoint programs for scheduled control
• Selectable 24-hour or 7-day operation

Voltage, amperage and switching

Electrical ratings are listed for verification against the installation circuit and load.

• Voltage: 120–277V
• Amperage: 15A
• Switch configuration: SPDT (single pole double throw)

Typical applications

The product is intended for indoor scheduled load control in commercial and facility settings where a Type 1 indoor enclosure is acceptable.

• Lighting control
• Commercial buildings and facilities
• Replacement and contractor stock

Installation notes and compatibility

Confirm the model, voltage, amperage, enclosure rating, and switch configuration before selecting and installing this device. Electrical products should be selected and installed by a qualified professional in accordance with local codes.

• Verify model GMXFM1D20-I-AV and UPC match the required item
• Confirm Type 1 indoor enclosure is suitable for the installation location
• Have a qualified electrician verify circuit compatibility and perform installation

Weight and packaging information

Weights and pack quantities are provided for procurement and shipping planning.

• Unit weight: 1.587 lb
• Master pack weight: 9.522 lb
• Pallet quantity: 108; Pallet weight: 171.396 lb

Before You Order

Confirm the model number and required quantity before ordering and ensure the listed voltage, amperage, enclosure rating, and SPDT switching meet your installation needs.

• Product is Type 1 indoor rated—confirm indoor suitability for your site.
• Have a qualified electrician verify circuit compatibility and install the device.
