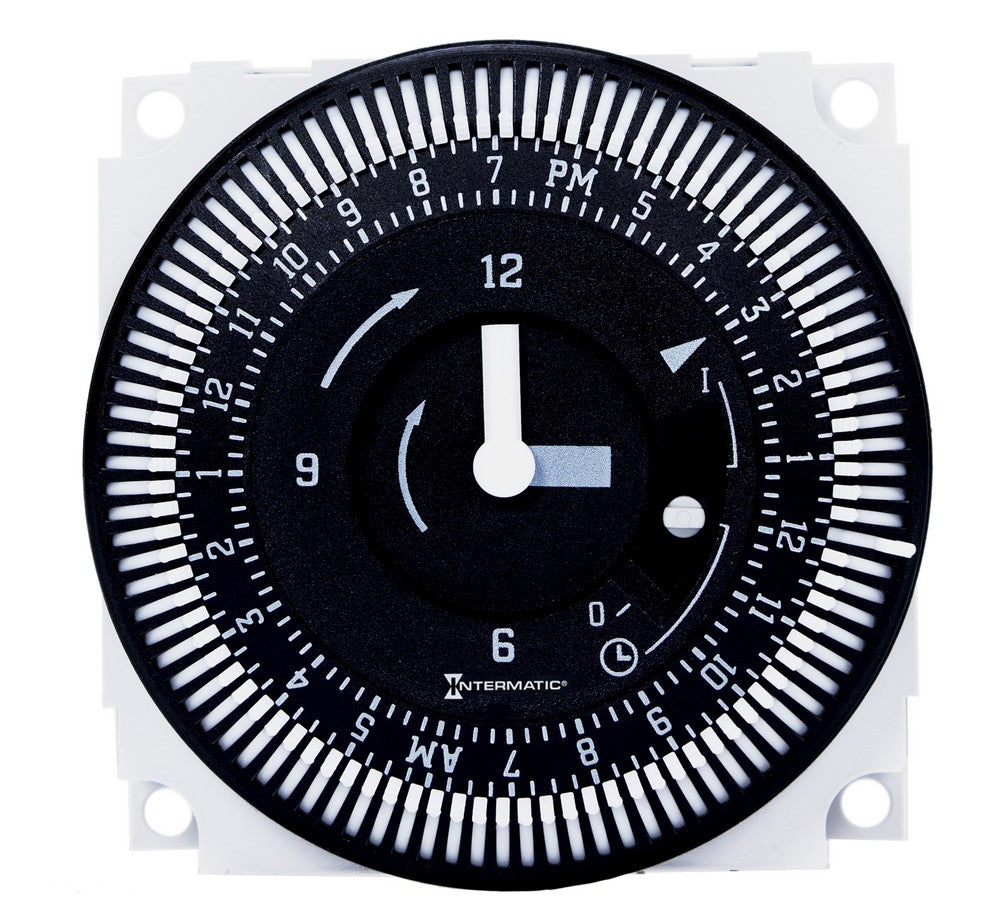

Intermatic 208/240V 21A 24-Hour Electromechanical Panel Mount Timer Module FM1STUZH-240U
Description
Product Overview
The Intermatic FM1STUZH-240U is an electromechanical panel-mount timer module providing a 24-hour dial with 15-minute intervals and an SPDT contact arrangement for time-based switching.
Manufacturer identifiers and packing data: model FM1STUZH-240U, UPC 078275152830, product category code GM, unit weight 0.22 lb.
Key Features
- Voltage: 208/240V
- Amperage rating: 21A
- Schedule: 24-hour dial with 15-minute intervals
- Switching configuration: SPDT (single-pole, double-throw)
- Mounting: panel mount
- Manufacturer UPC: 078275152830
Function and intended use
This electromechanical timer module provides basic time-of-day switching for scheduled load control. Typical uses include lighting and equipment on/off scheduling in applications where the device's electrical ratings and mounting type are appropriate.
- Common uses: scheduled load control, lighting control, equipment scheduling, panel replacements where specifications match.
Electrical ratings and switching
Verify the module’s electrical ratings against the intended load. The FM1STUZH-240U is listed with a 208/240V rating, a 21A amperage value, and an SPDT contact configuration.
- Voltage: 208/240V
- Amperage: 21A
- Contact: SPDT (single-pole, double-throw)
Schedule details and timing resolution
The timer uses a 24-hour dial with 15-minute increments for on/off programming suitable for straightforward daily schedules.
- Schedule range: 24-hour dial
- Interval resolution: 15-minute increments
Mounting notes
The product is described for panel mounting. Confirm physical mounting requirements and enclosure suitability before installation.
- Mounting type: Panel mount
- Have installations performed by a qualified professional in accordance with local electrical codes
Identification and ordering
Use the manufacturer part number and UPC to ensure an exact match when ordering or replacing components.
- Manufacturer Part Number (SKU): FM1STUZH-240U
- UPC: 078275152830
- Product category code: GM
Before You Order
Confirm the model number, voltage, amperage, mounting style, and contact configuration against your panel design and load requirements before ordering.
- Verify FM1STUZH-240U compatibility with your panel and load (208/240V, 21A, SPDT).
- Confirm UPC 078275152830 when matching or replacing parts.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Intermatic 208/240V 21A 24-Hour Electromechanical Panel Mount Timer Module FM1STUZH-240U. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Intermatic |
|---|---|
| SKU | FM1STUZH-240U |
| Product type | Electromechanical Panel Mount Timer Module |
| Voltage | 208/240V |
| Ampere Rating | 21A |
| Schedule / Interval | 24-Hour, 15 Minute Intervals |
| Switching configuration | SPDT |
| Mounting type | Panel Mount |
| UPC | 078275152830 |
| Product category code | GM |
| Unit weight | 0.22 lb |
