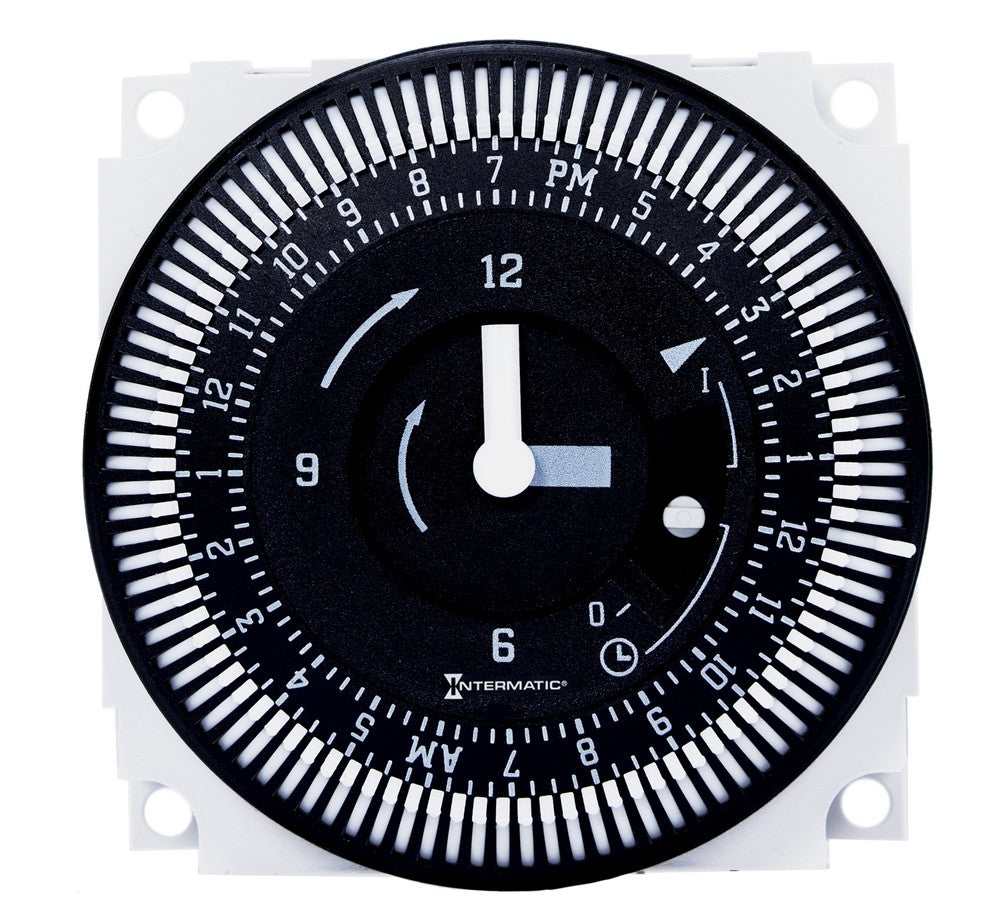

Intermatic 120V 21A 24-Hour Electromechanical Panel Mount Timer Module FM1STUZH-120U

Product Overview

The Intermatic FM1STUZH-120U is an electromechanical panel-mount timer module for scheduled load control and replacement projects. Manufacturer-listed details include 120V rating, 21A switching capacity, SPDT contact configuration, and a 24-hour dial with 15-minute intervals.

Part identifiers: Intermatic part number FM1STUZH-120U and UPC 078275152847. Unit weight is listed as 0.22 lb.

Key Features

• 120V voltage rating
• 21A switching capacity
• 24-hour dial with 15-minute intervals
• SPDT (single pole, double throw) contact configuration
• Panel-mount form factor (model FM1STUZH-120U)
• UPC 078275152847

Function and intended use

The FM1STUZH-120U is described by the manufacturer as an electromechanical timer module for scheduled load control and replacement applications. The manufacturer listing includes common application categories such as lighting and equipment control.

• Typical listed uses: scheduled load control, lighting control, equipment control, and replacement projects.

Electrical ratings

Manufacturer-listed electrical specifications identify a 120V rating and a 21A switching capacity. Use these values to determine suitability for the intended load.

• Voltage: 120V
• Amperage: 21A (manufacturer-listed switching rating)

Contact configuration and scheduling

The unit is listed with an SPDT contact arrangement and a 24-hour dial divided into 15-minute intervals for on/off scheduling.

• Contact configuration: SPDT
• Schedule: 24-hour dial with 15-minute intervals

Mounting and physical details

The FM1STUZH-120U is specified as a panel-mount timer module. The manufacturer lists the unit weight as 0.22 lb.

• Mounting type: Panel mount
• Unit weight: 0.22 lb (manufacturer listing)

Ordering and pre-purchase checks

Confirm the exact model number, voltage, amperage, mounting style, and contact configuration before ordering. Electrical products should be selected and installed by a qualified professional in accordance with applicable codes.

• Model / SKU: FM1STUZH-120U
• UPC: 078275152847
• Product category code: GM

Before You Order

Confirm the model number and that the listed voltage, amperage, contact configuration, and mounting style meet your requirements.

• Verify voltage, amperage, and contact configuration for the intended load.
• Ensure the panel or enclosure accepts a panel-mount module.
• Have a qualified professional perform selection and installation per applicable codes.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Intermatic 120V 21A 24-Hour Electromechanical Panel Mount Timer Module FM1STUZH-120U. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
