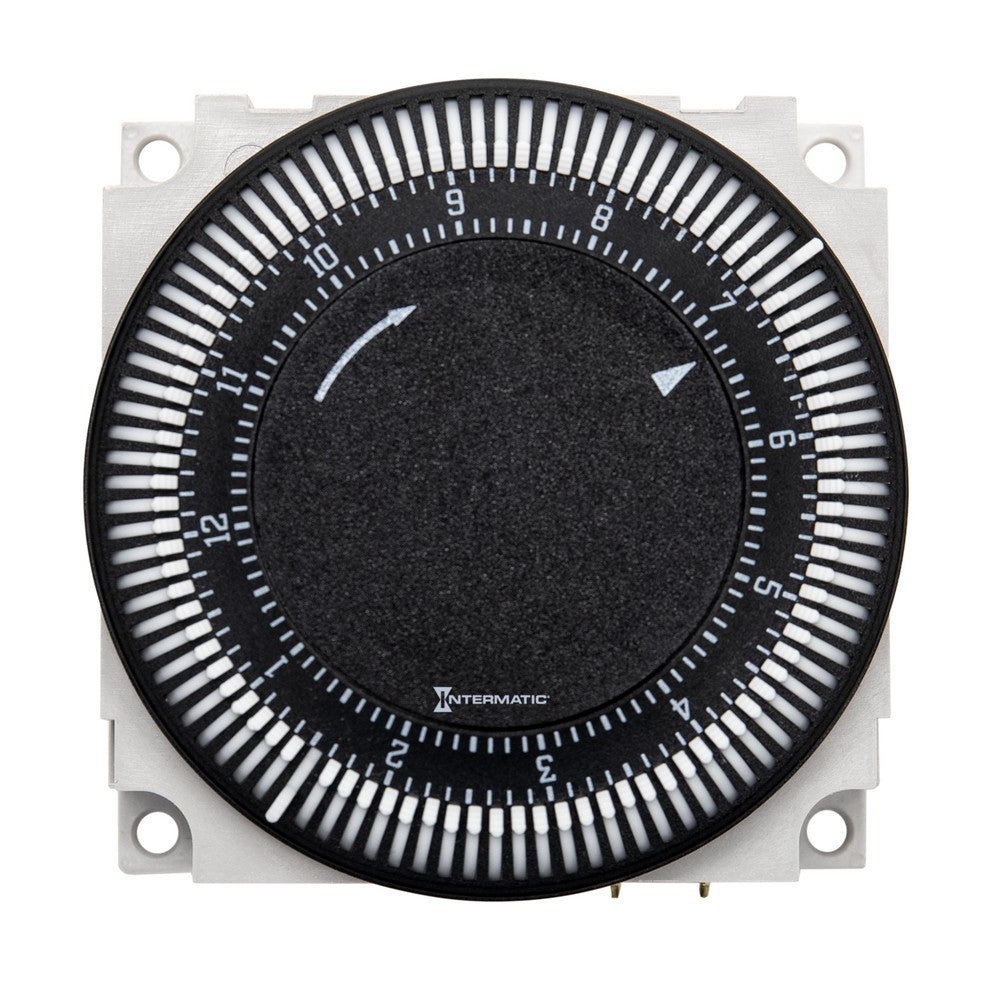

Intermatic 120V 21A 12-Hour Timer Control Module FM1S12HU-120U

(No Ratings)
SKU: FM1S12HU-120U
Price: $105.89
Free shipping on orders over $1,500

Description

Product Overview

The Intermatic FM1S12HU-120U is a panel-mount timer control module with a 12-hour scheduling cycle and 5-minute intervals. It is rated 120V and 21A and uses an SPDT contact configuration.

SKU FM1S12HU-120U (UPC 078275152953) is listed for use in electrical maintenance, replacement projects, contractor stock, and new construction where matching voltage, amperage, mounting style, and contact configuration is required.

Key Features

  • Model: FM1S12HU-120U (Intermatic)
  • Voltage rating: 120V
  • Current rating: 21A
  • Schedule: 12-hour cycle with 5-minute intervals
  • Switching configuration: SPDT (single pole double throw)
  • Mounting: panel mount
  • UPC: 078275152953

What this timer does

The FM1S12HU-120U provides time-based switching on a 12-hour cycle with 5-minute intervals. Its SPDT contact provides a single-pole changeover output for timed control.

  • 12-hour scheduling range with 5-minute increments
  • SPDT output for changeover (single-pole double-throw)

Electrical ratings and switching

This module is listed with a voltage rating of 120V and an amperage rating of 21A. The SPDT contact configuration offers a single-pole changeover for switching circuits. Verify these ratings against your load requirements.

  • Voltage: 120V
  • Amperage: 21A
  • Switching configuration: SPDT

Mounting and installation considerations

The product is specified as panel mount. Confirm mounting style and enclosure requirements before installation, and follow applicable local codes.

  • Mounting type: panel mount
  • Confirm enclosure and wiring accommodations before fitting

Intended applications

This Intermatic timer module is listed for electrical maintenance, replacement projects, contractor stock, and new construction where a compact panel-mounted time control with a 12-hour schedule is required.

  • Electrical maintenance and replacements
  • Contractor inventory and jobsite spares
  • New construction control panels

Ordering and verification

Before ordering, confirm the model number, UPC, voltage, amperage, mounting style, and contact configuration to ensure compatibility with your application.

  • Manufacturer part number: FM1S12HU-120U
  • UPC: 078275152953

Before You Order

Confirm the model number and electrical and mounting requirements before ordering; have installations performed or verified by a qualified professional.

  • Verify model: FM1S12HU-120U and UPC 078275152953
  • Confirm voltage (120V) and amperage (21A) match your loads
  • Confirm panel-mount compatibility and enclosure requirements

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Intermatic 120V 21A 12-Hour Timer Control Module FM1S12HU-120U. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandIntermatic
SKUFM1S12HU-120U
Voltage120V
Ampere Rating21A
Schedule / Interval12-Hour, 5 Minute Intervals
Switching ConfigurationSPDT
Mounting TypePanel Mount
UPC078275152953
Category CodeGM
Weight0.22 lb
Master Pack Quantity1
