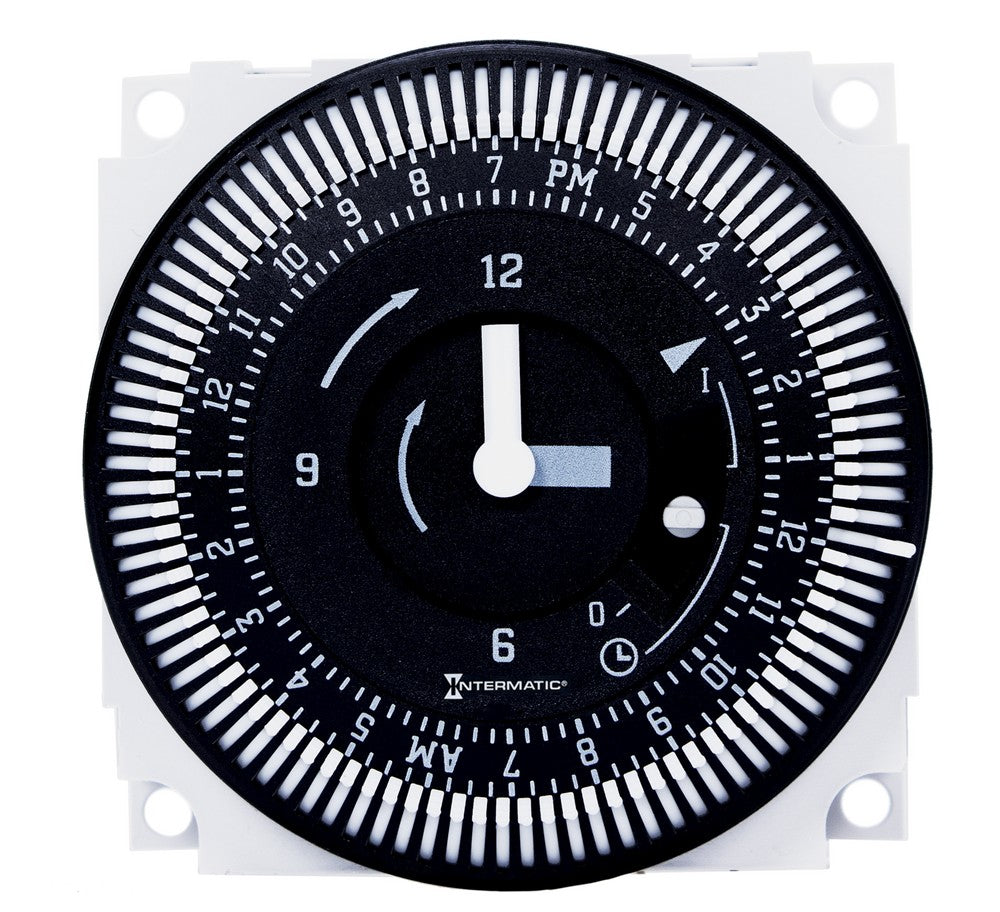

Intermatic 120V 21A 24-Hour Electromechanical Panel Mount Timer Module FM1QTUZH-120U

Product Overview

The Intermatic FM1QTUZH-120U is an electromechanical panel‑mount timer module designed for scheduled load control. It provides a 24‑hour timing dial with 15‑minute intervals and an SPDT contact configuration.

This module is rated 120V and 21A and is intended for panel, surface, DIN‑rail, or flush mounting where the listed voltage, amperage and contact type match the control design.

Key Features

• Model: FM1QTUZH-120U (Intermatic)
• Voltage rating: 120V
• Current rating: 21A
• Timing: 24‑hour dial with 15‑minute intervals
• Switching configuration: SPDT (single pole, double throw)
• Mounting type: panel mount (suitable for panel, surface, DIN rail, or flush applications as specified)

Function and Intended Use

This electromechanical timer module provides simple, repeatable time‑based switching for control panels and equipment. It is intended for scheduled load control tasks such as turning lighting or equipment on and off on a daily schedule.

• Designed as a panel mount timing control module
• Mechanical 24‑hour dial for daily schedules
• Suitable where a fixed daily schedule and SPDT switching are acceptable

Electrical Ratings and Contact Type

Use this module only where the listed electrical ratings and contact type match the application.

• Voltage: 120V
• Amperage: 21A
• Switching configuration: SPDT (single pole, double throw)

Timing and Scheduling Details

The FM1QTUZH-120U uses a 24‑hour timing dial with 15‑minute intervals, allowing routine on/off events throughout each day on a fixed daily program.

• Schedule: 24‑hour repeating dial
• Interval resolution: 15 minutes

Mounting and Installation Notes

The manufacturer lists this model as panel mount and notes compatibility with panel, surface, DIN‑rail, or flush mounting when the voltage, amperage, mounting style and device configuration align with the control panel design.

• Mounting type: panel mount (compatible mounting styles listed by manufacturer)
• Confirm enclosure rating and mounting method to suit your panel design
• Electrical selection and installation should be performed by a qualified professional in accordance with local code requirements

Typical Applications

This timer module is suitable for scheduled load control in commercial and facility settings where mechanical time switching is required.

• Lighting control
• Equipment control
• Scheduled building systems in commercial buildings
• Facility maintenance and replacement projects

Before You Order

Confirm the model number, voltage, amperage, mounting style and contact configuration match your application before ordering. Electrical products should be selected and installed by a qualified professional according to local codes and the authority having jurisdiction.

• Verify FM1QTUZH-120U is the correct Intermatic model for your panel or replacement project
• Confirm the 120V and 21A ratings are suitable for the intended load
• Check mounting method (panel/surface/DIN/flush) and enclosure requirements

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Intermatic 120V 21A 24-Hour Electromechanical Panel Mount Timer Module FM1QTUZH-120U. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
