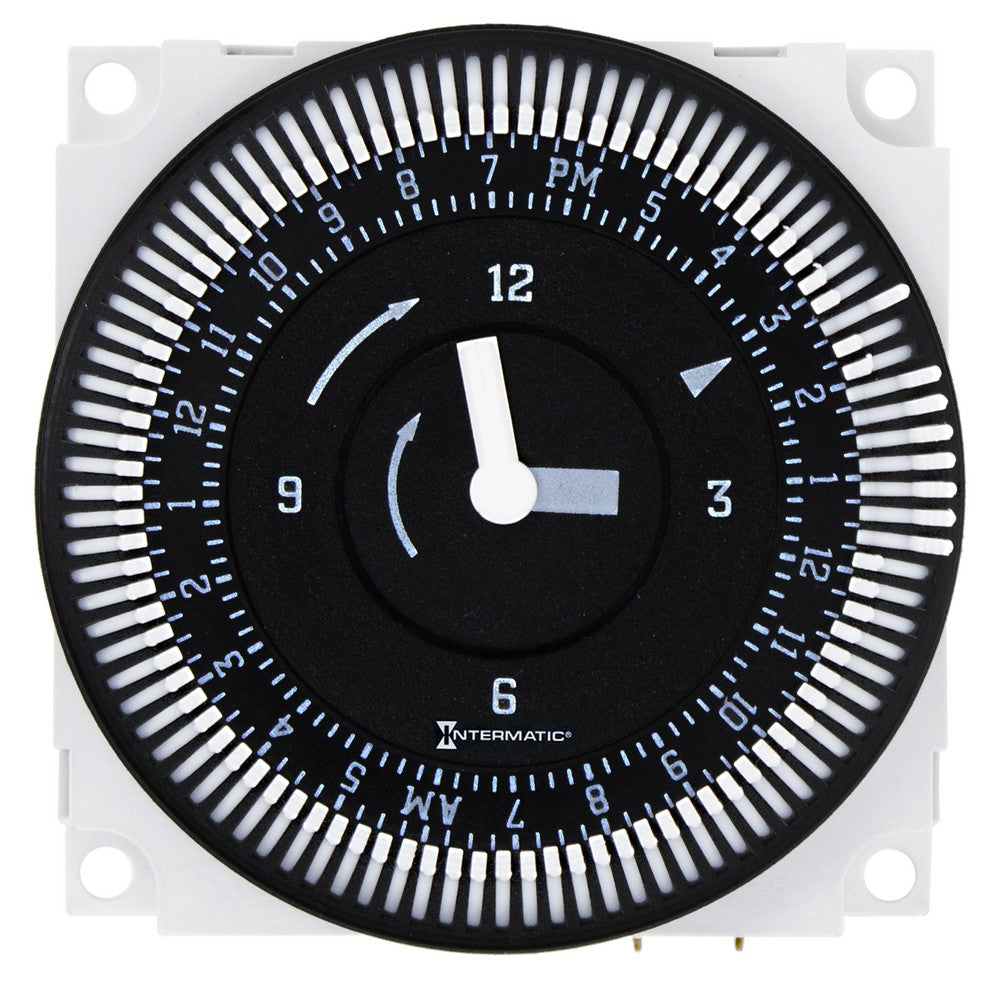

Intermatic 12/24V 21A 24-Hour Electromechanical Panel Mount Timer Module FM1QTUZ-24U

Product Overview

The Intermatic FM1QTUZ-24U is an electromechanical panel‑mount timer module for repeating 24‑hour on/off scheduling. The manufacturer data lists a 12/24V control voltage, 21A switching capacity, SPDT contact configuration, and a 24‑hour dial with 15‑minute intervals.

The product is cataloged under Intermatic category code GM and UPC 078275152571. It is intended for use where the listed voltage, amperage, mounting style, and contact configuration match the control design.

Key Features

• Model: FM1QTUZ-24U (Intermatic)
• Control voltage: 12/24V
• Switching capacity: 21A
• Schedule: 24‑hour dial with 15‑minute intervals
• Contact configuration: SPDT
• Mounting type: Panel mount
• UPC: 078275152571

Function and primary use

This electromechanical module provides repeating 24‑hour on/off scheduling using a mechanical dial. The listing indicates suitability for scheduled load control and timed equipment operation where the unit's electrical and mechanical specifications match the application.

Electrical ratings and switching configuration

Refer to the listed ratings to confirm compatibility with your control circuit and load.

• Control voltage: 12/24V (as listed)
• Switching capacity: 21A (as listed)
• Contact configuration: SPDT

Timing intervals and schedule

The device uses a 24‑hour repeating dial with 15‑minute intervals, allowing multiple on/off settings per day via the mechanical trippers or segments described in the product listing.

• 24‑hour repeating cycle
• 15‑minute interval increments

Mounting and installation considerations

The product is specified as a panel‑mount module. Confirm that panel cutouts, enclosure accommodations, and the intended mounting method (panel, surface, DIN‑rail or flush, as applicable) match your equipment before installation.

• Mounting type: Panel mount
• Confirm enclosure fit and mounting cutout prior to install
• Installation and final selection should be performed by a qualified professional in accordance with local codes

Ordering and identification

Use the manufacturer part number and UPC to ensure accurate ordering and inventory matching.

• Manufacturer part number: FM1QTUZ-24U
• UPC: 078275152571
• Product category code: GM

Before You Order

Confirm the model number and electrical ratings against your panel design and load requirements before ordering.

• Verify control voltage (12V or 24V) and that 21A switching capacity suits the load.
• Confirm mounting cutout and panel compatibility.
• Match the contact configuration (SPDT) to your control circuit.
