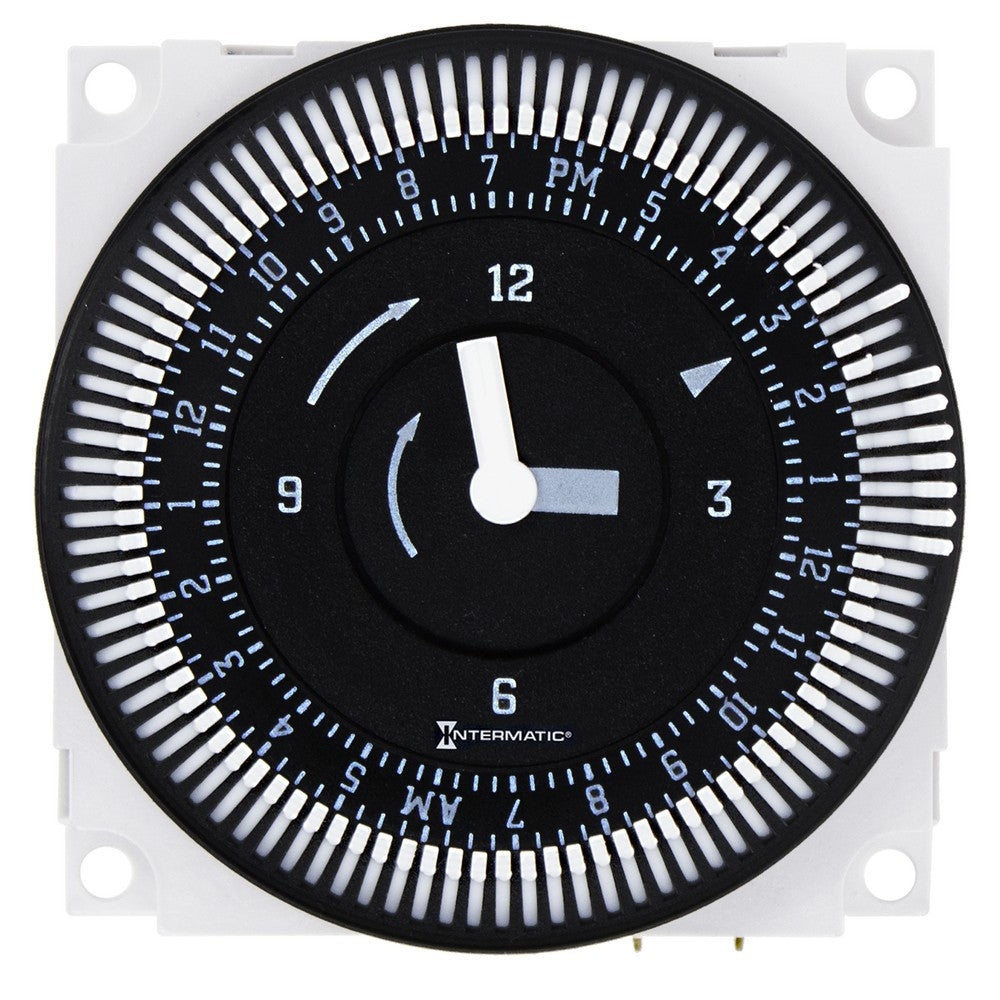

Intermatic 120V 21A 24-Hour Electromechanical Panel Mount Timer Module FM1QTUZ-120

Product Overview

The Intermatic FM1QTUZ-120 is an electromechanical panel-mount timer module used for scheduled load control.

It is listed with a 120V rating, 21A amperage, SPDT contact configuration, and a 24-hour dial with 15-minute intervals.

Key Features

• Model: FM1QTUZ-120
• Voltage: 120V
• Amperage: 21A
• Schedule: 24-hour dial with 15-minute intervals
• Switching: SPDT contact configuration
• Mounting: Panel mount
• UPC: 078275155671

Function and intended use

The FM1QTUZ-120 is an electromechanical timing control specified for scheduled load control and on/off switching. The manufacturer data lists applications including lighting and equipment control.

• Applications listed: scheduled load control, lighting control, equipment control, commercial buildings, facility maintenance, replacement projects

Electrical ratings and switching

Manufacturer data lists the FM1QTUZ-120 with a 120V rating and 21A amperage, and an SPDT switching configuration. Use these values to verify compatibility with the circuit and load.

• Voltage: 120V
• Amperage: 21A
• Switching configuration: SPDT (single pole double throw)

Timing schedule and resolution

The product is listed with a 24-hour dial and 15-minute intervals for repeating daily schedules. It is a mechanical electromechanical schedule rather than a digital program.

• Schedule type: 24-hour dial
• Interval resolution: 15 minutes

Mounting and installation notes

The FM1QTUZ-120 is specified for panel-mount installations. Manufacturer data also lists panel, surface, DIN rail, or flush-mounted uses depending on panel design. Confirm enclosure rating and mounting provisions before installation.

• Mounting type: Panel mount (other mounting styles may be used where panel design allows)
• Installation should be performed by a qualified professional in accordance with local codes

Technical identifiers and packaging

Reference the model, UPC, and pack quantities when specifying or reordering to ensure catalog matching and purchasing accuracy.

• Model / SKU: FM1QTUZ-120
• UPC: 078275155671
• Unit weight: 0.15 lb
• Master pack quantity: 50 (master pack weight 7.5 lb)
• Pallet quantity: 3240 (pallet weight 486 lb)

Before You Order

Confirm the model number, UPC, voltage, amperage, mounting style, and device configuration before ordering.

• Verify FM1QTUZ-120 matches the circuit voltage (120V) and load current (21A).
• Confirm the SPDT contact arrangement and 24-hour, 15-minute schedule meet the application requirements.
• Check panel or enclosure compatibility for panel-mount installation.
