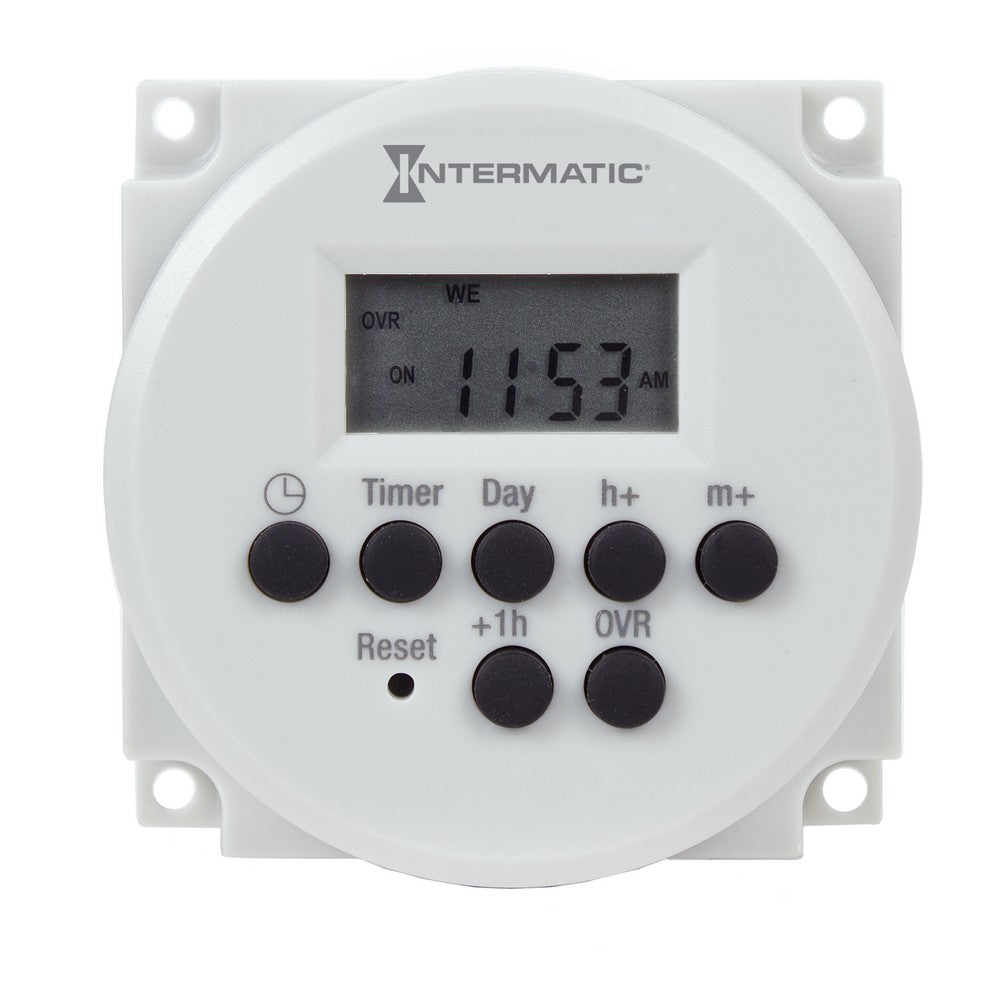

Intermatic 12/24 VDC 15 A Electronic Timer Module FM1D50-LV

Product Overview

The Intermatic FM1D50-LV is a panel‑mount electronic timer module used for scheduled electrical load control. It accepts 12 or 24 VDC control voltage, provides a single‑pole double‑throw (SPDT) output rated 15 A, and lists 50 setpoint programs in the product description.

Common applications shown for the product include lighting control, panel-mounted control assemblies, facility maintenance, and equipment scheduling. Unit weight is listed as 0.1 lb and the UPC is 078275156920.

Key Features

• Control voltage: 12/24 VDC
• Output rating: 15 A, SPDT
• Program capacity: 50 setpoint programs (product description lists 24‑hour or 7‑day modes)
• Panel‑mount installation
• Manufacturer model/SKU: FM1D50-LV; UPC 078275156920

Function and intended use

The FM1D50-LV schedules and switches electrical loads when installed in a panel assembly. The product description lists uses such as lighting control, equipment scheduling, panel-mounted control assemblies, and timer replacements.

• Panel‑mount electronic timer module
• Applications listed include lighting control and facility maintenance

Electrical ratings and output

The product data lists control voltage as 12/24 VDC and an output rating of 15 A. The switch configuration is identified as SPDT (single‑pole double‑throw) in the product description.

• Control voltage: 12/24 VDC (as listed)
• Output rating: 15 A (as listed)
• Switch configuration: SPDT (as listed)

Programs, switching and mounting

Product information lists 50 setpoint programs and indicates support for 24‑hour or 7‑day modes in the original description. The module is specified for panel‑mount installation.

• Program capacity: 50 setpoint programs (per product description)
• Modes: 24‑hour or 7‑day (per product description)
• Mounting type: panel mount

Ordering and pre‑installation checks

Confirm the FM1D50-LV model number and electrical ratings against your requirements before ordering. Selection and installation should be performed by a qualified professional in accordance with local codes and the authority having jurisdiction.

• Manufacturer model/SKU: FM1D50-LV (UPC 078275156920)
• Unit weight: 0.1 lb
• Verify control voltage (12/24 VDC), 15 A output rating, SPDT switching, and panel‑mount suitability

Before You Order

Confirm the model number and electrical ratings for your application before ordering; installation should be performed by a qualified professional following local codes.

• Verify control voltage (12 or 24 VDC) and that the 15 A rating meets your load requirements
• Confirm SPDT switching and panel‑mount fit for your assembly
• Ensure the FM1D50-LV (UPC 078275156920) is the correct SKU for replacements or new installations

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Intermatic 12/24 VDC 15 A Electronic Timer Module FM1D50-LV. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
