Intermatic 12/24 VDC 15 A Electronic Timer Module FM1D20E-LV

Product Overview

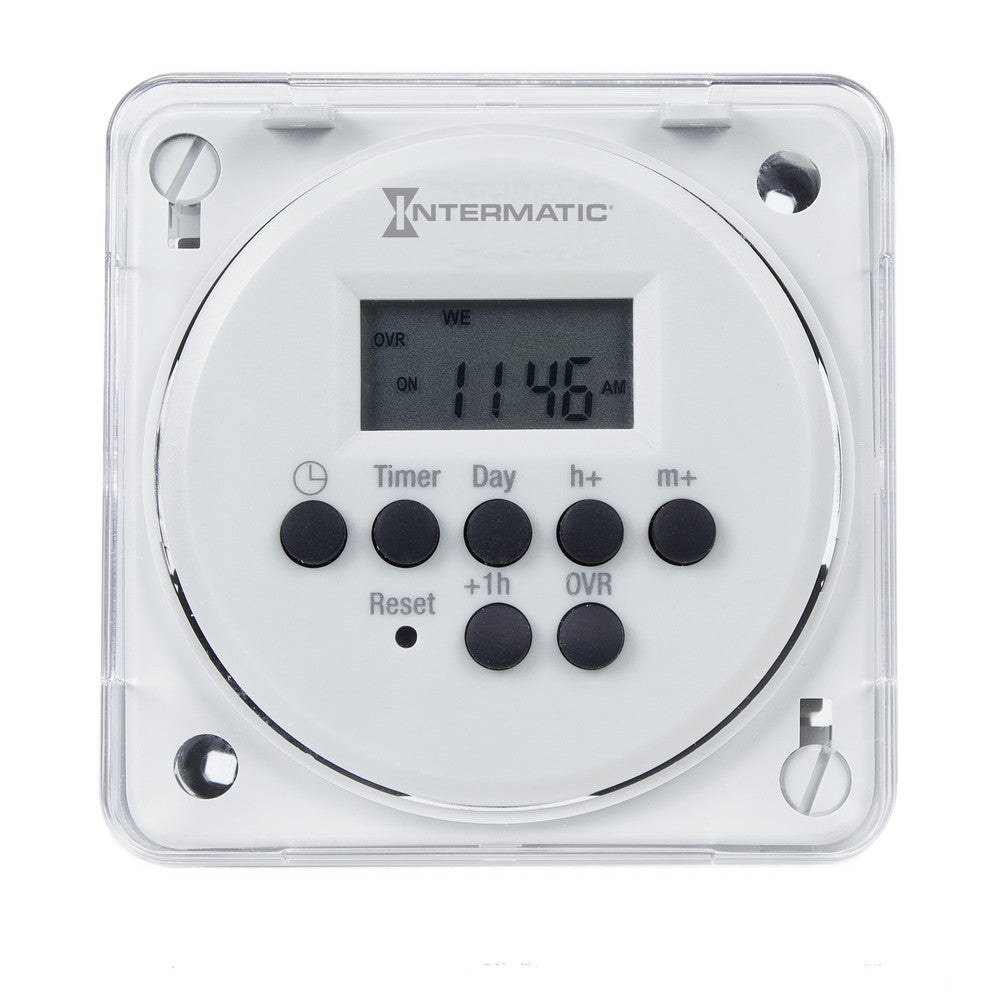

The Intermatic FM1D20E-LV is a flush‑mount electronic timer module for scheduled switching. It accepts 12 or 24 VDC control voltage, provides an SPDT switching output rated at 15 A, and holds up to 20 setpoint programs for 24‑hour or 7‑day scheduling.

Common uses noted for this model include lighting control, panel‑mounted control assemblies, equipment scheduling, and contractor replacement stock where a low‑voltage timer interface is required.

Key Features

• Control voltage: 12/24 VDC
• Output rating: 15 A, SPDT
• Program capacity: 20 setpoint programs (24‑hour or 7‑day scheduling)
• Mounting: flush mount
• UPC: 078275156869; Manufacturer P/N: FM1D20E-LV
• Unit weight: 0.529 lb

Function and intended use

The FM1D20E-LV provides timed switching of circuits controlled by a low‑voltage (12/24 VDC) input. It supports both 24‑hour and 7‑day scheduling and is intended for flush‑mount installation in control locations or panel assemblies.

• Automates on/off switching based on programmed setpoints
• Intended for applications that require a low‑voltage timer interface

Electrical and switching specifications

Use this module where a 12 or 24 VDC control input is required and where the controlled load does not exceed the module's 15 A output rating.

• Control voltage: 12/24 VDC
• Switch configuration: SPDT (single‑pole, double‑throw)
• Output current rating: 15 A

Programming and schedule capacity

The FM1D20E-LV stores up to 20 setpoint programs for creating 24‑hour or 7‑day schedules. This allows multiple on/off events per day as part of routine facility and lighting control.

• 20 setpoint programs
• Supports 24‑hour and 7‑day scheduling modes

Mounting and installation considerations

This unit is specified as a flush‑mount module. Confirm physical dimensions and panel cut‑out compatibility prior to installation. Electrical selection and installation should be performed by a qualified professional in accordance with local codes and the authority having jurisdiction.

• Mounting type: Flush mount
• Unit weight: 0.529 lb
• Confirm model number, voltage, amperage, and mounting compatibility before installation

Typical applications

This module is commonly used where scheduled control of circuits is required. Documented uses include replacing timer modules, inclusion in panel‑mounted control assemblies, and scheduled control of lighting or other equipment.

• Timer module replacement
• Panel‑mounted control assemblies
• Facility maintenance and contractor stock
• Lighting and equipment scheduling

Before You Order

Verify the FM1D20E-LV model number, required control voltage (12 or 24 VDC), and that the 15 A output rating matches your load prior to ordering.

• Confirm the module matches your project requirements and panel cut‑out for flush mounting
• Have a qualified professional install the product in accordance with local codes

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Intermatic 12/24 VDC 15 A Electronic Timer Module FM1D20E-LV. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
