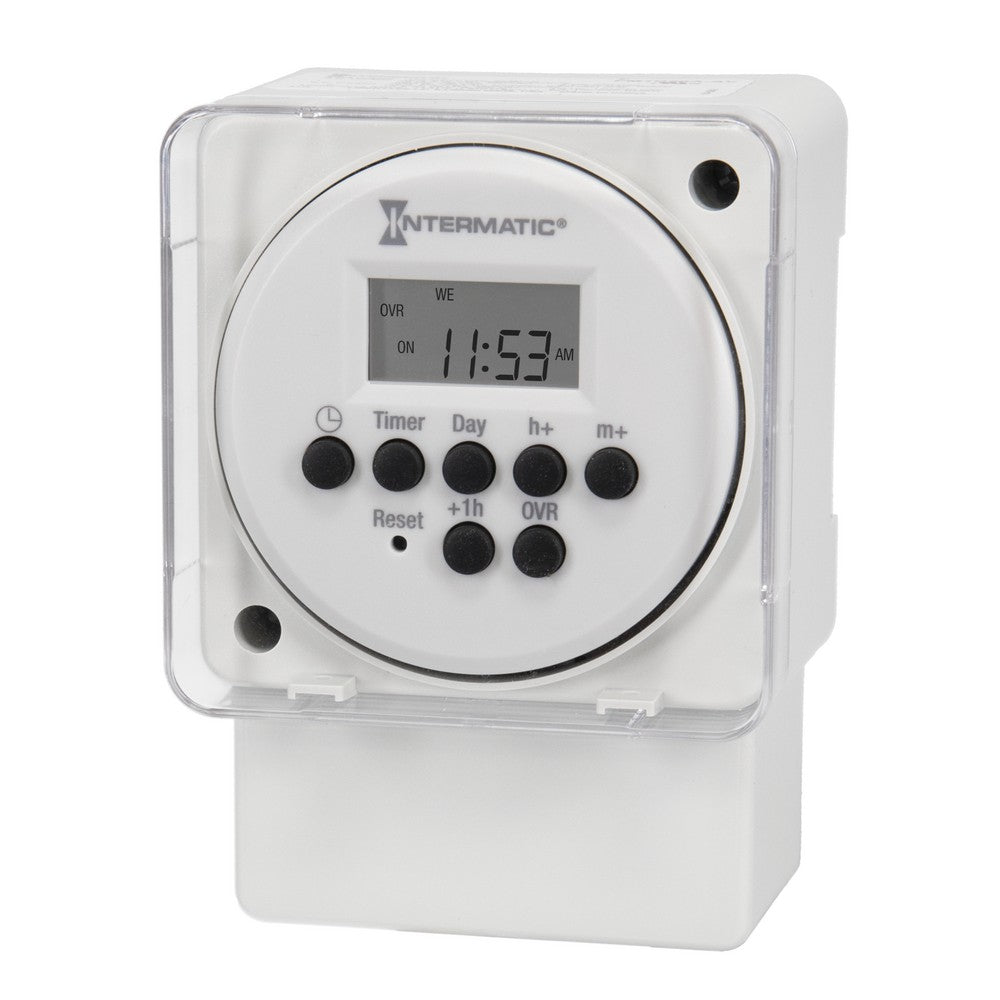

Intermatic 120-277 V 15A 24-Hour 20 Setpoint Programs Electronic Surface/DIN Rail Timer Module FM1D20A-AV

Product Overview

The Intermatic FM1D20A-AV is an electronic surface/DIN-rail timer module for panel, surface, DIN rail, or flush-mounted timing control. It provides multi-day scheduling with up to 20 setpoint programs and an SPDT contact configuration.

Key electrical ratings: 120–277 V voltage range and 15A switching capacity. UPC 078275156791 is provided for receiving and catalog use.

Key Features

• Model: FM1D20A-AV (Intermatic)
• Voltage: 120–277 V
• Amperage: 15A
• Schedule: 24-Hour, 7-Day operation with 20 setpoint programs
• Switching configuration: SPDT
• Mounting: Surface or DIN rail mount
• Unit weight: 0.529 lb; UPC: 078275156791

What this timer does

The FM1D20A-AV provides scheduled load control for lighting and equipment by switching an SPDT contact according to programmed time events. It supports 24-hour and 7-day scheduling patterns and is intended for panel, surface, DIN rail, or flush-mounted installations where the listed electrical ratings and contact configuration match the control design.

• Applications: scheduled load control, lighting control, equipment control, commercial and facility maintenance, replacement projects

Electrical ratings and switching capacity

Confirm the electrical ratings of the FM1D20A-AV against your load requirements before specifying or installing the device.

• Voltage range: 120–277 V
• Amperage (switching capacity): 15A
• Contact configuration: SPDT (single pole, double throw)

Scheduling and program capacity

The device supports both 24-hour and 7-day scheduling modes and accommodates up to 20 setpoint programs, enabling multiple on/off events across daily and weekly patterns.

• Program capacity: 20 setpoint programs
• Schedule types: 24-hour and 7-day

Mounting and installation form factor

The FM1D20A-AV is designed for surface or DIN rail mounting and can be integrated into control panels or mounted directly to DIN rails where compatible mechanical clearances and enclosure ratings are met.

• Mounting type: Surface / DIN rail mount
• Intended installation: panel, surface, DIN rail, or flush-mounted timing control

Technical and catalog details

Use these catalog-level details for procurement, receiving, and inventory matching.

• Brand: Intermatic
• Model / SKU: FM1D20A-AV
• UPC: 078275156791
• Unit weight: 0.529 lb
• Product category code: GE
• Manufacturer part number: FM1D20A-AV

Before You Order

Confirm the model number, UPC, voltage, amperage, mounting style, and contact configuration before ordering or specifying. Electrical products should be selected and installed by a qualified professional in accordance with the application and authority having jurisdiction.

• Verify the FM1D20A-AV matches required voltage (120–277 V) and switching load (15A).
• Confirm surface or DIN rail mounting is appropriate for your enclosure and panel layout.
• Check the SPDT contact meets control logic and wiring needs.
• Confirm the quantity and model number required for replacements or new installations.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Intermatic 120-277 V 15A 24-Hour 20 Setpoint Programs Electronic Surface/DIN Rail Timer Module FM1D20A-AV. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
