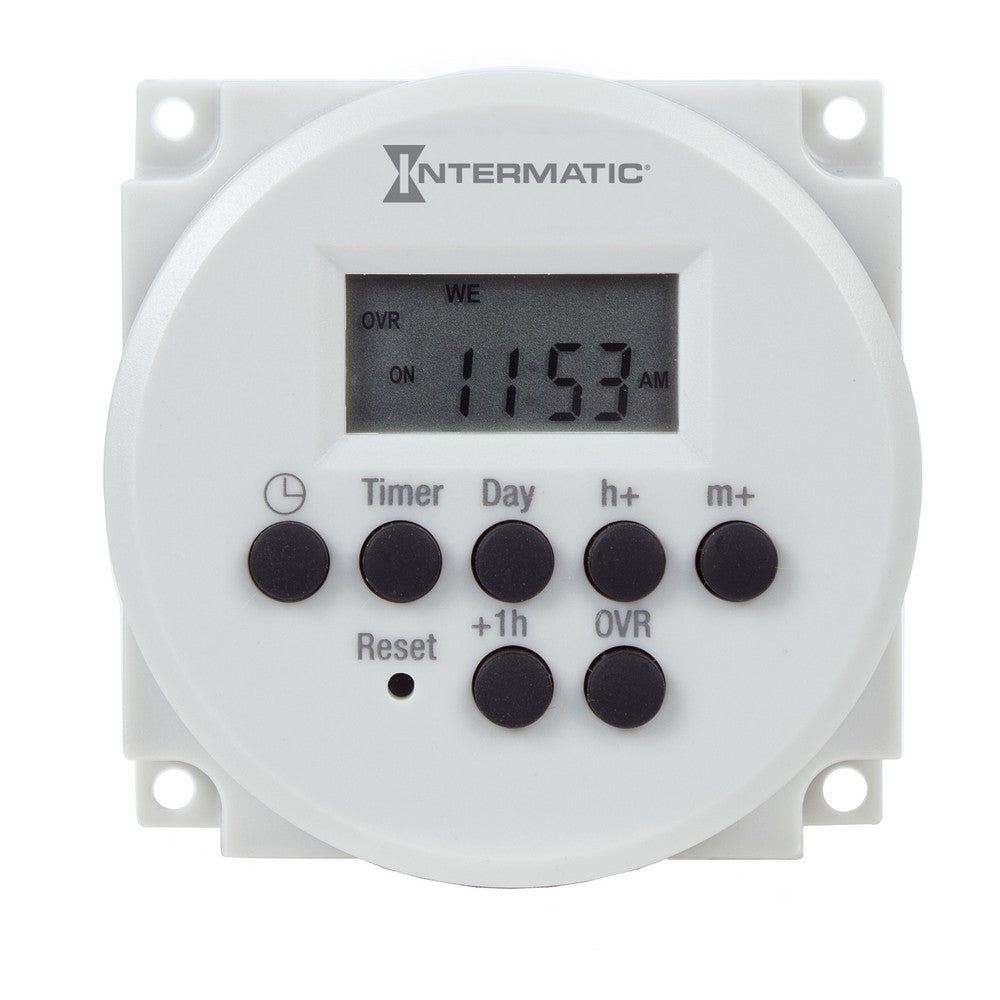

Intermatic 120-277 V 15A 24-Hour 20 Setpoint Programs Electronic Surface/DIN Rail Timer Module FM1D20-AV-U

Product Overview

The Intermatic FM1D20-AV-U is an electronic timer module for scheduled load control. It is rated 120–277 V and 15 A, with an SPDT switching configuration.

The timer supports 24-hour and 7-day schedules with 20 setpoint programs. Its listed mounting options are surface and DIN rail.

Key Features

• 24-hour and 7-day scheduling with 20 setpoint programs
• 120–277 V rating and 15 A rating
• SPDT switching configuration
• Surface or DIN rail mounting

Scheduling and Setpoint Capacity

The FM1D20-AV-U supports 24-hour and 7-day scheduling and has capacity for 20 setpoint programs. These schedule details help identify the timer when planning scheduled load control.

• Schedule detail: 24-hour and 7-day
• Program capacity: 20 setpoint programs

Electrical Ratings and Switching

This Intermatic timer module is rated for 120–277 V and 15 A, with an SPDT switching configuration. Confirm that these ratings and the contact configuration match the intended control panel and load requirements.

Mounting and Scheduled Load Control

The listed mounting options for the FM1D20-AV-U are surface and DIN rail. Its stated function is scheduled load control; the catalog also lists lighting and equipment control among its applications.

• Mounting: surface or DIN rail
• Listed applications: scheduled load, lighting, and equipment control

Before You Order

Confirm that the FM1D20-AV-U model, voltage and amperage ratings, SPDT configuration, and mounting option suit the intended control panel and application.
