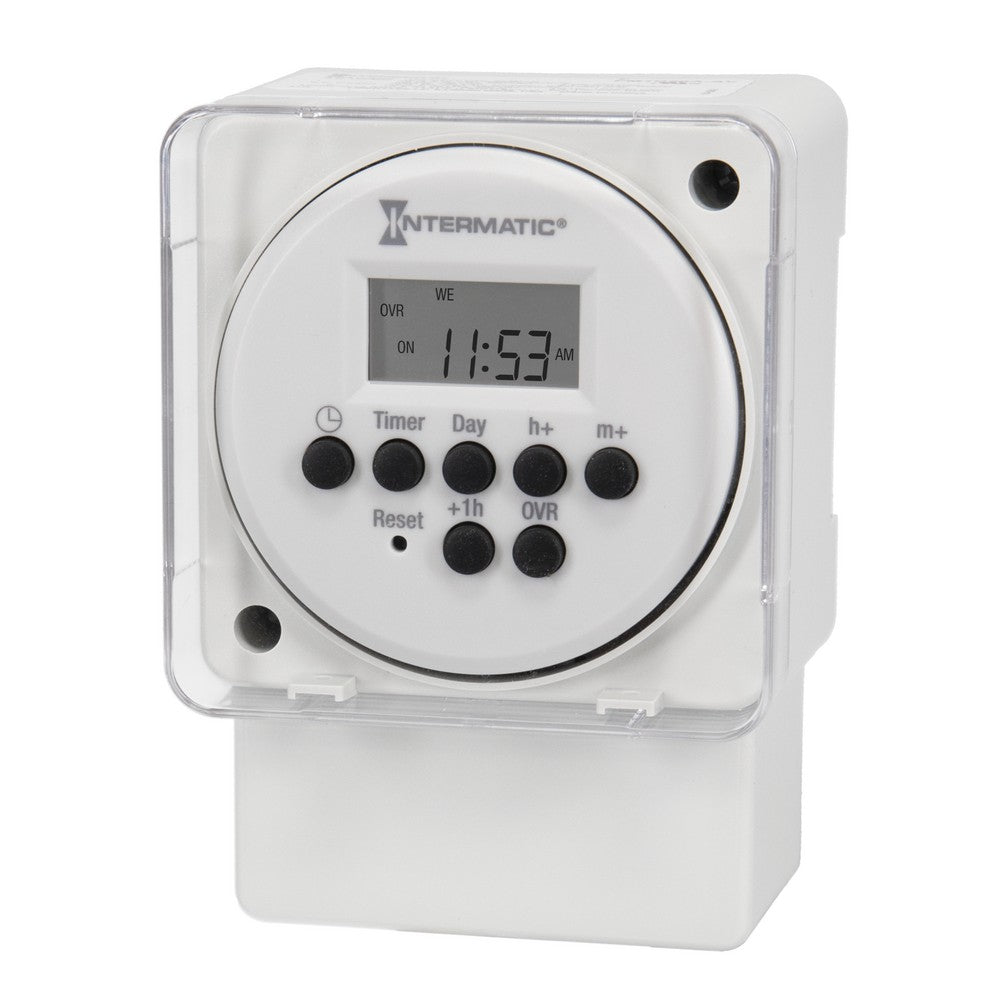

Intermatic 120-277V 15A 24-Hour 14 Setpoint Programs Electronic Surface/DIN Rail Timer Module FM1D14A-AV

Product Overview

The Intermatic FM1D14A-AV is an electronic timer module designed for surface or DIN-rail mounting (panel or flush mounting where compatible). It provides 24-hour and 7-day scheduling with up to 14 setpoint programs and uses an SPDT contact.

Manufacturer-listed ratings include 120–277V input, 15A switching, UPC 078275143166, and unit weight 0.529 lb. Typical uses listed in the product data include scheduled load control, lighting control, and equipment control.

Key Features

• Model: FM1D14A-AV (Intermatic part number / SKU)
• Voltage rating: 120–277V
• Amperage (switching): 15A
• Schedule capability: 24-Hour and 7-Day operation with up to 14 setpoint programs
• Switching configuration: SPDT (single-pole double-throw)
• Mounting: Surface or DIN-rail mount
• UPC: 078275143166

What this timer does

The FM1D14A-AV is an electronic timing control module that switches loads on a programmable schedule. It supports daily and weekly schedules with programmable on/off setpoints and uses an SPDT contact for switching.

• Designed for scheduled load control, lighting control, and equipment control (as listed in product data)
• Provided for replacement and specification workflows using the Intermatic part number

Electrical ratings and switching

Use this model where the supply and switched load fall within the listed electrical ratings.

• Voltage: 120–277V (manufacturer-listed range)
• Amperage (switching): 15A
• Contact configuration: SPDT (single-pole double-throw)

Programming and schedule capacity

The module provides 24-hour and 7-day scheduling with a finite number of programmable events suitable for typical lighting and load control scenarios.

• Schedule type: 24-Hour, 7-Day
• Program capacity: 14 setpoint programs

Mounting and installation form factor

FM1D14A-AV is listed for surface or DIN-rail mounting. It may be installed in panel or flush-mounted applications where the enclosure, wiring, and local codes permit.

• Mounting types listed: Surface / DIN rail
• Unit weight: 0.529 lb

Applications listed in product data

The product data lists typical applications where scheduled switching is used.

• Scheduled load control
• Lighting control
• Equipment control
• Commercial buildings and facility maintenance
• Replacement projects matching the Intermatic part number

Ordering and model verification

Confirm the exact model and listed ratings before ordering or installation to ensure compatibility with your system and applicable codes.

• Model / SKU: FM1D14A-AV
• UPC: 078275143166
• Manufacturer Part Number: FM1D14A-AV
• Verify voltage, amperage, mounting style, and contact configuration before specifying or installing

Before You Order

Confirm the model number and quantity required before ordering. Electrical products should be selected and installed by a qualified professional in accordance with the authority having jurisdiction.

• Verify voltage (120–277V) and amperage (15A) compatibility with your load
• Confirm mounting style (surface or DIN rail) and enclosure requirements
• Use UPC 078275143166 and part number FM1D14A-AV for exact replacement or inventory matching

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Intermatic 120-277V 15A 24-Hour 14 Setpoint Programs Electronic Surface/DIN Rail Timer Module FM1D14A-AV. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
