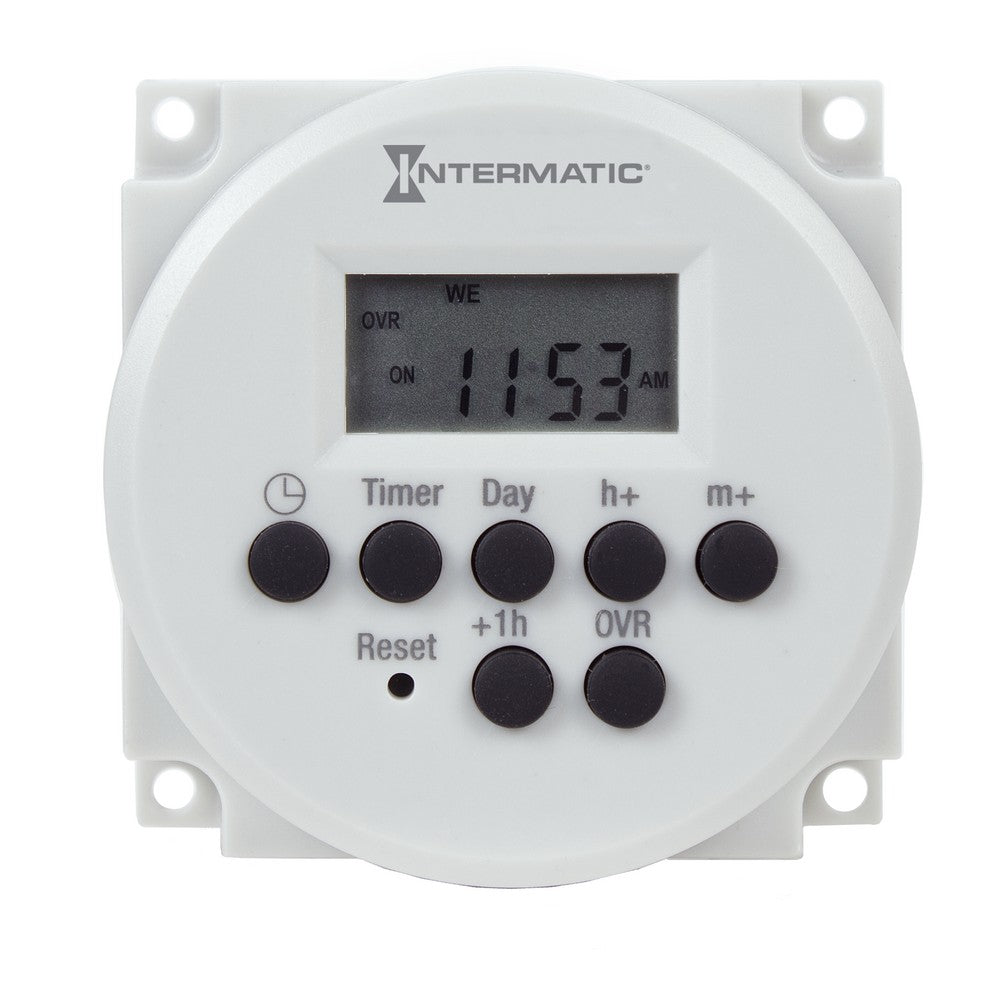

Intermatic 12/24 VDC 15A 24-Hour 14 Setpoint Programs Electronic Panel Mount Timer Module FM1D14-LV-U

Product Overview

The Intermatic FM1D14-LV-U is an electronic panel-mount timer module for scheduled load and lighting control.

The module is listed with control voltage options of 12/24 VDC and 24 VAC, a 15A switching rating, SPDT contact configuration, and scheduling support for 24-hour and 7-day modes with up to 14 setpoint programs.

Key Features

• Control voltage: 12/24 VDC and 24 VAC (as listed)
• Switching capacity: 15A (as listed)
• Program capacity: 14 setpoint programs; supports 24-hour and 7-day scheduling
• Contact configuration: SPDT
• Panel-mount form factor
• UPC: 078275156951

What this timer does

The FM1D14-LV-U provides timed switching for scheduled load control and lighting. It supports day and time-based control using up to 14 user-set programs and offers 24-hour and 7-day scheduling modes.

• Used for scheduled load control, lighting control, equipment control, and replacement projects (as listed)
• Applications listed include commercial buildings and facility maintenance

Voltage and amperage ratings

The product listing shows control-voltage options of 12/24 VDC and 24 VAC. The listed switching rating is 15A. Confirm these ratings match your application before installation.

• Control voltage (listed): 12/24 VDC and 24 VAC
• Listed maximum switching current: 15A
• Contact type (listed): SPDT

Programming and schedule capacity

The module is listed with scheduling modes for 24-hour and 7-day operation and a program capacity of 14 setpoint programs, enabling multiple on/off events within those schedules.

• Schedule types (listed): 24-hour and 7-day
• Program capacity (listed): 14 setpoint programs

Mounting and physical installation

This item is listed as a panel-mount timer module. Verify physical compatibility with your panel cutout, enclosure, and mounting requirements prior to ordering.

• Mounting type (listed): Panel mount
• Unit weight (listed): 0.1 lb

Key technical specifications

Use these listed values to confirm compatibility with your system and applicable codes.

• Model / SKU: FM1D14-LV-U
• Brand: Intermatic
• Voltage (listed): 12/24 VDC, 24 VAC
• Amperage (listed): 15A
• Schedule / Interval (listed): 24-Hour, 7-Day
• Program Capacity (listed): 14 setpoint programs
• Switching Configuration (listed): SPDT
• UPC: 078275156951
• Product Category Code: GE

Before You Order

Confirm the model number, control voltage, amperage rating, mounting style, and contact configuration before ordering. Electrical products should be selected and installed by a qualified professional in accordance with applicable codes and the authority having jurisdiction.

• Verify FM1D14-LV-U matches your panel cutout and wiring scheme
• Confirm 15A switching capacity is suitable for your load
• Match control voltage to your control circuit (12/24 VDC or 24 VAC)
• Provide UPC 078275156951 when recording or reordering

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Intermatic 12/24 VDC 15A 24-Hour 14 Setpoint Programs Electronic Panel Mount Timer Module FM1D14-LV-U. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
