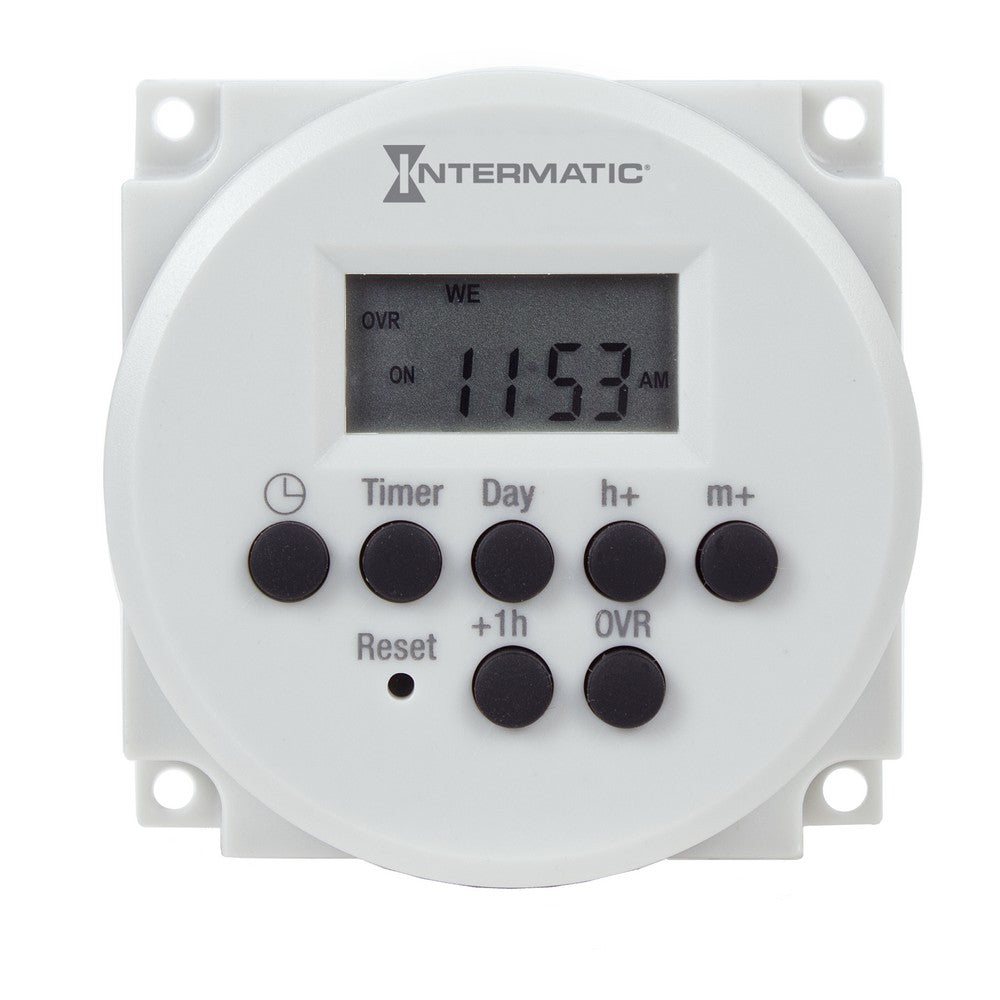

Intermatic 120-277V 15A 24-Hour 14 Setpoint Programs Electronic Panel Mount Timer Module FM1D14-AV-U

Product Overview

The Intermatic FM1D14-AV-U is an electronic panel-mount timer module for timed load control in panel, surface, DIN rail, or flush-mounted installations when compatible with the panel design.

Rated for 120–277V operation with 15A switching capacity, SPDT contacts, and scheduling capacity for 24-hour/7-day operation using up to 14 setpoint programs.

Key Features

• Model: FM1D14-AV-U (Intermatic)
• Voltage: 120–277V
• Amperage: 15A
• Schedule: 24-hour, 7-day operation with 14 setpoint programs
• Switching: SPDT contact configuration
• Mounting: Panel mount
• UPC: 078275142770

What this timer does

The FM1D14-AV-U provides scheduled on/off control for electrical loads using electronic time-based programs. It supports daily and weekly scheduling with capacity for 14 setpoint programs to define timed intervals across a 24-hour/7-day cycle.

• 14 setpoint programs for scheduling events throughout the day/week
• Supports 24-hour and 7-day scheduling modes

Electrical ratings and switching

Electrical ratings listed for this module are 120–277 volts and 15 amps switching capacity. The switching contact configuration is SPDT.

• Voltage: 120–277V
• Amperage: 15A
• Contact configuration: SPDT

Mounting and installation context

This product is specified as a panel-mount timer module and is intended for integration into control panels or similar enclosures where panel-mount modules are used. Confirm enclosure suitability and mounting requirements for your installation.

• Mounting type: Panel mount
• Intended for integration into control panels or compatible enclosures

Typical applications

Common uses include scheduled load control and automated switching in commercial and facility settings where timed control of lighting or equipment is required.

• Scheduled load control
• Lighting control
• Equipment control
• Commercial buildings and facility maintenance
• Replacement projects matching the same model and ratings

Ordering and identification

Confirm the exact model number and basic specifications before purchase to ensure compatibility with your control panel design and application requirements.

• Model / SKU: FM1D14-AV-U
• UPC: 078275142770
• Brand: Intermatic

Before You Order

Confirm the model number, voltage, amperage, mounting style, and contact configuration match your application. Electrical devices should be selected and installed by a qualified professional in accordance with local codes and the authority having jurisdiction.

• Verify FM1D14-AV-U is the correct SKU for your panel or replacement project
• Confirm 120–277V and 15A are appropriate for the load and panel wiring
• Confirm panel mounting and enclosure compatibility prior to installation

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Intermatic 120-277V 15A 24-Hour 14 Setpoint Programs Electronic Panel Mount Timer Module FM1D14-AV-U. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
