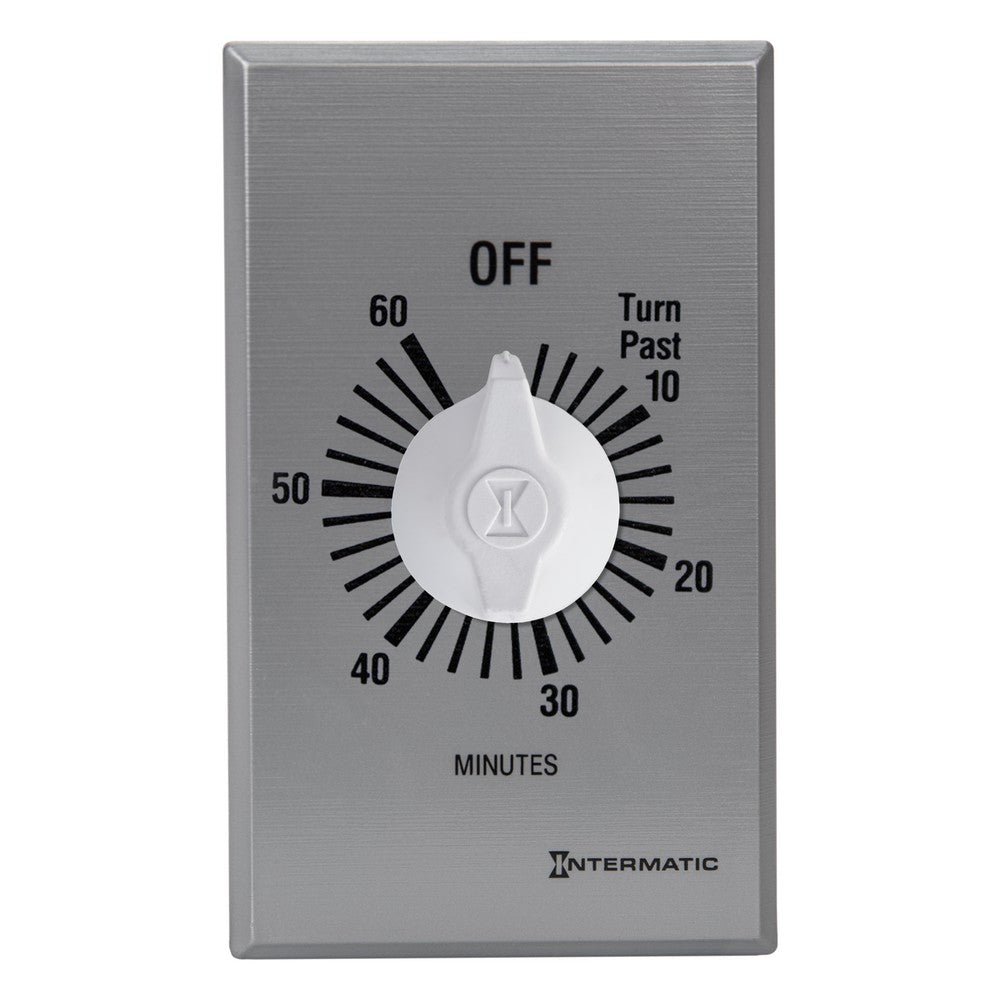

Intermatic 125-277 VAC 60 Minute Max 50/60 HZ Silver Commercial Spring Wound Countdown Timer FF360M

Product Overview

The Intermatic FF360M is a commercial spring-wound countdown timer for timed load shutoff where a mechanical countdown is required.

Rated 125–277 VAC and 50/60 Hz with a maximum 60-minute timing interval, SPDT switching configuration, silver finish, and no hold function.

Key Features

• Model: FF360M (Manufacturer Part Number and SKU)
• Voltage: 125–277 VAC
• Frequency: 50/60 Hz
• Maximum interval: 60 minutes (spring-wound countdown)
• Switching configuration: SPDT (single pole, double throw)
• No hold function
• UPC: 078275069282

What this timer does

The FF360M provides a mechanical countdown for timed load shutoff. The spring-wound mechanism advances a timing interval up to 60 minutes and actuates the SPDT output at the end of the interval.

• Mechanical (spring-wound) countdown mechanism
• Used to switch loads via the SPDT output at the end of the timing interval

Electrical ratings and switching

Use the FF360M where the listed voltage and frequency match the installation requirements. Confirm load compatibility with the SPDT switching configuration.

• Voltage: 125–277 VAC
• Frequency: 50/60 Hz
• Switching configuration: SPDT
• Unit ships without a hold function

Typical applications

The FF360M is suitable for contractor and replacement applications that require a mechanical countdown timer.

• Timed load control
• Lighting control
• Fan control
• Equipment scheduling and replacement projects

Physical attributes

The FF360M has a silver finish. Use the listed weights and pack quantities for shipping and inventory planning.

• Finish: Silver
• Unit weight: 0.299 lb
• Master pack quantity: 6 (master pack weight: 1.794 lb)
• Pallet quantity: 1200 (pallet weight: 358.8 lb)

Ordering and installation notes

Confirm model number, UPC, voltage and switching configuration before ordering. Electrical products should be selected and installed by a qualified professional in accordance with applicable codes.

• Manufacturer part number / SKU: FF360M
• UPC: 078275069282
• Product category code: FD
• Verify amperage, mounting style and enclosure rating for your installation where applicable

Before You Order

Confirm the model number and quantity before ordering and verify that listed voltage and switching configuration meet your needs.

• Electrical products must be selected and installed by a qualified professional
• Verify amperage, mounting style and enclosure rating where applicable
• Use UPC 078275069282 and model FF360M for reorder and receiving accuracy

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Intermatic 125-277 VAC 60 Minute Max 50/60 HZ Silver Commercial Spring Wound Countdown Timer FF360M. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
