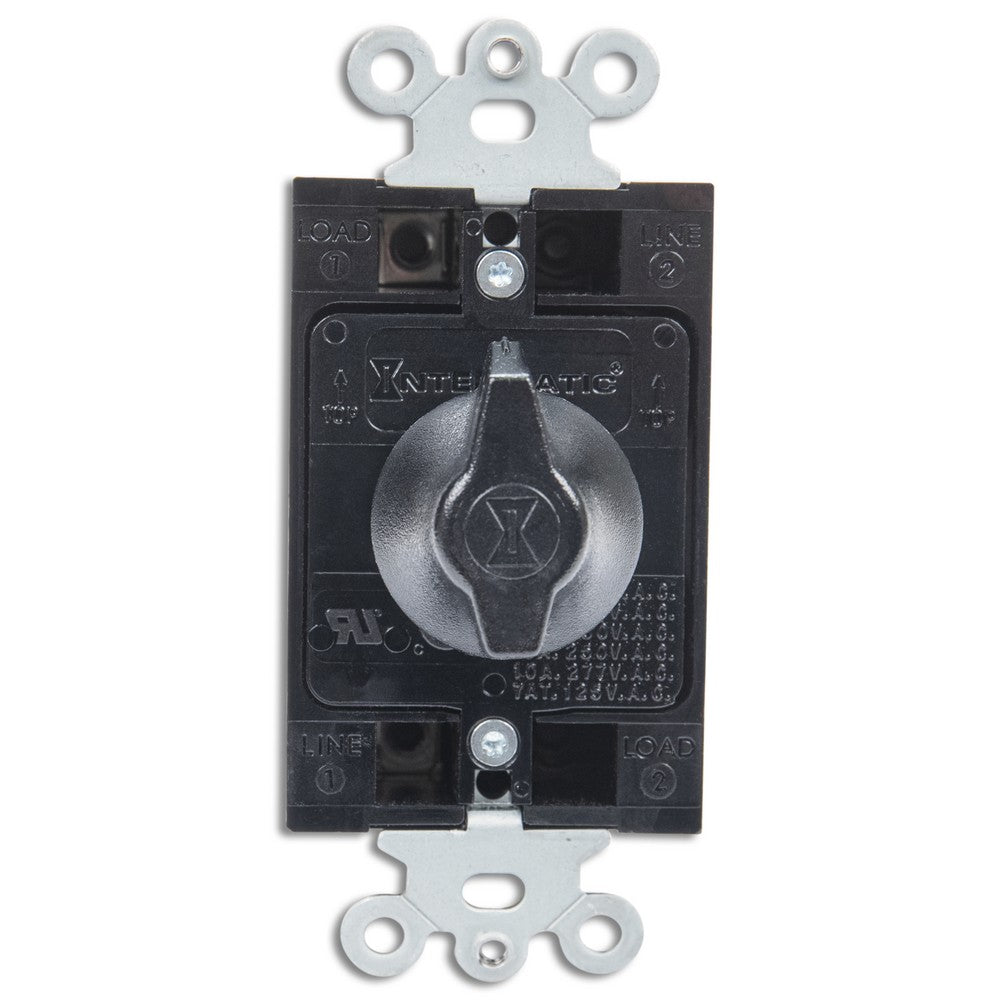

Intermatic 125-277 VAC 12 Hour Max 50/60 Hz Spring Wound Countdown Timer Mechanism FF12H10

Product Overview

The Intermatic FF12H10 is a spring-wound countdown timer mechanism for scheduled load control. It is identified as a mechanism-only model, without a hold function.

This product is listed with SPST switching and a maximum timer duration of 12 hours. Match the model and electrical ratings to the requirements of the intended application.

Key Features

• Spring-wound countdown timer mechanism
• 12-hour maximum timer duration
• SPST switching configuration
• Without hold function

Timer Function and Switching Configuration

The FF12H10 is a spring-wound countdown timer mechanism with SPST switching. It is specified without a hold function, so it is distinct from timer models that include that feature.

Electrical Ratings and Duration

The listed electrical ratings are 125-277 VAC and 50/60 Hz, with a maximum timer duration of 12 hours. Confirm these values match the requirements of the equipment and application before selecting the mechanism.

Before You Order

Confirm that FF12H10 is the required model and that its listed voltage, frequency, switching configuration, and timer duration suit the intended application.

• Confirm the model number and quantity required before ordering.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Intermatic 125-277 VAC 12 Hour Max 50/60 Hz Spring Wound Countdown Timer Mechanism FF12H10. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
