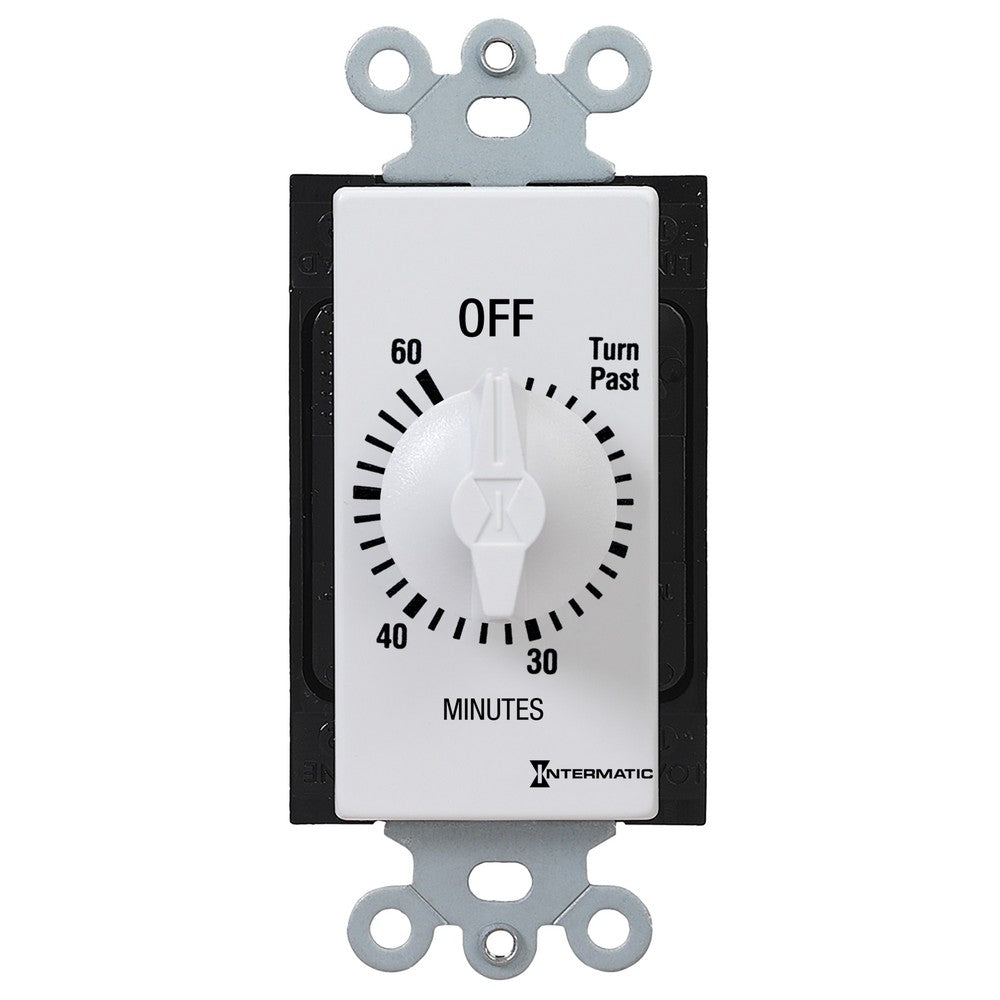

Intermatic 125-277 VAC 60 Minute Max 50/60 Hz White Decorator Spring Wound Countdown Timer FD60MWC

Product Overview

The Intermatic FD60MWC is a decorator-style spring-wound countdown timer rated 125–277 VAC and 50/60 Hz with a maximum timing duration of 60 minutes. It provides SPST switching and is finished in white.

Designed for scheduled load control, the FD60MWC is used for lighting, fans, motors, appliances and other equipment where a manual countdown timer is required. Unit weight is 0.299 lb and UPC 078275005068.

Key Features

• Voltage rating: 125–277 VAC
• Frequency: 50/60 Hz
• Timer duration: 60-minute maximum (spring-wound)
• Switching configuration: SPST (single pole, single throw)
• Finish: White decorator-style
• No hold function (Without Hold)
• Manufacturer model/SKU: FD60MWC; UPC: 078275005068

Function and intended uses

The FD60MWC is a manual spring-wound countdown timer in a decorator form factor intended for scheduled load control. It provides timed control for lighting, fans, motors, appliances and other equipment where an operator starts a timed run and the mechanism returns the circuit to off at the end of the cycle.

• Typical applications: scheduled load control, lighting control, fan control, equipment or facility maintenance, and replacement projects.
• Operation style: spring-wound countdown (no electrical timing source required).

Electrical ratings and switching

Use the FD60MWC where the line voltage and frequency match the product ratings.

• Voltage: 125–277 VAC
• Frequency: 50/60 Hz
• Switching configuration: SPST (single pole, single throw)
• No hold function provided (Without Hold)

Installation notes and compatibility reminders

Confirm model number FD60MWC, voltage requirements, device mounting style and local electrical code requirements before ordering or installing. Electrical devices should be selected and installed by a qualified professional or according to the authority having jurisdiction.

• Verify compatibility with the circuit's voltage and load type prior to installation.
• Confirm decorator-style fit for the intended wallplate and mounting box.
• FD60MWC is intended for applications where a non-electronic, spring-wound countdown is acceptable.

Key specifications

The following specifications summarize the manufacturer-listed attributes for this exact SKU.

• Brand: Intermatic
• Model / SKU: FD60MWC
• Product type: Decorator Spring Wound Countdown Timer
• Original product description: Spring Wound Countdown Timer, Decorator Style, 125–277 VAC, 50/60 Hz, SPST, 60 Minute Max, Without Hold, White
• Timer duration: 60 Minute Max
• Finish: White
• UPC: 078275005068
• Unit weight: 0.299 lb
• Master pack qty: 6; master pack weight: 1.794 lb; pallet qty: 576; pallet weight: 172.224 lb

Before You Order

Confirm the model number and quantity required before ordering. Verify voltage, mounting style and compatibility with the intended load and local code. Select and install electrical controls per applicable codes and by a qualified professional.

• Confirm FD60MWC is the correct SKU for the application and that 125–277 VAC and SPST switching meet load requirements.
• Verify decorator-style fit with existing wallplate and device box.
• For replacements, compare UPC 078275005068 or manufacturer part number FD60MWC to existing device labeling.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Intermatic 125-277 VAC 60 Minute Max 50/60 Hz White Decorator Spring Wound Countdown Timer FD60MWC. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
