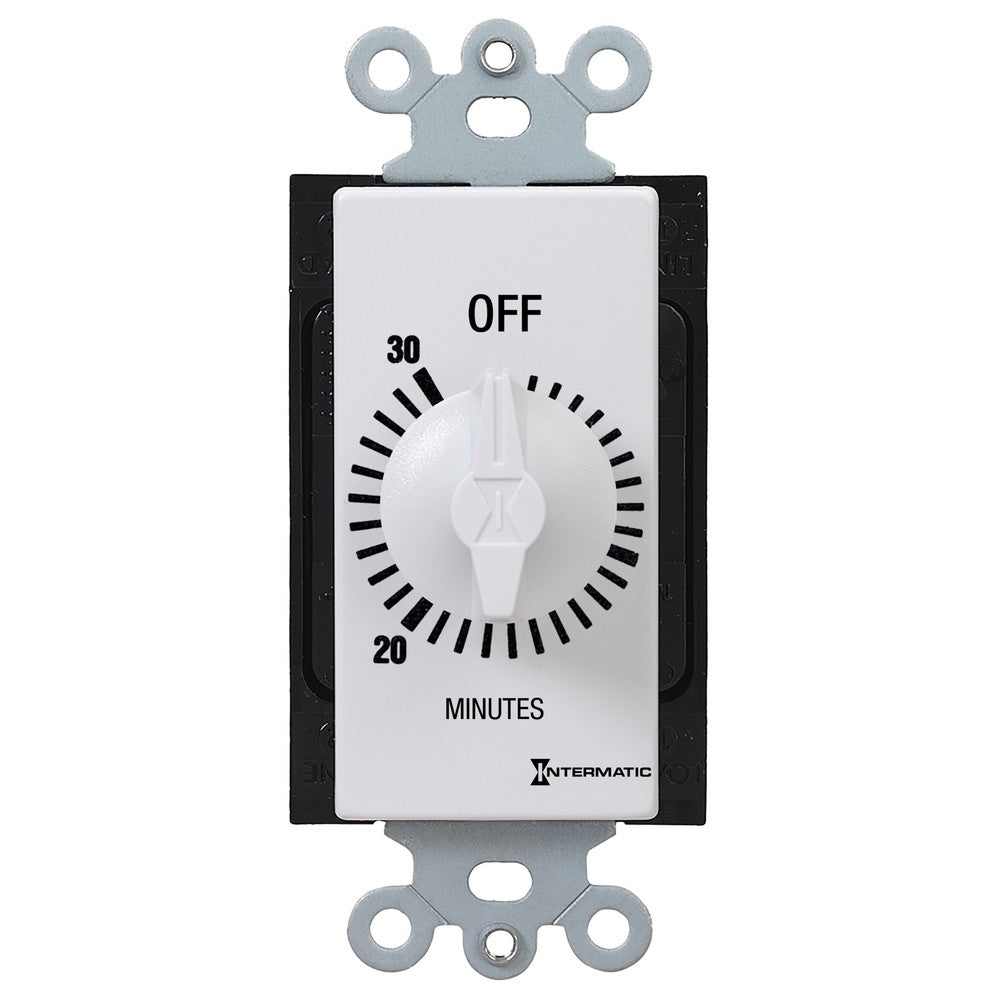

Intermatic 125-277 VAC 30 Minute Max 50/60 Hz White Decorator Spring Wound Countdown Timer FD30MWC

Product Overview

The Intermatic FD30MWC is a decorator-style spring wound countdown timer rated 125–277 VAC and 50/60 Hz with a maximum timing range of 30 minutes. It is configured as an SPST (single-pole, single-throw) switching device in a white finish.

Designed for scheduled load control of lighting, fans, motors, appliances or other equipment, the FD30MWC is a non-hold timer intended for in-wall or device-mount replacement projects and facility maintenance applications.

Key Features

• Voltage: 125–277 VAC, Frequency: 50/60 Hz
• Timer duration: 30 minute maximum (spring wound)
• Switching configuration: SPST (single-pole, single-throw)
• Finish: white decorator style
• No hold function (without hold)
• Manufacturer part number / SKU: FD30MWC; UPC: 078275005044
• Unit weight: 0.299 lb; master pack qty: 6

What this timer does

The FD30MWC is a spring-wound countdown timer in a decorator form factor that provides timed control of a single load circuit. Once the timer is started, it counts down up to 30 minutes and then opens or closes the SPST contact per the configured wiring to de-energize or energize the connected load.

• Intended for timed control of lighting, fans, motors, appliances or similar equipment
• Spring-wound mechanism — no external power required to run the timing motor beyond the line voltage for switching

Voltage and frequency requirements

Confirm that the installation supply matches the FD30MWC electrical ratings before selection or installation.

• Rated voltage: 125–277 VAC
• Rated frequency: 50/60 Hz

Switching and controls

The device uses a single-pole, single-throw (SPST) switching configuration and is supplied without a hold function. Use the SPST contact to switch a single hot/conductive leg per local wiring practice.

• Switching configuration: SPST
• Hold function: Without hold — timer returns to off after countdown

Typical applications

The FD30MWC is suitable for general timed control and replacement scenarios where a decorator-style mechanical countdown timer is required and the electrical ratings match the application.

• Scheduled load control
• Lighting control (indoor fixtures compatible with the voltage and load type)
• Fan control
• Equipment and appliance control
• Facility maintenance and replacement projects

Ordering and installation notes

Confirm the model number and electrical requirements for your project prior to ordering. The FD30MWC is identified by manufacturer part number FD30MWC and UPC 078275005044 for purchasing and inventory workflows.

• Manufacturer part number / SKU: FD30MWC
• UPC: 078275005044
• Unit weight: 0.299 lb; master pack qty: 6
• Electrical products should be selected and installed by a qualified professional in accordance with local code and authority having jurisdiction

Before You Order

Confirm the model number, supply voltage and frequency, load type and amperage, mounting style, and finish required for your installation before ordering. Electrical control devices should be selected and installed by a qualified professional in accordance with local codes and the authority having jurisdiction.

• Verify FD30MWC is the correct model for replacement or new installation
• Confirm supply voltage (125–277 VAC) and frequency (50/60 Hz) compatibility
• Check load type and switching needs for SPST configuration
• Confirm you do not require a hold function (the FD30MWC is without hold)

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Intermatic 125-277 VAC 30 Minute Max 50/60 Hz White Decorator Spring Wound Countdown Timer FD30MWC. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
