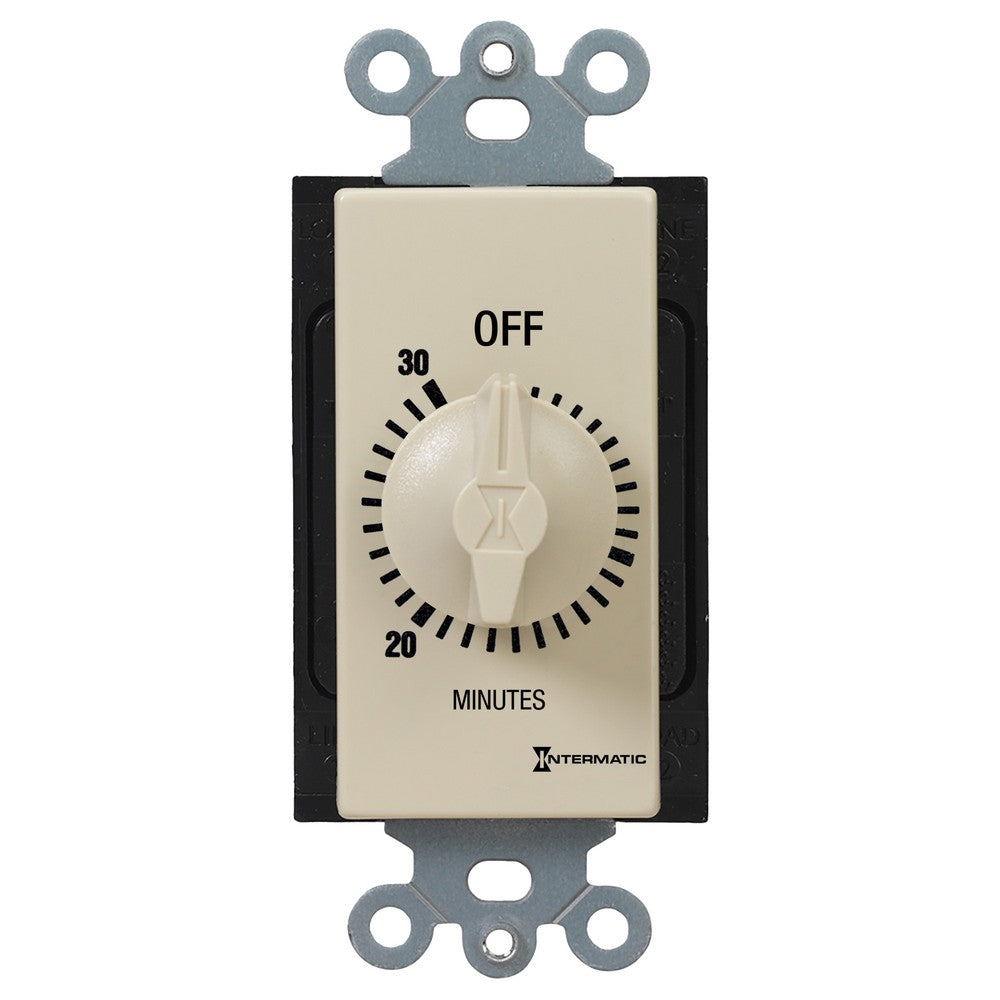

Intermatic 125-277 VAC 30 Minute Max 50/60 Hz Ivory Decorator Spring Wound Countdown Timer FD30MC

Product Overview

The Intermatic FD30MC is a decorator-style spring-wound countdown timer for timed load control with a mechanical countdown up to 30 minutes.

Rated 125–277 VAC, 50/60 Hz, SPST switching; ivory finish and without hold function.

Key Features

• Model: FD30MC
• Voltage rating: 125–277 VAC
• Frequency: 50/60 Hz
• Timer duration: 30 minute max (spring-wound)
• Switching configuration: SPST
• Finish: Ivory
• UPC: 078275005037

What this timer does

The FD30MC is a mechanical spring-wound countdown timer in a decorator-style form factor that provides a timed run interval up to 30 minutes to switch a load off after the countdown.

• Mechanical (spring-wound) countdown operation
• Single timed interval up to 30 minutes
• SPST switching for on/off control of one circuit

Electrical ratings and switching

Match the unit's electrical ratings to the installation. The FD30MC is specified for the voltage and frequency shown.

• Voltage: 125–277 VAC
• Frequency: 50/60 Hz
• Switching configuration: SPST

Common applications

Typical uses are timed load control where a mechanical countdown timer is appropriate.

• Scheduled load control
• Lighting control
• Fan control
• Short timed intervals for motors, appliances, or equipment
• Replacement projects and maintenance

Style, finish, and installation notes

The FD30MC has an ivory decorator-style finish and is listed without a hold function. Confirm mounting style and local code requirements before installation.

• Finish: Ivory (decorator style)
• Hold function: Without hold
• Confirm device configuration and mounting style as required for the installation

Ordering and product identification

Use the SKU and UPC to confirm exact product matching for reorders or replacements. Pack and weight information can assist with receiving and logistics.

• Manufacturer part number / SKU: FD30MC
• UPC: 078275005037
• Master pack quantity: 6; unit weight: 0.301 lb; master pack weight: 1.806 lb

Before You Order

Confirm the model number (FD30MC), voltage, and switching configuration match your installation. Electrical products should be selected and installed by a qualified professional in accordance with local codes.

• Verify the device finish and decorator mounting style for fit.
• Confirm the 125–277 VAC rating and SPST configuration are appropriate for the intended load.
• Use the UPC (078275005037) when receiving or reordering to ensure a match.
